Description

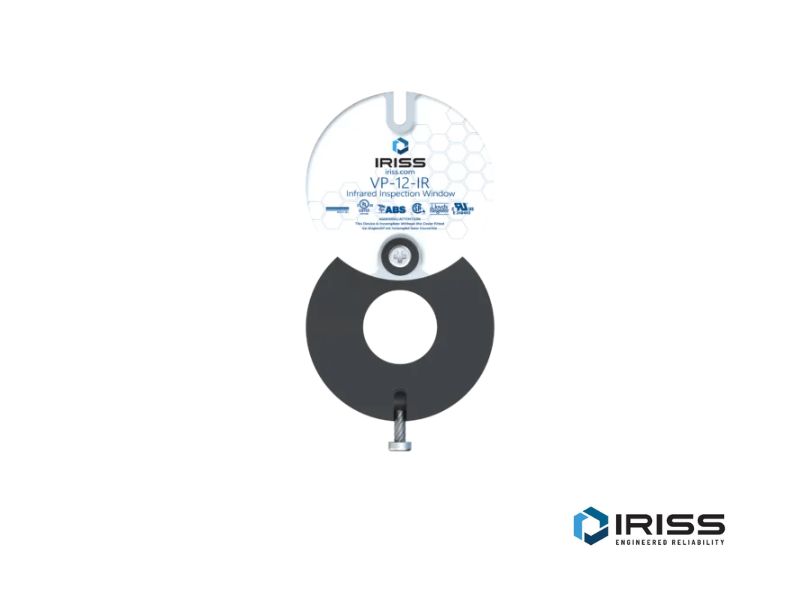

IRISS VP-12-IR Compact Infrared Window
The compact IRISS VP-12-IR infrared window allows for thermographic inspection of electrical panels without opening them, with the panel closed and the equipment energized, thereby reducing the technician's exposure to electric arcs.
Its 12-mm field of view and 6.5-cm outer diameter make it suitable for confined spaces and for thermal cameras with small, wide-angle lenses. The Poly-View lens is transmissive in the mid- and long-infrared, ultraviolet, and visible spectrums.
Main features
- 12 mm field of view in a body just 6.5 cm in diameter.
- IP67 / NEMA 6 protection rating, open or closed.
- Poly-View polymeric optical material, compliant with UL 746, transmitting mid- and long-wave IR, UV, and visible light.
- UL 94 5VA-rated nylon housing suitable for electrical panels, aluminum cover, and 316 stainless steel fasteners.
- Automatic grounding with no operating voltage limit.
- Unconditional lifetime manufacturer's warranty.
Common applications
- Thermographic inspection of switchboards and cells with the panel closed
- Motor Control Centers (MCCs) and Distribution Panels
- Predictive Maintenance for Medium- and High-Voltage Systems
- Inspection Points in Confined Spaces
Compatibility
Compatible with mid- and long-wave infrared thermal imaging cameras, especially those with small, wide-angle lenses. It also supports visual and ultraviolet inspection.
REF: VP-12-IR
