Description

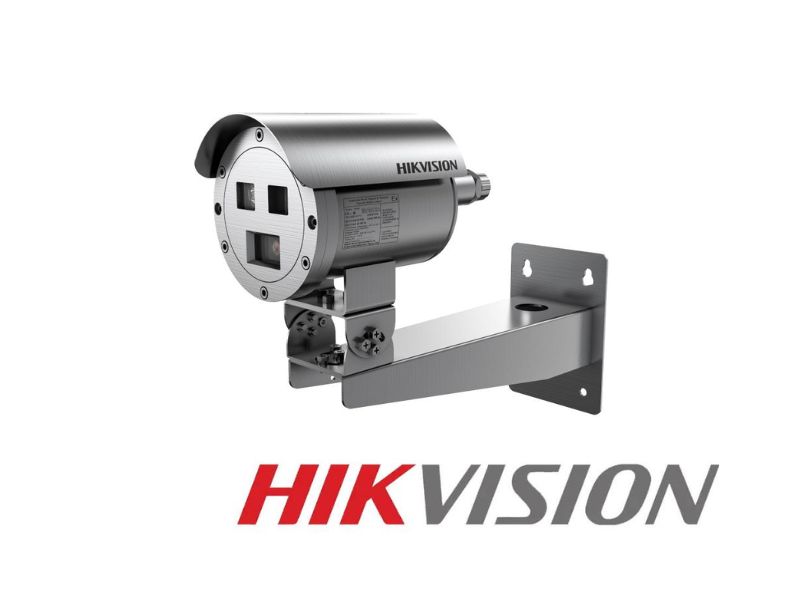

HIKVISION Bullet
The HIKVISION DS-2TD2568T-5/G0/T1Y explosion-proof thermal imaging bullet network camera is designed for fire monitoring and prevention in the most demanding and high-risk industrial environments. Made of 304L stainless steel with an anti-corrosion coating and certified to ATEX and IECEx standards, it allows for safe operation in potentially explosive atmospheres and harsh environments.
It features a high-sensitivity VOx thermal sensor (640 × 512 pixels, 12 μm, NETD ≤ 20 mK) with a 5 mm lens and electronic image stabilization (EIS). It offers a thermographic measurement range from -20 °C to 650 °C, early smoke and fire detection, AI-powered intelligent perimeter analytics, and specific filters to prevent false alarms caused by forklifts passing by.
Main features
ATEX and IECEx Explosion-Proof Certification: Approved for classified areas with gas and dust hazards (Ex db IIC T6 Gb / Ex tb IIIC T80°C Db).
Corrosion-resistant stainless steel chassis: 304L stainless steel body with a special anti-corrosion treatment for marine or chemical environments.
High-quality VOx thermal sensor: 640 × 512-pixel resolution (12 μm) with extremely high sensitivity (NETD ≤ 20 mK at F1.0) and a 10-year warranty on the detector.
Thermography and Fire Prevention: Temperature measurement from -20 °C to 650 °C (accuracy ±2 °C or ±2%) with intelligent fire and smoke detection.
Perimeter Protection and AI: Intelligent algorithms for line crossing, intrusion, zone entry/exit, and filtering false alarms caused by forklifts.
Electronic Image Stabilization (EIS): Maintains the stability of the thermal image in the face of continuous mechanical vibrations.
Common applications
Fire Monitoring and Early Detection at Refineries, Petrochemical Plants, and Fuel Storage Facilities
Perimeter security for offshore platforms, ports, and corrosive industrial areas with classified atmospheres
Thermal monitoring of processes in chemical plants, grain silos, mining operations, and waste management facilities with a risk of explosion
Compatibility: Compatible with the HikCentral platform, Hikvision NVRs, and third-party video management systems (VMS) via standard ONVIF protocols.
Ref. DS-2TD2568T-5/G0/T1Y
