Description
HIKVISION Turret

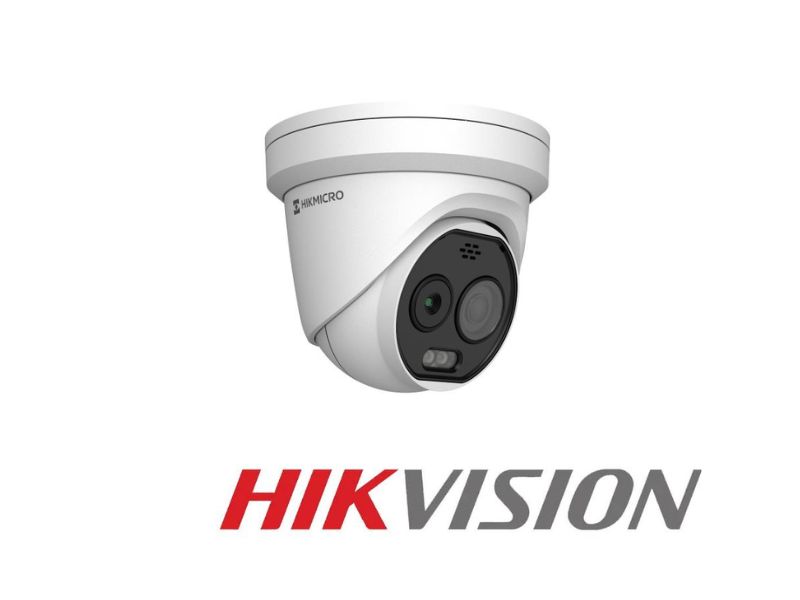

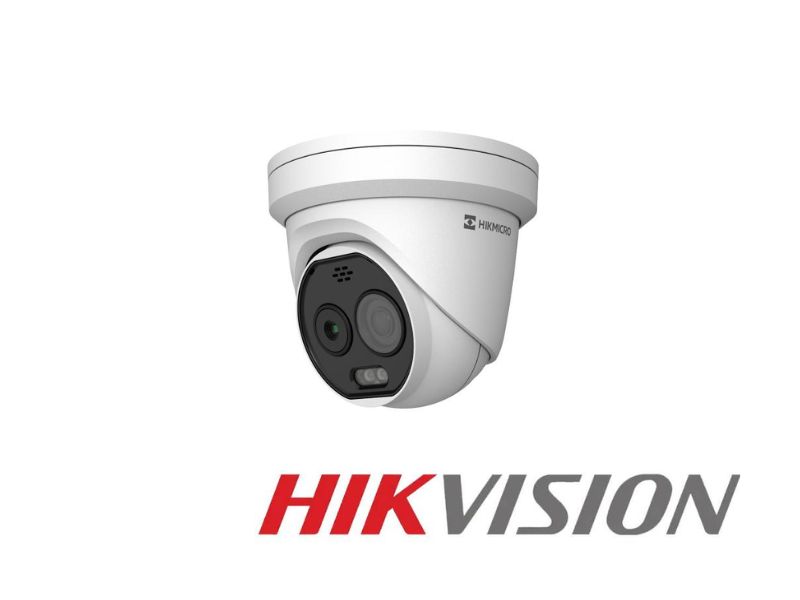

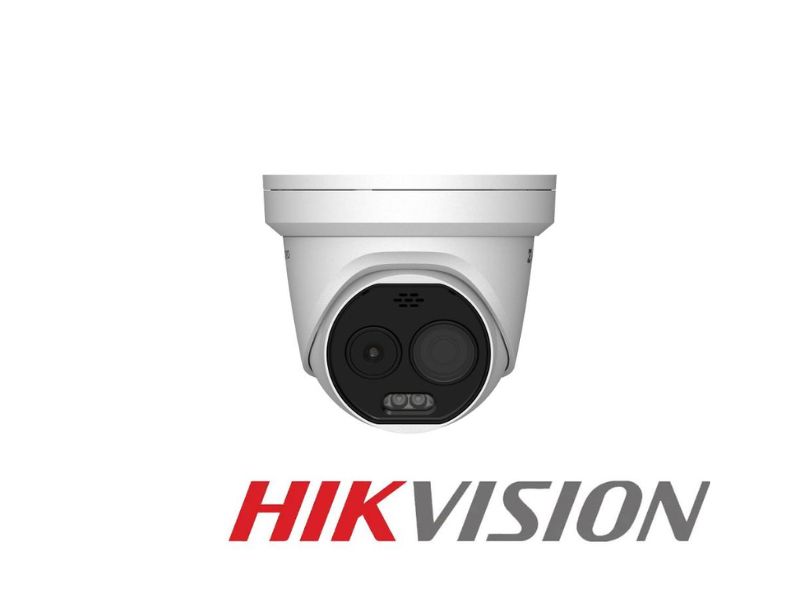

The HIKVISION HM-TD1228T-2/G1/T3A bi-spectral turret camera combines thermal and optical surveillance in a compact design suitable for both indoor and outdoor use. Powered by the large-scale AI model GUANLAN, it extends the detection range for people and vehicles while drastically minimizing false alarms. Its 256 × 192-pixel sensor (12 μm, NETD ≤ 25 mK) with a 2 mm lens provides a wide field of view for perimeter protection and fire prevention.
It features smart hybrid lighting (white and infrared light), a thermographic measurement range from -20 °C to 650 °C, and advanced algorithms that filter out solar reflections and false alarms caused by forklifts, as well as automatic smoke and fire detection.
Main features
GUANLAN AI Model: Large-scale artificial intelligence for accurate target classification and extended-range detection.
VOx thermal sensor: Resolution of 256 × 192 pixels (12 μm) with a thermal sensitivity (NETD) of ≤ 25 mK (F1.0).
Smart Hybrid Light: A versatile light source with white light and IR modes, plus smart switching based on the event.
Advanced thermography: Measurement range from -20 °C to 650 °C with an accuracy of ±2 °C or ±2% for detecting thermal anomalies.
Fire and Smoke Prevention: Algorithms designed for the early detection of fire, smoke, and sudden increases in temperature.
Smart Filters: Behavior detection with filtering of false alarms caused by sunlight reflections or forklifts passing by.
Sensor Warranty: Thermal detector backed by a 10-year manufacturer's warranty.
Common applications
Perimeter Security and Access Control in Warehouses, Logistics Centers, and Commercial Facilities
Thermal Imaging Monitoring and Fire Prevention in Electrical Panels, Loading Areas, and Industrial Facilities
Surveillance in indoor areas or small perimeters where forklifts are present and lighting conditions vary
Compatibility: Compatible with the HikCentral platform, Hikvision NVRs, and third-party VMS systems via ONVIF standards.
Ref. HM-TD1228T-2/G1/T3A
