FLIR C5 WiFi thermal imaging camera

599,00 + VAT

Availability: Immediate

Ref: 89401-0202
Buy this camera and get this course for FREE:

Do you have any doubts?

Contact our technical-sales department

Apliter Renting

Finance your purchase from 20 €/month

Description

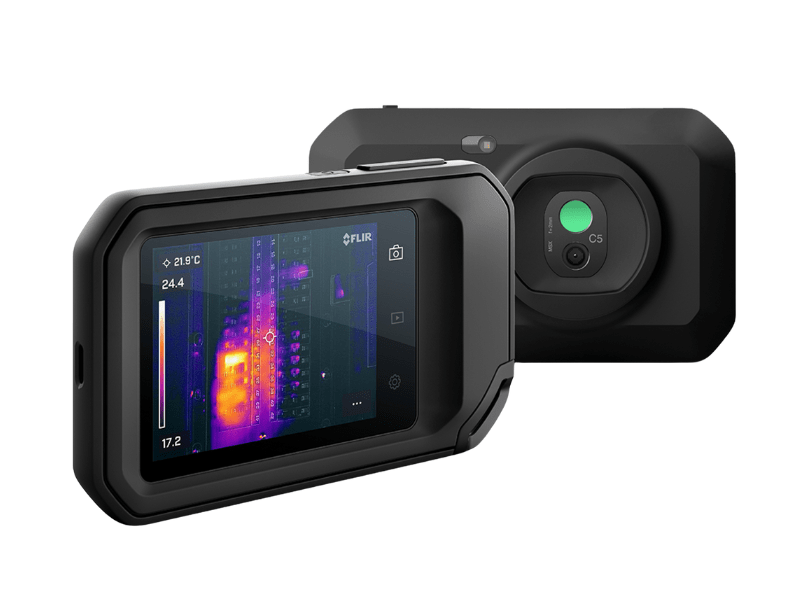

FLIR C5 WIFI compact and powerful thermal camera

The FLIR C5 infrared camera is a complete pocket-sized thermal camera designed to become your go-to tool for building inspections, facility maintenance, HVAC or electrical repairs.
Carry it with you so you're always ready to find hot fuses, cold air leaks, plumbing problems, etc.

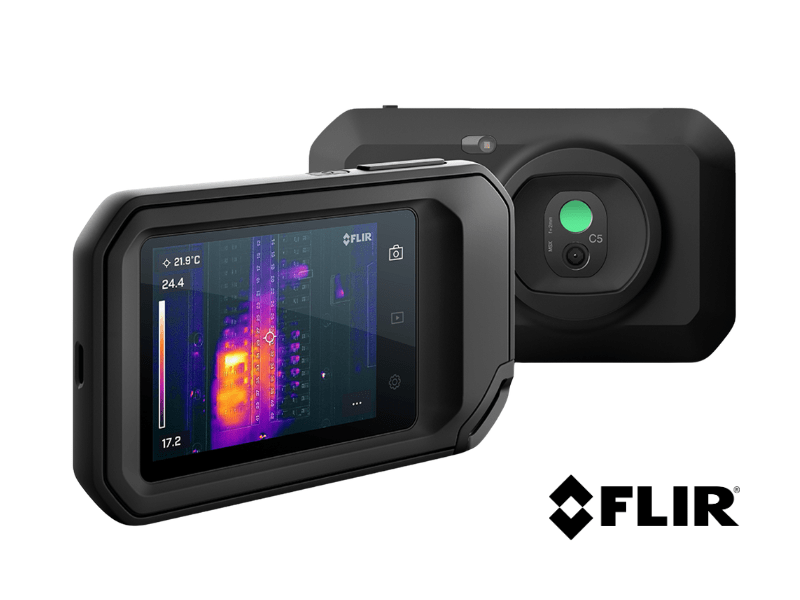

FLIR C5 Wifi thermal imaging camera

Features of the FLIR C5 Wifi thermal imaging camera

  • Real thermography with 160 × 120 pixels resolution.
  • Its lightweight, slim profile design fits comfortably in work clothing pockets.
  • Bright and intuitive 3.5" touch screen with automatic orientation function for easy viewing.
  • With wifi for instant peer-to-peer image sharing.
  • The area measurement box measures the hottest and coldest point (max/min).
  • Thermal imaging enhanced with MSX® technology provides stunning detail to help you more easily identify problem areas.
  • High thermal sensitivity detects subtle temperature differences common in building applications.
  • Professional FLIR Tools reporting software included: industry standard in thermography post-analysis.
  • Video transmission via FLIR Tools, a feature not normally available in low-cost thermal imaging systems.
  • FLIR's exclusive 2-10 warranty, which covers parts and labor for two years and the detector for ten years.



Find problems and troubleshoot quickly with FLIR C5 Wifi

With the FLIR C5 Wifi, you can accurately identify hot fuses, air leaks, plumbing problems and electrical faults. The combination of thermal and visual imaging enables detailed analysis for quick decision making.

Cloud connectivity and reporting

Improve your team's efficiency and capabilities with the FLIR Ignite cloud solution. Upload, organize and share images directly from the FLIR C5 Wifi thermal imaging camera connected to the Wi-Fi network. Keep your data secure in one location and access it easily from any device.

FLIR Ignite for FLIR thermal imaging cameras, one edge, c5, c3, exx series and txx series



Click here to download your free "12 things you need to know to choose a thermal imaging camera" guide.

We are Flir Gold Partner for Spain and Portugal.

Ref. 89401-0202

FLIR C5 WiFi Thermal Imaging Camera - Introduction

Technical Data

Imaging and optical data

IR resolution
160 × 120 pixels
Thermal sensitivity/NETD
< 70 mK
Field of view (FOV)
54° × 42°
Minimum focus distance
  • Thermal: 0.1 m (0.32 ft)
  • MSX: 0.3 m (0.98 ft)
Spatial resolution (IFOV)
6.3 mrad/pixel
F-number
1.1
Image frequency
8.7 Hz
Focus
Focus free

Detector data

Detector type
Focal plane array, uncooled microbolometer
Spectral range
8-14 µm
Pitch detector
12 μm

Image presentation

Display resolution
640 × 480 pixels
Screen size
3.5 in
Aspect ratio
4:3
Auto orientation
Yes
Touch screen
Yes, capacitive
Display technology
IPS
Image adjustment
  • Automatic level and span
  • Manual level and span
  • 1-Touch level and span
Image modes
  • Infrared image
  • Visual image
  • MSX
  • Picture in picture (IR area on visual image)
Gallery
Yes, incl. thumbnails and custom folder structure

Measurement

Object temperature range
-20 to 400°C (-4 to 752°F)
Accuracy at ambient temp. 10 to 35°C (50 to 95°F) and object temp. above 0°C (32°F)
  • 0 to 100°C (32 to 212°F): ±3°C (±5.5°F)
  • 100 to 400°C (212 to 752°F): ±3%.

Measurement analysis

Measurement functions
  • Spot
  • Box with max./min.
Measurements correction
  • Emissivity; matt/semi-matt/semi-glossy + custom value
  • Reflected apparent temperature
    • Atmospheric compensation
Color palettes
  • Iron
  • Gray
  • Rainbow
  • Arctic
  • Lava
  • Rainbow HC

Set-up

Set-up commands
  • Local adaptation of units, language, date and time formats
  • Screen brightness (high, medium, low)
Languages
Arabic, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, simplified Chinese, Spanish, Swedish, traditional Chinese, Turkish

Service functions

Camera software update
  • Automatic over WiFi
  • USB via computer

Storage of images

Storage media
Built-in
Image storage capacity
> 5000 sets of images
Image file format
Standard JPEG, 14-bit measurement data included

Image annotations

Text
Soft keyboard on touchscreen

Digital camera

Resolution
5 MP
Focus
Fixed
Field of view
71.5 ° × 56° (84° diagonal)
Video lamp
Yes

Data communication interfaces

Wi-Fi
802.11 a/ac/b/g/n (2.4 and 5 GHz)
(5 GHz only for indoor use in Japan and Canada)
USB
USB 2.0, Type-C connector
Bluetooth
PAN

Radio

Wi-Fi
  • Standard: 802.11 a/b/g/n (HT20)
  • Frequency range:
    • 2401-2473 MHz
    • 5150-5250 MHz
  • Max. output power: 15 dBm
Bluetooth + EDR
  • Frequency range:
    • 2400-2484 MHz
  • Max. output power: 10 dBm

Power system

Battery type
Rechargeable Li ion battery (built-in)
Battery voltage
3.7 V
Battery capacity
1800 mAh
Battery operating time
4 hours
Battery charge life
>500 cycles
Charging system
USB-C (1 A)
Charging time
2 hours
Charging temperature
35°C (95°F)
External power operation
5 V, USB-C
Power management
Adjustable stand-by and automatic shut-down

Environmental data

Operating temperature range
-10 to 50°C (14 to 122°F)
Storage temperature range
-40 to 70°C (-40 to 158°F)
Humidity (operating and storage)
IEC 60068-2-30/24 h 95% relative humidity 25°C to 40°C (77°F to 104°F) / 2 cycles
Relative humidity
95% relative humidity 25°C to 40°C (77°F to 104°F) non-condensing
EMC
  • EN 301 487-1
  • EN 301 489-17
  • FCC 47 CFR Part 15 Class B
Magnetic fields
EN 61000-4-8 level 5
Radio spectrum
  • ETSI AT 300 328
  • EN 301 489
  • FCC Title 47 CFR Part 15
  • RSS-247 Issue 2
Battery regulations
  • UL 1642
  • EN 62133 ed 2
Battery charging efficiency
  • BC Title 20
  • 10 CFR Section 430.23 (aa)
Encapsulation
Camera housing and lens: IP 54 (IEC 60529)
Shock
25 g (IEC 60068-2-27)
Vibration
2 g (IEC 60068-2-6)
Drop
Designed for 2 m (6.56 ft)
Safety
EN 62368-1
Environmental safety
  • REACH Regulation EC 1907/2006
  • RoHS2 Directive 2011/65/EC
  • WEEE Directive 2012/19/EC
  • Proposition 65

Physical data

Weight (including battery)
0.19 kg (0.42 lb)
Size (L × W × H)
138 × 84 × 24 mm (5.4 × 3.3 × 0.94 in)
Battery weight
40 g (1.4 oz)
Tripod mounting
UNC ¼″-20
Housing material
  • PC and ABS, partially covered with TPE
  • Aluminum
Color
Black

Warranty and service

Warranty

Shipping information

Packaging, type
Cardboard box
Packaging, contents
  • C5
  • Printed documentation
  • Wrist strap lanyard
  • USB cable
  • Pouch
Packaging, weight
0.52 kg (1.14 lb)
Packaging, size
160 × 118 × 93 mm (6.3 × 4.6 × 3.7 in)
EAN-13
4743254004467
UPC-12
845188021832
Country of origin
Estonia

Box contents

  • FLIR C5 thermal imaging camera
  • Wrist strap
  • USB cable
  • Holster
