Name: FLIR C3-X thermal imaging camera - Buy now
SKU: 90501-0201
Price: 499.00 EUR
Availability: InStock

Description

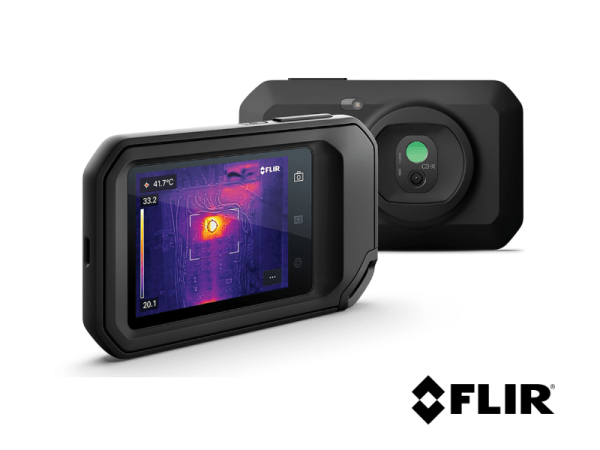

FLIR C3-X WIFI compact and powerful thermal imaging camera

The FLIR C3-X infrared camera is a complete pocket-sized thermal camera designed to become your go-to tool for building inspections, facility maintenance, HVAC or electrical repairs.
Carry it with you so you're always ready to find hot fuses, cold air leaks, plumbing problems, etc.

FLIR C3-X thermal imaging camera features

Real thermography with 128 × 96 pixel resolution.
Its lightweight, slim profile design fits comfortably in work clothing pockets.
Bright and intuitive 3.5" touch screen with automatic orientation function for easy viewing.
With wifi for instant peer-to-peer image sharing.
The area measurement box measures the hottest and coldest point (max/min).
Thermal imaging enhanced with MSX® technology provides stunning detail to help you more easily identify problem areas.
High thermal sensitivity detects subtle temperature differences common in building applications.
Professional FLIR Tools reporting software included: industry standard in thermography post-analysis.
FLIR's exclusive 2-10 warranty, which covers parts and labor for two years and the detector for ten years.

FLIR Ignite

Improve your team's efficiency and capabilities with the FLIR Ignite cloud solution. Upload, organize and share images directly from the FLIR C3-X thermal imaging camera connected to the Wi-Fi network. Keep your data secure in one location and access it easily from any device.

Ref: 90501-0201

Which Cx-Series Camera is Right for You? | FLIR Thermal Cameras

Technical Data

Imaging and optical data
IR resolution	128 × 96 pixels
Thermal sensitivity/NETD	< 70 mK
Field of view (FOV)	53.6°
Minimum focus distance	Thermal: 0.1 m (0.32 ft) MSX: 0.3 m (0.98 ft)
Spatial resolution (IFOV)	7.9 mrad/pixel
F-number	1.1
Image frequency	8.7 Hz
Focus	Focus free

Detector data
Detector type	Focal plane array, uncooled microbolometer
Spectral range	8-14 µm
Pitch detector	12 μm

Image presentation
Display resolution	640 × 480 pixels
Surface brightness (cd/m2)
Screen size	3.5 in
Aspect ratio	4:3
Auto orientation	Yes
Touch screen	Yes, capacitive
Display technology	IPS
Image adjustment	Automatic level and span Manual level and span
Image modes	Infrared image Visual image MSX Picture in picture (IR area on visual image)
Gallery	Yes, incl. thumbnails and custom folder structure

Measurement
Object temperature range	-20 to 300°C (-4 to 572°F)
Accuracy at ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F)	0 to 100°C (32 to 212°F): ±3°C (±5.5°F)
	100 to 300°C (212 to 572°F): ±3%.

Measurement analysis
Measurement functions	Spot Box with max./min.
Measurements correction	Emissivity; matt/semi-matt/semi-glossy + custom value Reflected apparent temperature Atmospheric compensation
Color palettes	Iron Gray Rainbow Rainbow HC

Set-up
Set-up commands	Local adaptation of units, language, date and time formats Screen brightness (high, medium, low)
Languages	Arabic, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, simplified Chinese, Spanish, Swedish, traditional Chinese, Turkish

Service functions
Camera software update	USB via computer

Storage of images
Storage media	Built-in
Image storage capacity	> 5000 sets of images
Image file format	Standard JPEG, 14-bit measurement data included

Image annotations
Text	Soft keyboard on touchscreen

Digital camera
Resolution	5 MP
Focus	Fixed
Field of view	71.5 ° × 56° (84° diagonal)
Video lamp	Yes

Data communication interfaces
Wi-Fi	No
USB	USB 2.0, Type-C connector
Bluetooth	No

Power system
Battery type	Rechargeable Li ion battery (built-in)
Battery voltage	3.7 V
Battery capacity	1800 mAh
Battery operating time	4 hours
Battery charge life	>500 cycles
Charging system	USB-C (1 A)
Charging time	2 hours
Charging temperature	35°C (95°F)
External power operation	5 V, USB-C
Power management	Adjustable stand-by and automatic shut-down

Environmental data
Operating temperature range	-10 to 50°C (14 to 122°F)
Storage temperature range	-40 to 70°C (-40 to 158°F)
Humidity (operating and storage)	IEC 60068-2-30/24 h 95% relative humidity 25°C to 40°C (77°F to 104°F) / 2 cycles
Relative humidity	95% relative humidity 25°C to 40°C (77°F to 104°F) non-condensing
EMC	EN 301 487-1 EN 301 489-17 FCC 47 CFR Part 15 Class B
Magnetic fields	EN 61000-4-8 level 5
Radio spectrum	No
Battery regulations	UL 1642 EN 62133 ed 2
Battery charging efficiency	BC Title 20 10 CFR Section 430.23 (aa)
Encapsulation	Camera housing and lens: IP 54 (IEC 60529)
Shock	25 g (IEC 60068-2-27)
Vibration	2 g (IEC 60068-2-6)
Drop	Designed for 2 m (6.56 ft)
Safety	EN 62368-1
Environmental safety	REACH Regulation EC 1907/2006 RoHS2 Directive 2011/65/EC WEEE Directive 2012/19/EC Proposition 65

Physical data
Weight (including battery)	0.19 kg (0.42 lb)
Size (L × W × H)	138 × 84 × 24 mm (5.4 × 3.3 × 0.94 in)
Battery weight	40 g (1.4 oz)
Tripod mounting	UNC ¼″-20
Housing material	PC and ABS, partially covered with TPE Aluminum
Color	Black

Warranty and service
Warranty	http://www.flir.com/warranty/

Shipping information
Packaging, type	Cardboard box
Packaging, contents	C3-X Printed documentation Wrist strap lanyard USB cable Pouch
Packaging, weight	0.52 kg (1.14 lb)
Packaging, size	160 × 118 × 93 mm (6.3 × 4.6 × 3.7 in)
EAN-13	4743254004757
UPC-12	845188022938
Country of origin	Estonia
