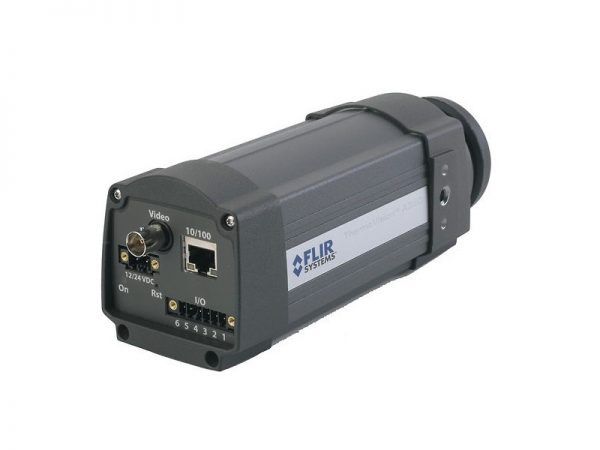

FLIR A310 25º thermal imaging camera

FLIR A310 25º thermal imaging camera

This product is discontinued.
This is the model that replaces it:
FLIR A615, Apliter Termografia

FLIR A615 Thermal Imaging Camera

Consult price

Description

FLIR A310 Thermal Camera

Automated 24/7 monitoring applications

FLIR A310 infrared camera for 24/7 monitoring of critical facilities

The FLIR A310 thermal imaging camera enables accurate temperature measurement for all users who require an integrated intelligent system. This camera integrates analysis functions, alarm configuration and autonomous communication via standard protocols. The FLIR A310 infrared camera also allows the construction of distributed solutions of one or several cameras using Ethernet protocols, as well as the connection to PLC-type industrial control equipment.

Features FLIR A310 thermal imaging camera

  • EthernetIP field bus prototocol support (analysis, alarming and simple camera control).
  • Support for Modbus TCP field bus protocol (analysis, alarm and simple camera control).
  • Extended integrated analysis functionalities.
  • Extended alarm functionality, such as analysis function and more.
  • Scheduled sending: files (FTP) or e-mail (SMTP) of analysis results or images.
  • Sending of alarms: files (FTP) or e-mail (SMTP) of analysis results or images.
  • MPEG-4 Streaming
  • PoE (Power over Ethernet)
  • Integrated Web server
  • General purpose I/O
  • 100 Mbps Ethernet (100m cable, wireless, fiber, etc.)
  • Synchronization through SNTP
  • Composite video output.
  • Multi-camera utility software: FLIR IP Config and FLIR IR Monitor included.
  • Open and well-described TCP/IP protocol for control and configuration.
  • 16-bit 320×240 pixel radiometric imaging at 7-8Hz
  • 25º lens included, 15º and 45º lenses optional.

Ref. 48201-1101, 42701-1101

FLIR A310 - Introduction to the thermal imaging camera

FLIR A310 - Getting Started with the FLIR IR Monitor Camera

FLIR A310 - Camera configuration with FLIR IR Monitor

Technical Data

Imaging and optical data

IR resolution
320 × 240 pixels
Thermal sensitivity/NETD
< 0.05°C @ +30°C (+86°F) / 50 mK
Field of view (FOV)
25° × 18.8°
Minimum focus distance
0.4 m (1.31 ft.)
Focal length
18 mm (0.7 in.)
Spatial resolution (IFOV)
1.36 mrad
Lens identification
Automatic
F-number
1.3
Image frequency
9 Hz / 30 Hz
Focus
Automatic or manual (built in motor)
Zoom
1-8× continuous, digital, interpolating zooming on images

Detector data

Detector type
Focal plane array (FPA), uncooled microbolometer
Spectral range
7.5-13 µm
Pitch detector
25 µm
Detector time constant
Typical 12 ms

Measurement

Object temperature range
  • -20 to +120°C (-4 to +248°F)
  • 0 to +350°C (+32 to +662°F)
Accuracy
±2°C (±3.6°F) or ±2% of reading

Measurement analysis

Spotmeter
10 (with no image streaming)
Area
10 boxes with max./min./average/position (with no image streaming)
Isotherm
1 with above/below/interval
Measurement option
Measurement Mask Filter
Schedule response: File sending (ftp), email (SMTP)
Difference temperature
Delta temperature between measurement functions or reference temperature
Reference temperature
Manually set or captured from any measurement function
Atmospheric transmission correction
Automatic, based on inputs for distance, atmospheric temperature and relative humidity
Optics transmission correction
Automatic, based on signals from internal sensors
Emissivity correction
Variable from 0.01 to 1.0
Reflected apparent temperature correction
Automatic, based on input of reflected temperature
External optics/windows correction
Automatic, based on input of optics/window transmission and temperature
Measurement corrections
Global and individual object parameters

Alarm

Alarm functions
6 automatic alarms on any selected measurement function, Digital In, Camera temperature, timer
Alarm output
Digital Out, log, store image, file sending (ftp), email (SMTP), notification

Set-up

Color palettes
Color palettes (BW, BW inv, Iron, Rain)
Set-up commands
Date/time, Temperature (°C/°F)

Storage of images

Storage media
Built-in memory for image storage
File formats
Standard JPEG, 16-bit measurement data included

Ethernet

Ethernet
Control, result and image
Ethernet, type
100 Mbps
Ethernet, standard
IEEE 802.3
Ethernet, connector type
RJ-45
Ethernet, communication
TCP/IP socket-based FLIR proprietary
Ethernet, video streaming
MPEG-4, ISO/IEC 14496-1 MPEG-4 ASP@L5
Ethernet, image streaming
16-bit 320 × 240 pixels @ 4.5 Hz
  • Radiometric
Ethernet, power
Power over Ethernet, PoE IEEE 802.3af class 0.
Ethernet, protocols
Ethernet/IP, Modbus TCP, TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, ftp, SMTP, SMB (CIFS), DHCP, MDNS (Bonjour), uPnP

Digital input/output

Digital input, purpose
Image tag (start/stop/general), Input ext. device (programmatically read)
Digital input
2 opto-isolated, 0-1.5 V = low, 3-25 V = high
Digital output, purpose
As function of ALARM, Output to ext. device (programmatically set)
Digital output
2 opto-isolated, ON = supply (max. 100 mA), OFF = open
Digital I/O, isolation voltage
500 VRMS
Digital I/O, supply voltage
6-24 VDC, max. 200 mA
Digital I/O, connector type
6-pole jackable screw terminal

Composite video

Video out
Composite video output, PAL and NTSC compatible
Video, standard
CVBS (ITU-R-BT.470 PAL/SMPTE 170M NTSC)
Video, connector type
Standard BNC connector

Power system

External power operation
12/24 VDC, 24 W absolute max.
External power, connector type
2-pole jackable screw terminal
Voltage
Allowed range 10-30 VDC

Environmental data

Operating temperature range
-15°C to +50°C (+5°F to +122°F)
Storage temperature range
-40°C to +70°C (-40°F to +158°F)
Humidity (operating and storage)
IEC 60068-2-30/24 h 95% relative humidity +25°C to +40°C (+77°F to +104°F)
EMC
  • EN 61000-6-2:2001 (Immunity)
  • EN 61000-6-3:2001 (Emission)
  • FCC 47 CFR Part 15 Class B (Emission)
Encapsulation
IP 40 (IEC 60529)
Shock
25 g (IEC 60068-2-27)
Vibration
2 g (IEC 60068-2-6)

Physical data

Weight
0.7 kg (1.54 lb.)
Camera size (L × W × H)
170 × 70 × 70 mm (6.7 × 2.8 × 2.8 in.)
Tripod mounting
UNC ¼"-20 (on three sides)
Base mounting
2 × M4 thread mounting holes (on three sides)
Housing material
Aluminum

Shipping information

Packaging, type
Cardboard box
List of contents
  • Infrared camera with lens
  • Ethernet cable
  • Mains cable
  • Power cable, pig-tailed
  • Power supply
  • Printed documentation
  • Utility CD-ROM
Packaging, weight
Packaging, size
495 × 370 × 192 mm (19.5 × 14.6 × 7.6 in.)
EAN-13
7332558003367
UPC-12
845188003111
Country of origin
Sweden

FLIR A310 thermal imaging camera - Features

FLIR A310 thermal imaging camera - Datasheet

FLIR A310 thermal imaging camera - Quick Start Guide

FLIR A310 Thermal Imaging Camera - User Manual

Box contents

  • FLIR A310 thermal imaging camera with 25° lens
  • Ethernet cable
  • Mains cable
  • Power cable, pigtail
  • Power supply
  • Printed documentation
