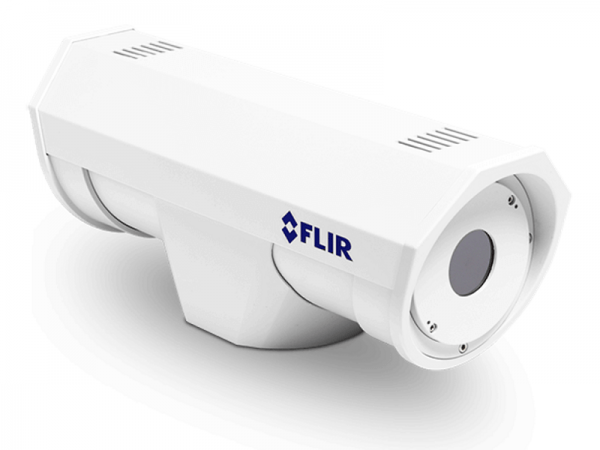

FLIR A310 f thermal camera

Description

Automated 24/7 monitoring applications

FLIR A310 f infrared camera for 24/7 monitoring of critical facilities and early fire detection

The FLIR A310 f thermal imaging camera is designed for critical facility monitoring and fire prevention. It performs accurate temperature measurements and allows you to detect incidents before they evolve into serious failures that could lead to production downtime or put people's safety at risk, as well as the associated costs. It is easily installed almost anywhere and offers IP66 protection.

FLIR A310 f thermal imaging camera features

Ethernet for everything

A single Ethernet cable is used to power the camera (PoE), for communication and control, as well as for live video streaming.

Analysis functions

The FLIR A310 f thermal camera incorporates different measurement and analysis functions: point and area temperature measurement, hot spot detection, temperature difference measurement or up to 6 alarms via digital outputs as a result of analysis functions.

Protection against aggressive environments

The thermal imaging camera is suitable for working in demanding environments as it is protected against dust and water thanks to its IP66 protection.

Ref. 61201-1102, 61201-1103, 61201-1104, 61201-1104, 61201-1101, 61201-1105

FLIR A310 f - thermal imaging camera

FLIR A310 f - Early Fire Detection

Technical Data

Imaging and optical data
IR resolution	320 × 240 pixels
Thermal sensitivity/NETD	< 0.05°C @ +30°C (+86°F) / 50 mK
Field of view (FOV)	25° × 18.8°
Minimum focus distance	0.4 m (1.31 ft.)
Focal length	18 mm (0.7 in.)
Spatial resolution (IFOV)	1.36 mrad
Lens identification	Automatic
F-number	1.3
Image frequency	30 Hz
Focus	Automatic or manual (built in motor)
Zoom	1-8× continuous, digital, interpolating zooming on images

Detector data
Detector type	Focal plane array (FPA), uncooled microbolometer
Spectral range	7.5-13 µm
Pitch detector	25 µm
Detector time constant	Typical 12 ms

Measurement
Object temperature range	-20 to +120°C (-4 to +248°F) 0 to +350°C (+32 to +662°F)
Accuracy	±4°C (±7.2°F) or ±4% of reading

Set-up
Color palettes	Color palettes (BW, BW inv, Iron, Rain)
Set-up commands	Date/time, Temperature (°C/°F)

Storage of images
Storage media	Built-in memory for image storage
File formats	Standard JPEG, 16-bit measurement data included

Ethernet
Ethernet	Control and image
Ethernet, type	100 Mbps
Ethernet, standard	IEEE 802.3
Ethernet, connector type	RJ-45
Ethernet, communication	TCP/IP socket-based FLIR proprietary
Ethernet, video streaming	MPEG-4, ISO/IEC 14496-1 MPEG-4 ASP@L5
Ethernet, image streaming	16-bit 320 × 240 pixels @ 3 Hz - Radiometric
Ethernet, power	Power over Ethernet, PoE IEEE 802.3af class 0
Ethernet, protocols	TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, ftp, SMTP, SMB (CIFS), DHCP, MDNS (Bonjour), uPnP

Digital input/output
Digital input, purpose	Image tag (start/stop/general), Input ext. device (programmatically read)
Digital input	2 opto-isolated, 10-30 VDC
Digital output, purpose	Output to ext. device (programmatically set)
Digital output	2 opto-isolated, 10-30 VDC, max. 100 mA
Digital I/O, isolation voltage	500 VRMS
Digital I/O, supply voltage	12/24 VDC, max. 200 mA
Digital I/O, connector type	6-pole jackable screw terminal

Composite video
Video out	Composite video output, PAL and NTSC compatible
Video, standard	CVBS (ITU-R-BT.470 PAL/SMPTE 170M NTSC)
Video, connector type	Standard BNC connector

Power system
External power operation	The camera operates on 12/24 VDC, 9 W max. (allowed range: 10-30 VDC) and heaters on 24 VDC, 25 W max. In total: 34 W.
External power, connector type	2-pole jackable screw terminal
Voltage	Allowed range 10-30 VDC

Environmental data
Operating temperature range	-25°C to +50°C (-13°F to +122°F)
Storage temperature range	-40°C to +70°C (-40°F to +158°F)
Humidity (operating and storage)	IEC 60068-2-30/24 h 95% relative humidity +25°C to +40°C (+77°F to +104°F)
EMC	EN 61000-6-2 (Immunity) EN 61000-6-3 (Emission) FCC 47 CFR Part 15 Class B (Emission)
Encapsulation	IP 66 (IEC 60529)
Bump	5 g, 11 ms (IEC 60068-2-27)
Vibration	2 g (IEC 60068-2-6)
Declaration of conformity	See: https://support.flir.com/resources/DoC

Physical data
Weight	5 kg (11.0 lb.)
Size (L × W × H)	460 × 140 × 159 mm (18.1 × 5.5 × 6.3 in.)
Base mounting
Housing material	Aluminum

System features
External power operation (heater)	24 VDC, 25 W max.
External power, connector type (heater)	2-pole jackable screw terminal
Voltage (heater)	Allowed range 21-30 VDC
Automatic heaters	Clears window from ice

Shipping information
Packaging, type	Cardboard box
List of contents	Infrared camera with lens and environmental housing FLIR Sensors Manager download card FLIR Tools & Utilities CD-ROM Lens cap Printed documentation Small accessories kit
Packaging, weight
Packaging, size	534 × 207 × 230 mm (21.0 × 8.1 × 9.1 in.)
EAN-13	7332558008843
UPC-12	845188009380
Country of origin	Sweden

FLIR A310 f - Features

FLIR A310 f - Datasheet

FLIR A310 f - User Manual

Box contents

FLIR A310 thermal imaging camera with 6°, 15°, 25°, 45° or 90° lens and fixed housing
FLIR Sensors Manager Download Card
CD-ROM with FLIR Tools and utilities
Lens cap
Small accessories kit
CD-ROM with user documentation
Printed documentation
