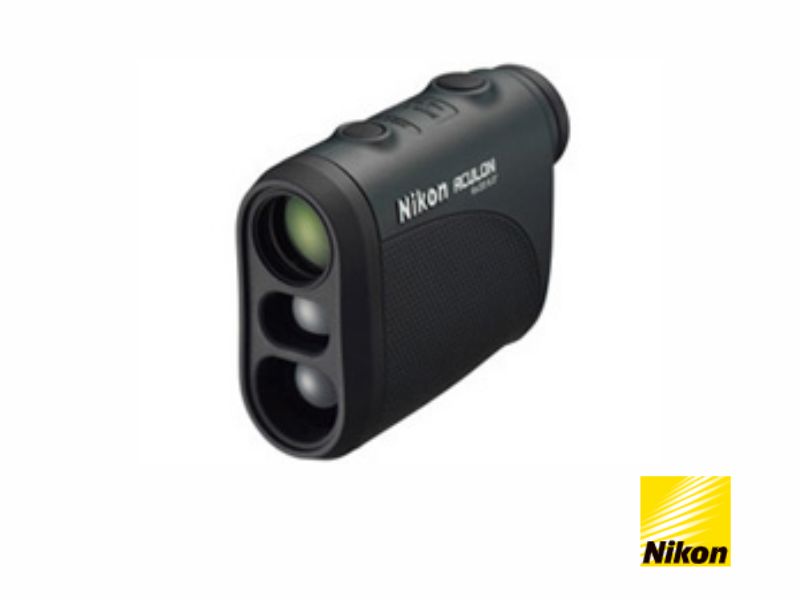

Nikon ACULON AL11 (8397) – Laser Rangefinder
The Nikon ACULON AL11 (Nikon part number 8397, FLIR part number 4214089) is a compact laser rangefinder that measures distances from 5 to 500 m with a resolution of 1 m. FLIR includes it in the field accessory kit for the FLIR QL320 leak quantification tablet.
It features a 6x magnification viewfinder with a 20 mm objective lens and a true field of view of 6.0°. When multiple objects are in the beam, it displays the farthest one. It runs on a CR2 lithium battery, automatically turns off after 8 seconds, and weighs 125 g without the battery.
Main features
- Measuring range: 5 to 500 m, in 1-meter increments
- 6x magnification viewfinder, 20 mm objective lens
- Actual field of view: 6.0°; exit pupil: 3.3 mm; eye relief: 16.7 mm
- Prioritize the farthest target
- Power: 1 CR2 lithium battery (3 V), automatic shut-off after 8 seconds
- Dimensions: 91 × 73 × 37 mm; weight: 125 g without battery
Common applications
- Measuring the Distance Between the Camera and the Leak During OGI Inspections
- Fieldwork with the FLIR QL320
- Measuring Distances During Thermographic Inspections
Compatibility
Standalone handheld accessory; does not connect to the camera or tablet. It is part of the FLIR QL320 field kit.
REF: 4214089
