Description
Pack drone DJI MATRICE 3TD SP-2Y + DJI DOCK2

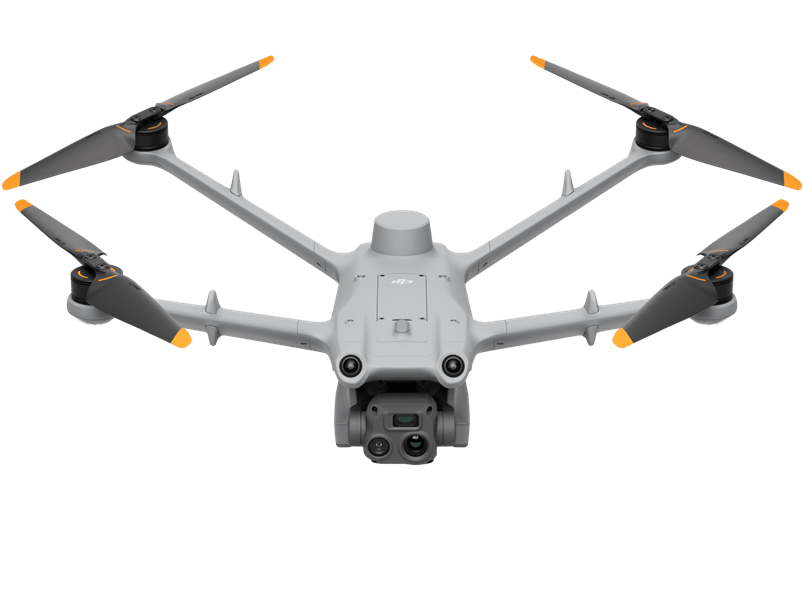

The new DJI Matrice 3D and 3TD drones have been specifically designed for DJI Dock 2. Matrice 3D is equipped with a telecamera and a wide-angle camera with a mechanical shutter, which meet the needs for high-precision mapping tasks at 1:500 scale. Matrice 3TD, equipped with a wide-angle camera, a telecamera and an infrared camera, can reproduce both visible light and thermal images, making it suitable for security and inspection operations.
Thanks to its powerful operational features, the DJI Matrice 3D/3TD meets the needs of high-end operations.
Wide-angle camera
1/1.32-inch CMOS
24 mm equivalent format
Effective pixels: 48 MP
Telecamera
1/2-inch CMOS
162 mm equivalent format
Effective pixels: 12 MP
Infrared camera
40 mm equivalent format
Normal mode: 640×512 at 30 fps
UHR Infrared Imaging mode: 1280×1024 at 30 fps
(with the UHR infrared imaging function enabled, the aircraft automatically activates or deactivates the UHR infrared imaging mode depending on the brightness of the ambient light).
28× digital zoom
The DJI Dock 2 takeoff and landing platform uses Matrice 3D or 3TD drones easily and safely. Dock 2 is lightweight, offers high-level operational performance and features intelligent cloud-based functions for efficient and quality automated operations.
Efficient site evaluation
Prior to deployment, the aircraft can detect the surrounding environment using visual sensors and quickly determine if there are strong GNSS signals in the area.
This new visual assessment significantly speeds up site selection, reducing the time required from five hours to twelve minutes or less.
Dust and water resistant: IP55
DJI Dock 2 is designed with safety in mind. With an IP55 rating for dust and water resistance, [1] Dock 2 can operate stably for long periods, even in harsh climates and environments.
Integrated environmental monitoring system
DJI Dock 2 integrates multiple sensors, including rain gauge, anemometer and thermometer, to detect weather changes in real time. In conjunction with online weather forecasting, it can provide timely alerts or complete tasks using DJI FlightHub 2 to effectively reduce risk when flying.
Improved stability on landing
With next-level image recognition technology, the aircraft accurately identifies positioning markers on the landing pad. In addition, the new landing pad skid ramp centering design facilitates accurate landing.
Ref. DJ3009, DJ3013
