Description

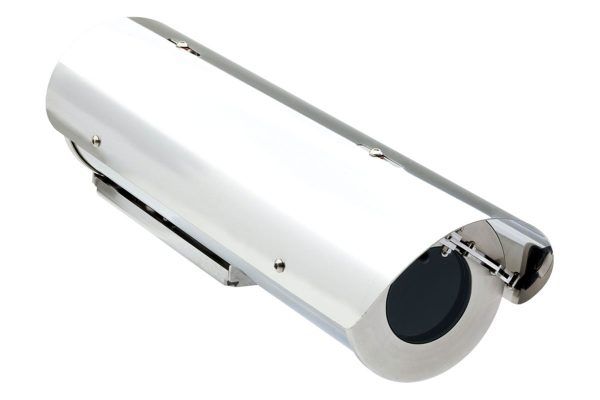

129IR housing for thermal imaging camera
The 129IR series is a medium-sized stainless steel thermal camera housing, specifically designed for application in highly corrosive environments.
The 129IR Thermal Imager Housing is equipped with an AR/DLC coated germanium front window for a range of 7.5-14 µm, available in two sizes: 50 mm and 70 mm diameter. The Housing 129IR is available with sunshield and heather/transmitter (on request). An additional version is available with sunshield, heather/demister and wiper.
The 129IR series is suitable for the integration of a wide variety of thermal imaging cameras.
Additional accessories available include cable tails, washer systems and AISI316L stainless steel mounting brackets.
Features
- AISI316L stainless steel construction
- IR germanium window available in two sizes: Ø=50mm and Ø=70mm
- IP66/IP67 weatherproof standard
- Operating Temperature: -20°C + 75°C
- Sunshade and heater/demister
- Optional wiper (RX24IO telemetry receiver recommended for wiper activation)
- 2 cable glands M20x 1.5
