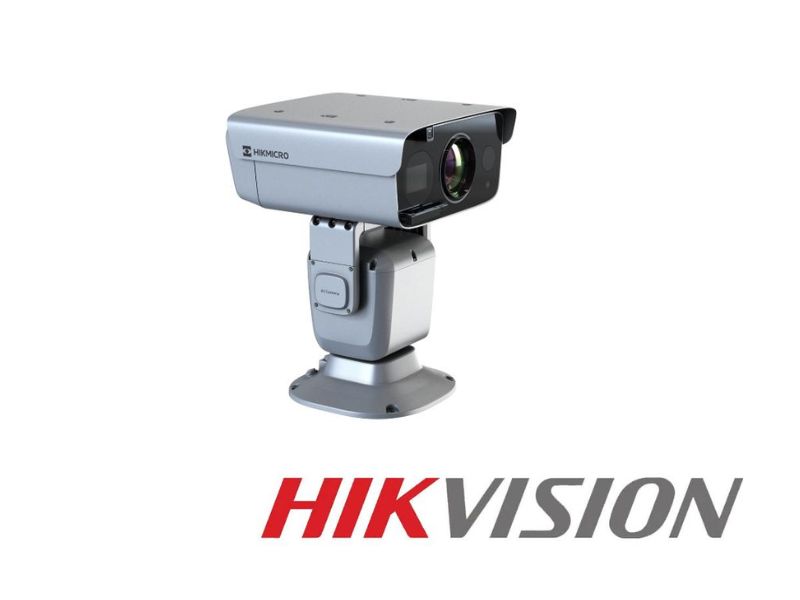

HIKVISION Camera with Anti-Corrosion Coating (384×288 | IP66 | IR+VIS)

HIKVISION Camera with Anti-Corrosion Coating (384×288 | IP66 | IR+VIS)

Consult price

Availability: 11-15 days

Clean
Ref: HM-TD6338-P
Request a quote
X
X

Description

HIKVISION Positioner with Anti-Corrosion Coating

The HIKVISION HM-TD6338-50C4L/G0/T2Y bispectral network positioning system combines a high-sensitivity thermal channel with a high-definition optical channel on a rugged PTZ platform. Designed for the surveillance of critical infrastructure, large perimeters, and industrial facilities in extreme conditions, it features a 50-mm thermal lens that enables precise observation and classification of targets at medium and long ranges.

Its 12-μm thermal sensor offers outstanding sensitivity (NETD ≤ 20 mK), ensuring clear capture of thermal details even in fog, rain, or complete darkness. Additionally, it features NEMA-4X corrosion resistance certification, integrated security encryption via TPM 2.0 hardware, and a self-cleaning lens system for optimal performance with minimal maintenance.

Main features

  • High-sensitivity VOx thermal sensor: Resolution of 384 × 288 pixels (12 μm) with extreme thermal sensitivity (NETD ≤ 20 mK; F# = 1.0).

  • 50 mm thermal optics: Designed for perimeter monitoring and temperature inspection at medium and long ranges.

  • Cybersecurity and High Durability: Integrated TPM 2.0 encryption module, NEMA-4X corrosion-resistant certification, and a self-cleaning lens system.

  • AI-Powered Perimeter Protection: Advanced analytics for intrusion prevention, line-crossing detection, and controlled access to designated areas.

  • Fire and Smoke Prevention: Intelligent algorithms for the early detection of fire and smoke, along with temperature-based alarms.

  • PTZ Positioning Platform: Precise pan/tilt control for smooth, comprehensive tracking over large areas.

  • Guaranteed detector: Thermal sensor backed by a 10-year manufacturer's warranty.

Common applications

  • Perimeter security at substations, ports, solar farms, and industrial facilities

  • Fire Monitoring and Prevention at Recycling Plants, Fuel Storage Facilities, and Chemical Plants

  • Monitoring in coastal or marine environments, or environments with high levels of corrosive agents

Compatibility: Compatible with the HikCentral ecosystem, Hikvision professional NVRs, and third-party VMS management software via ONVIF protocols (Profile S, Profile G, Profile T).

Ref. HM-TD6338-50C4L/G0/T2Y

Technical data

Thermal Module

Image SensorUncooled VOx focal-plane arrays
Resolution384 × 288
Pixel Interval12 μm
Response Band8 μm to 14 μm
NETD≤ 20 mK (@25°C, F# = 1.0)
Focal Length50 mm
Focus ModeThermally insulated
IFOV0.24 mrad
OpeningF1.0
Field of View5.3° (H) × 4.0° (V)
Min. Focus Distance33m
Digital Zoomx2, x4, x8

Optical Module

Image Sensor1/1.8″ Progressive-Scan CMOS
Resolution2688 × 1520, 4 MP
Min. LightingColor: 0.002 lux @ (F1.5, AGC ON), B/W: 0.0002 lux @ (F1.5, AGC ON), 0 lux with IR
Field of View55.2°(H)*31.84°(V)~1.84°(H)*1.04°(V)
Focal Length6 to 336 mm, 56x
Aperture (Range)F1.36–4.6
Focus ModeAutomatic, Semi-automatic, and Manual
Shutter Speed1.1 s to 1/30,000 s
WDR120 dB
Optical DefoggingNo, it supports the dehumidification algorithm
Digital Zoomx2, x4, x8, x16

Image Effect

Picture-in-PictureDisplays a partial image of the thermal channel on the full screen of the optical channel
Lens ColoringYes. Compatible in warm white and warm black modes.
Image StabilizationBoth channels support EIS.

PTZ

Range of MotionBread: Continuous 360° rotation; Tilt: From -85° to +85° (automatic flipping)
Pan SpeedConfigurable, from 0.01°/s to 110°/s
Tilt SpeedConfigurable, from 0.01°/s to 50°/s
Proportional ZoomYes
Preset Settings300 in total
Patrol Scan8; Up to 32 Presets Per Patrol
Pattern Scan4; More Than 10 Minutes Per Pattern
Turn Off MemoryYes
ParkingPreset Scan/Pattern Scan/Patrol Scan/Automatic Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PT StatusOn/Off
Scheduled TaskPreset Scan/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Doom Reset/Doom Adjustment/Auxiliary Output

Highlighter

Laser DistanceUp to 2,000 meters
IR Intensity and AngleAutomatically adjusted

Smart Feature

VCASupports 4 types of VCA rules (Line Crossing, Intrusion, Region Entry, and Region Exit), up to 10 scenes, and 8 VCA rules per scene
Temperature MeasurementSupports 3 types of temperature measurement rules, 273 presets (such as scenes), and 21 rules per scene (10 points, 10 areas, and 1 line)
Temperature Range-20 °C to 150 °C (-4 °F to 302 °F)
Temperature Accuracy± 8 °C (±14.4 °F)
Fire DetectionDynamic detection of hot spots; up to 10 hot spots can be detected.
Smoke DetectionUp to 6 km detection range with a 5 m × 5 m smoke plume

Video and Audio

Main FlowOptical channel: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 960, 1280 × 720) | 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 960, 1280 × 720)
Thermal channel: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 512, 384 × 288)
Sub-streamOptical channel: 50 Hz: 25 fps (704 × 576, 352 × 288) | 60 Hz: 30 fps (704 × 576, 352 × 288)
Thermal channel: 25 fps (704 × 576, 640 × 512, 384 × 288)
Video CompressionMain stream: H.265/H.264 | Substream: H.265/H.264/MJPEG
Audio CompressionG.711u/G.711a/G.722.1/MP2L2/G.726/PCM

Video and Images

Color Palettes15 palettes (White Heat, Black Heat, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Frozen Fire, Rain, Red Heat, Green Heat, Dark Blue)

Network

ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Network StorageLocal storage on MicroSD/SDHC/SDXC cards (up to 512 G) and NAS (NFS, SMB/CIFS), automatic network recovery (ANR)
APIISAPI, ISUP, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T)
Simultaneous Live ViewUp to 20 channels
User/Host LevelUp to 32 users, 3 levels: Administrator, Operator, User
SecurityUser authentication (username and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
ClientiVMS-4200, Hik-Connect
Web BrowserLive view (plug-in allowed): Live view in Internet Explorer 11 (no plug-in): Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+

Interface

Alarm Input7-channel inputs (0–5 VDC)
Alarm Output2-channel relay outputs, configurable alarm response actions
Alarm ActionPreset Scan/Patrol Scan/Pattern Scan/SD Card Recording/Relay Output/Smart Capture/FTP Upload/Email Linking
Audio Input1, 3.5 mm microphone input/line input interface. Line input: 2 – 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Audio OutputLinear level; Impedance: 600 Ω
Communication Interface1 RJ45 10 M/100 M auto-negotiating Ethernet interface. | 1 RS-485 interface
Analog Video Output1.0 V [p-p]/75 Ω, BNC for the thermal channel

General

Power36 VDC ± 20%, 48 VDC ± 20%, two-core terminal block
Energy Consumption7 A, max. 150 W
Operating Temperature/Humidity-40°C to 70°C (-40°F to 158°F); Humidity: 95% or less
Windshield wipersYes
Protection LevelIP66 rating; TVS 6000V lightning protection, surge protection, and voltage transient protection
Dimension543.8 mm × 399.7 mm × 390.3 mm (21.41" × 15.74" × 15.37")
WeightApproximately 27.5 kg (60.627 lb)

Detection Range Table / Smart Function Range

VCA Range for Humans650m
VCA Range for Vehicles1500m

Approval

EMCCE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011+A1: 2014);
IC (ICES-003: Issue 7)
SecurityCB: IEC 62368-1: 2014+A11;
CE-LVD: EN 62368-1: 2014/A11: 2017;
EnvironmentCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, REACH: Regulation (EC) No. 1907/2006
ProtectionIP66: IEC 60529-2013
AnotherNEMA 4X (NEMA 250-2018)
