Description

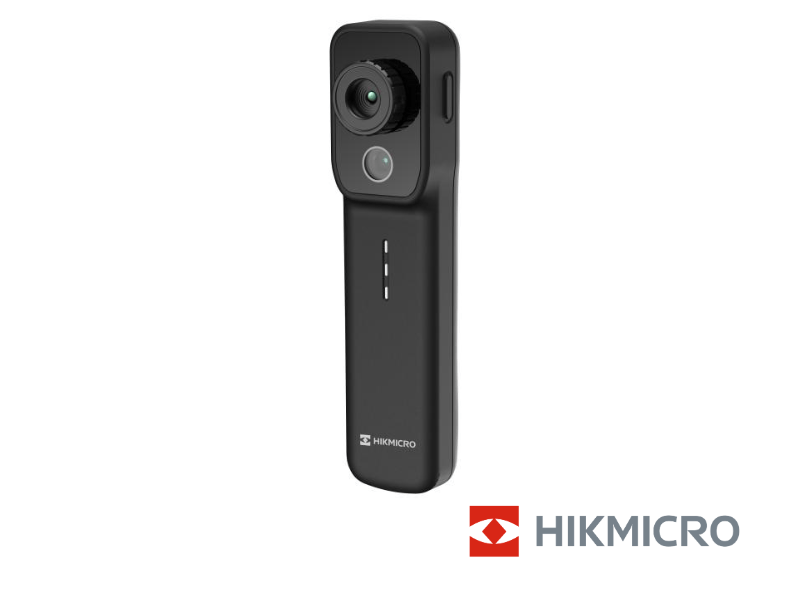

HIKMICRO MiniX (256×192) – Thermal imaging camera for Android and/or iOS smartphones

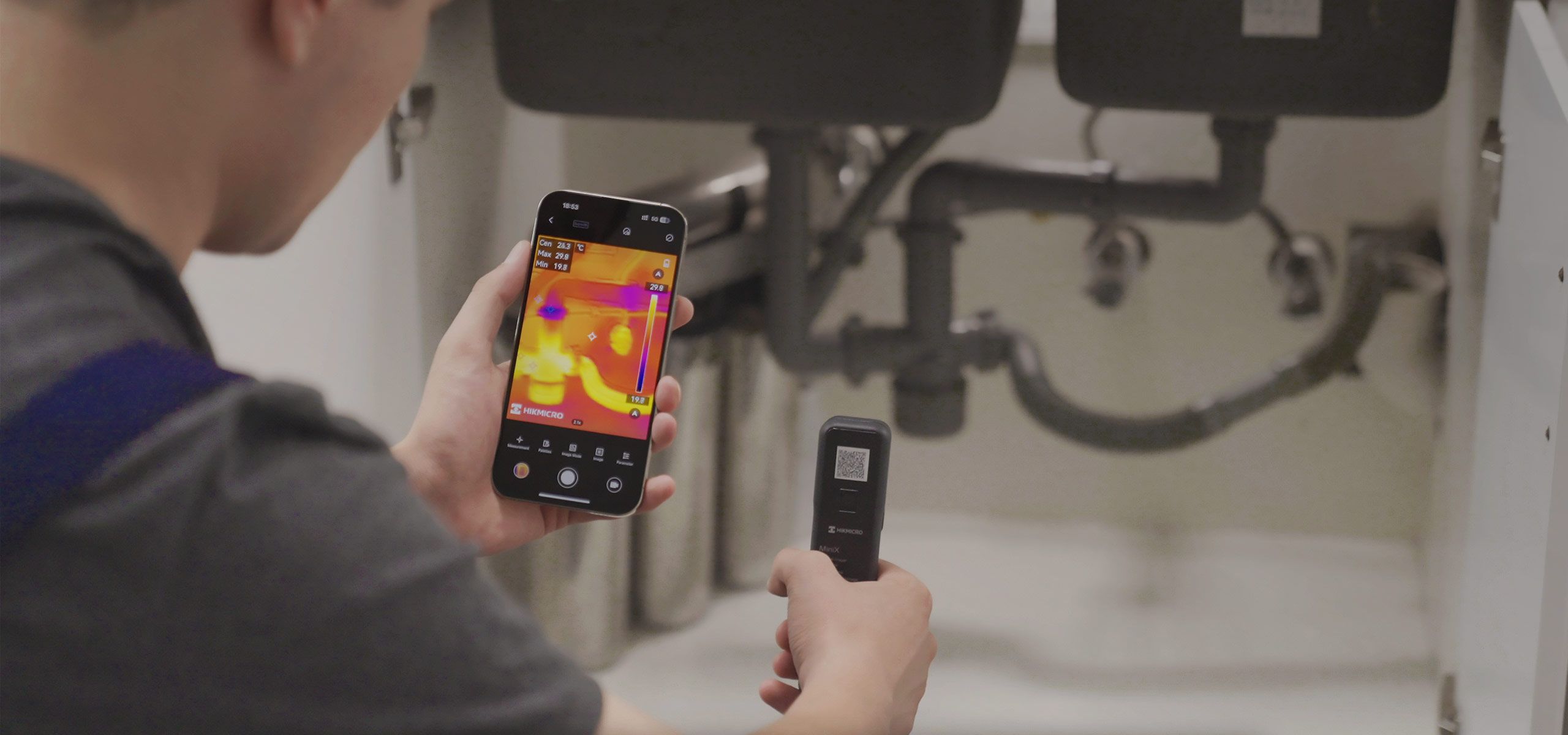

The HIKMICRO MiniX is a compact, wireless thermal imaging camera designed to connect to iOS or Android smartphones and tablets, offering a portable solution for quick thermal inspections in the field.
With a thermal resolution of 256 × 192 px, SuperIR technology for both live and captured images, and a frame rate of 25 Hz, it delivers clear thermal images and quickly identifies hidden issues.
Its measurement range of -20 °C to 550 °C, combined with the built-in visual camera and thermal, fusion, PIP, visual, and hybrid modes, makes it a highly versatile tool for inspections in building systems, HVAC, electrical maintenance, and mechanical equipment.
It also features Wi-Fi connectivity, a rechargeable battery with a runtime of approximately 4 hours, and various mounting options: on a smartphone or tablet, on a magnetic surface, or on a tripod.
Main features
- Resolution of 256 × 192 pixels
- SuperIR technology in action and captured images
- Sensibilidad térmica NETD < 40 mK
- 25 Hz frame rate
- Measuring range from -20 °C to 550 °C
- Accuracy of ±2 °C / ±2%
- 0.3 MP camera
- Thermal, visual, fusion, PIP, and blend modes
- Measurement tools: center point, hotspot, cold spot, 3 points, 3 rectangles, and 1 line
- Wireless connection for iOS and Android
- Compatible with HIKMICRO Viewer and HIKMICRO Analyzer
- Mounts on a smartphone, magnetic surface, or tripod
- IP54 protection
- Approximate battery life of 4 hours
Common applications
- Building Inspection
- HVAC Maintenance
- Electrical maintenance
- Diagnosis of mechanical equipment
- Hotspot detection
- Quick on-site inspections
- Spot temperature monitoring
- Generating reports from the app
Ref: HM-TJ52-3AQF/W-MiniX
