Description

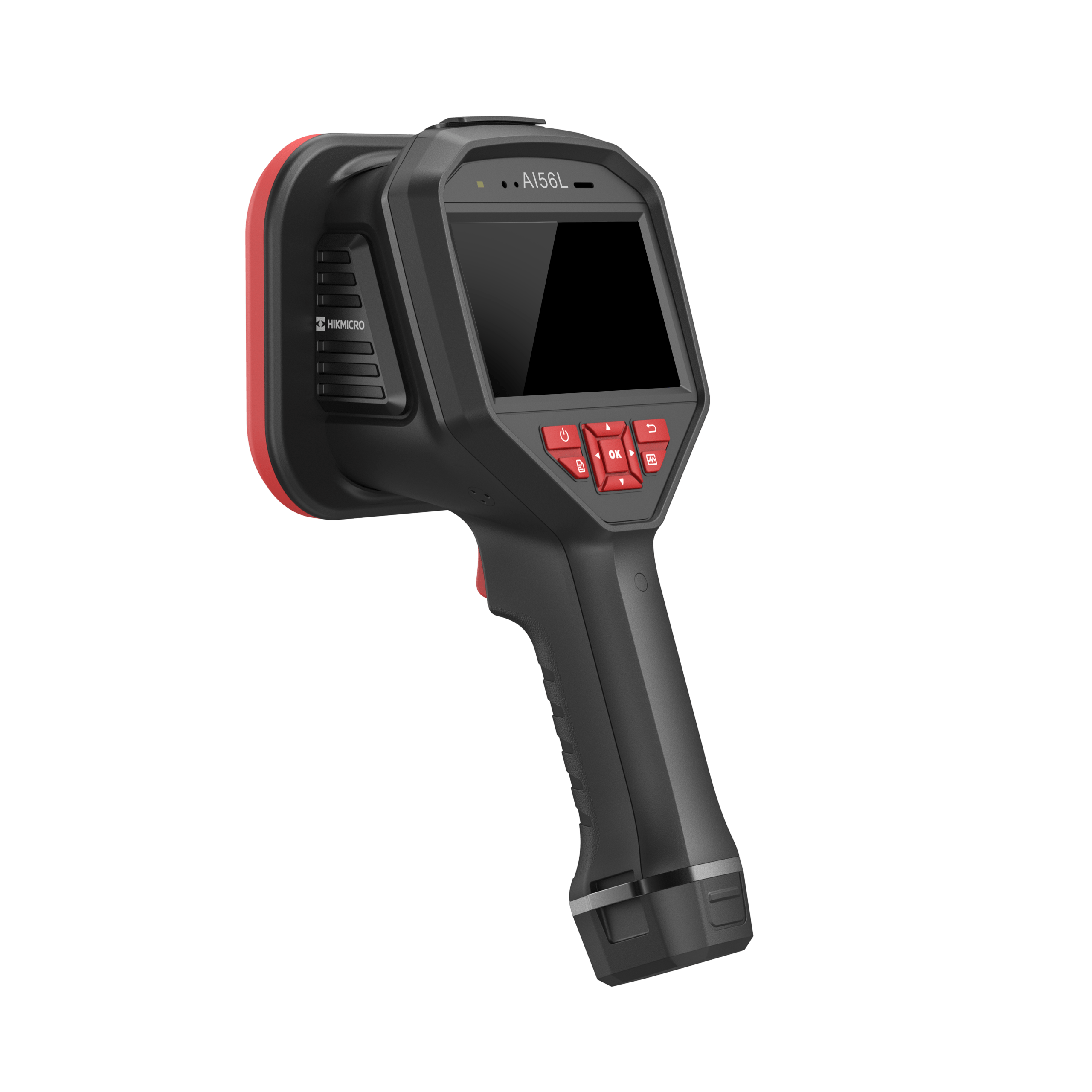

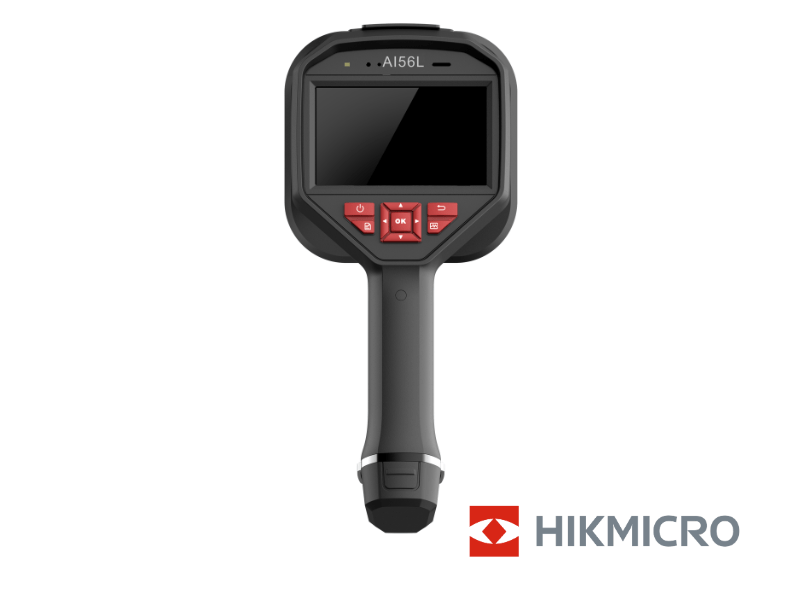

HIKMICRO AI56L – Industrial Acoustic Imaging Camera
The HIKMICRO AI56L is a professional acoustic camera designed to locate leaks of compressed air and pressurized gases in industrial settings.
Equipped with 64 low-noise MEMS microphones and an adjustable bandwidth range from 0 kHz to 96 kHz, it allows users to locate the source of the sound in real time and overlay it on the video feed to quickly identify the leak.
In addition, it estimates the leakage rate, associated cost, and leakage level in real time, making it easier to prioritize interventions, reduce energy losses, and avoid costs resulting from equipment downtime or failures.
It features a 4.3-inch LCD touchscreen, a 5-megapixel camera, 1x to 16x continuous digital zoom, Wi-Fi, USB-C, HDMI, and an SD card slot expandable up to 128 GB.

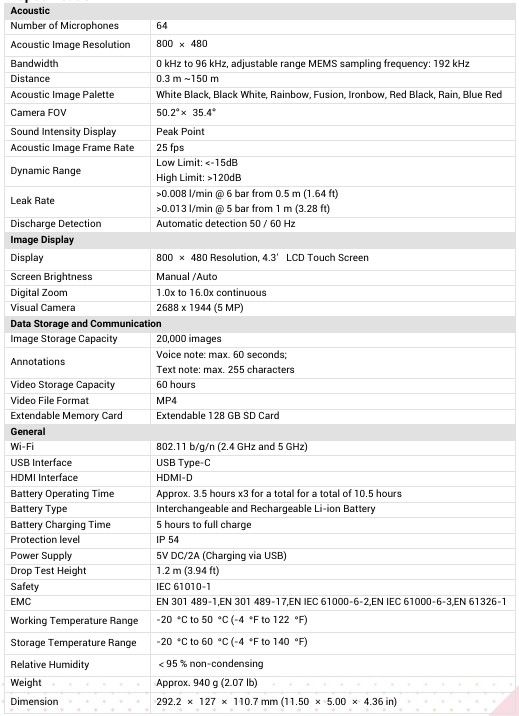

Main features
- Acoustic chamber for leak detection
- 64 low-noise MEMS microphones
- Real-time sound source localization
- Adjustable range from 0 kHz to 96 kHz
- Detection range: 0.3 m to 150 m
- Estimation of leakage rate, cost, and level
- Audio resolution: 800 × 480 px
- Acoustic imaging frame rate of 25 fps
- 5 MP camera
- 4.3-inch LCD touchscreen
- Continuous digital zoom from 1× to 16×
- Compatible with acoustic analysis software
- Storage for up to 20,000 images
- Video recording in MP4 format
- Wi-Fi, USB-C, micro-HDMI, and expandable SD card
- IP54 protection
- Approximate total battery life of 10.5 hours with 3 batteries
Common applications
- Compressed air leak detection
- Locating pressurized gas leaks
- Inspection of pipes, valves, and tanks
- Reduction of energy losses
- Industrial Predictive Maintenance
- Diagnosis of pneumatic systems
- Prioritizing repairs based on the cost of the leak
Ref: HM-AP56-W/W-AI56L
