Description

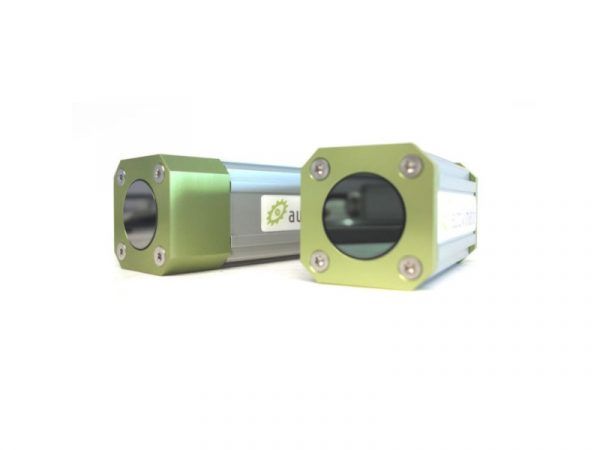

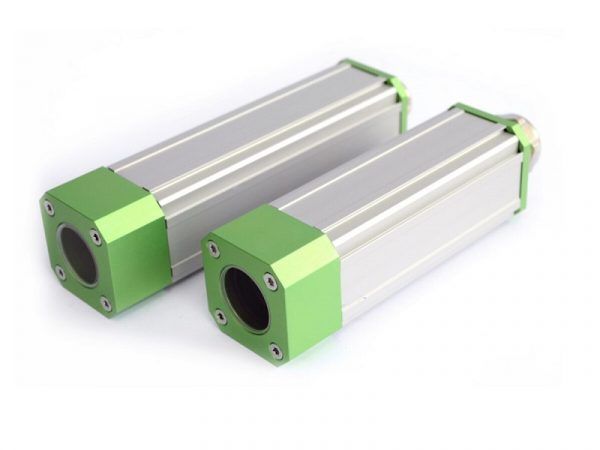

COLIBRI Housing for thermal imaging camera
The COLIBRI IR Housing is suitable for small thermal imaging cameras (e.g. FLIR Boson) of 29 x 29 mm or 30 x 30 mm cross-section and lenses up to 39 mm in diameter. At only 50 x 50 mm (W x H) and 181 mm, or 211 mm total length, it is only slightly larger than the thermal imaging camera to be protected with lens and connector. Several connectors with a diameter of up to 20.5 mm can be inserted into the COLIBRI IR housing. Thanks to the 30 to 40 mm profile adapters, it can be easily adapted to the modular system and attached to the dovetail profiles as usual. The COLIBRI housing for FLIR Boson thermal imaging camera is the ideal solution for applications where space and costs are critical and where the extensive accessories of the IR SALAMANDER housing are not needed.
For lenses up to 39 mm diameter and cameras up to 30×30 mm section.
Features
- Robust construction
- Compact size
- Reduced weight
- High degree of protection IP66
- Flexible camera positioning
- High chemical resistance
- Vibration-proof mounting
- Excellent heat dissipation
- Option of customized lengths
