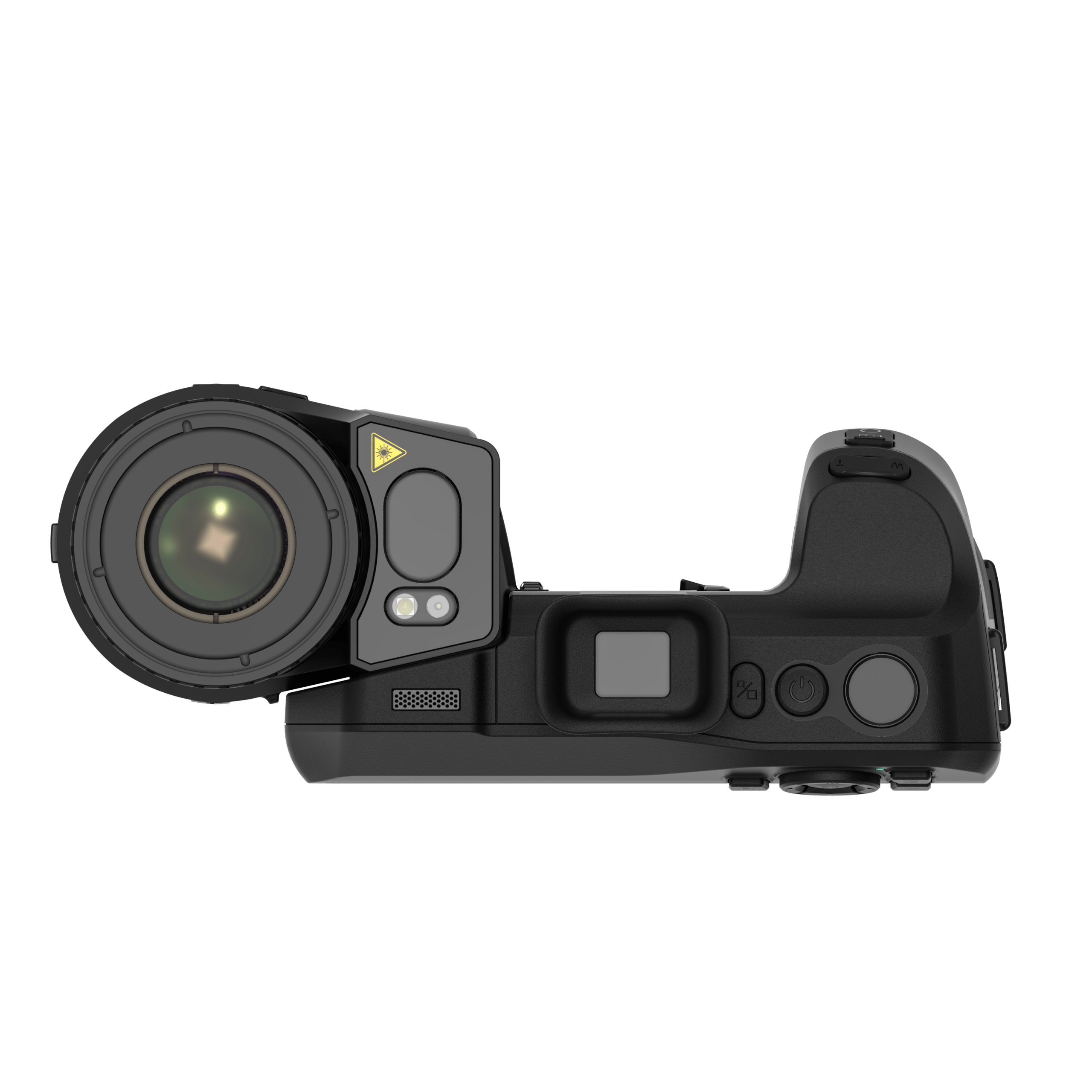

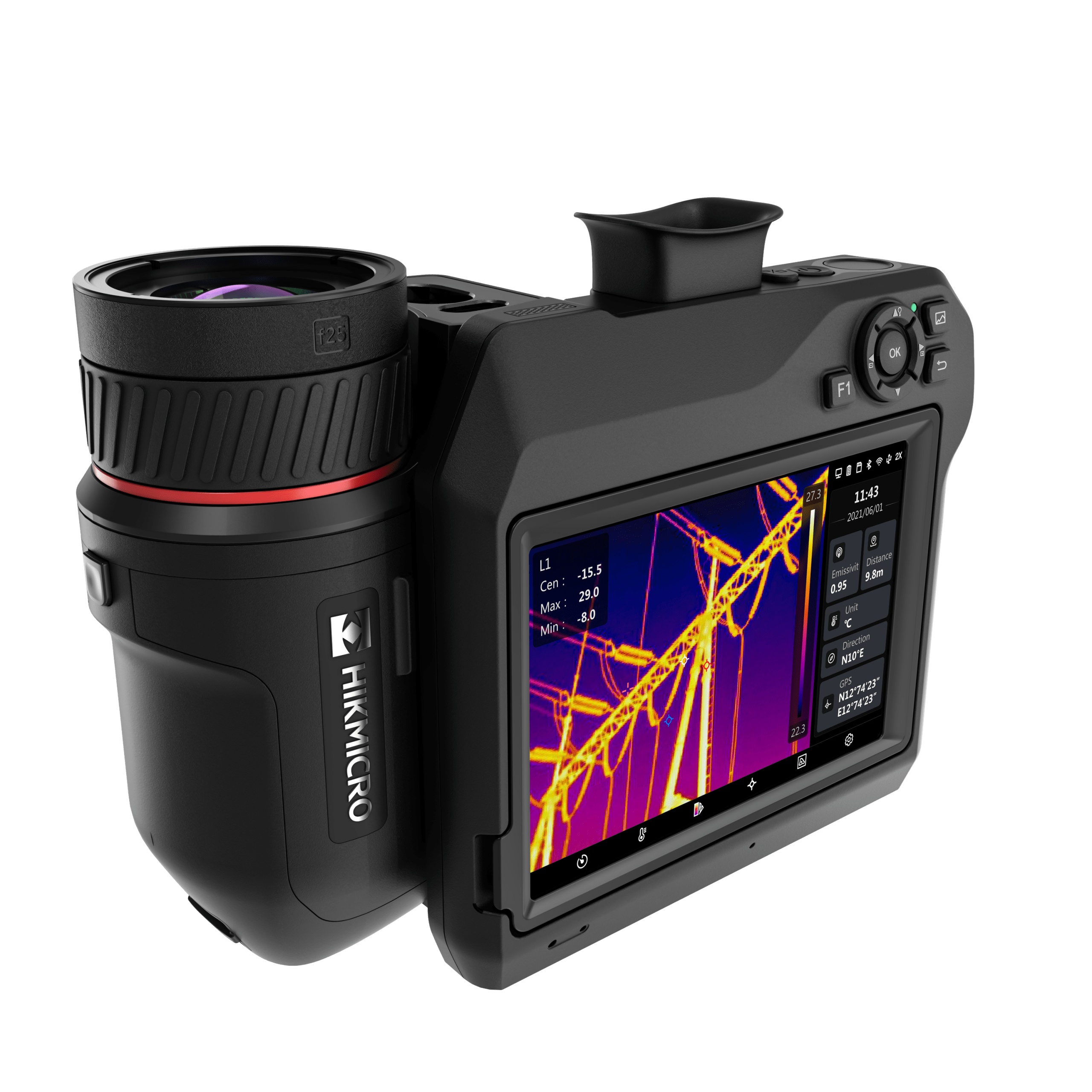

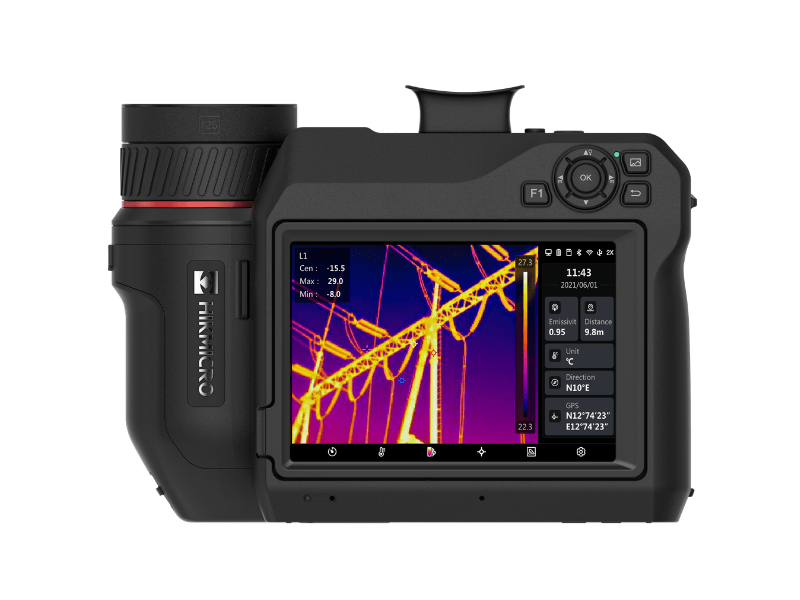

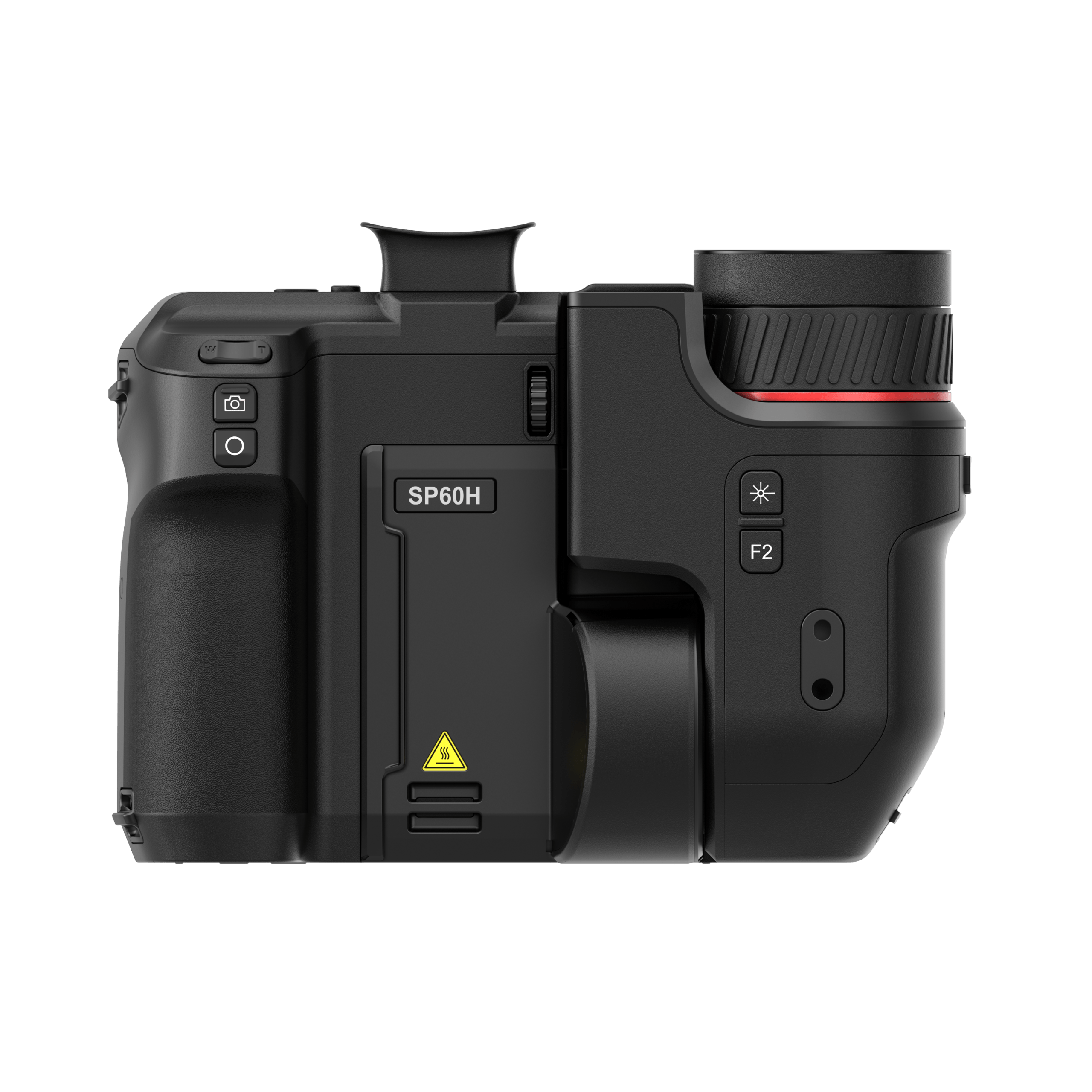

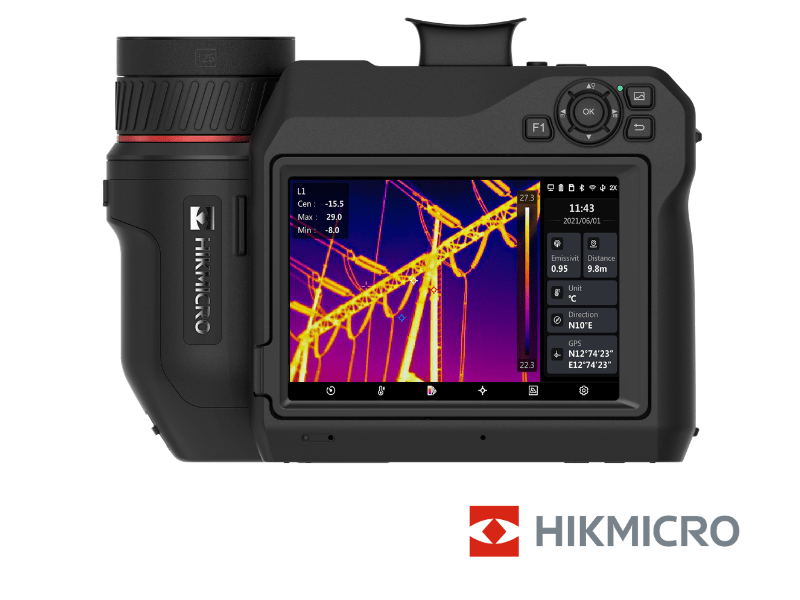

HIKMICRO SP60H (640×480) – Professional thermal imaging camera
The HIKMICRO SP60H is a high-performance portable thermal imaging camera designed for professional inspections in industrial maintenance, predictive maintenance, oil & gas, utilities, and high-temperature processes.
Con una resolución térmica de 640 × 480 px, sensibilidad NETD < 30 mK y frecuencia de imagen de 30 Hz, ofrece imágenes térmicas detalladas para detectar anomalías con precisión en entornos exigentes.
Its main difference from the SP60 is its expanded measurement range, which reaches up to 2200 °C, making it an ideal choice for high-temperature industrial applications. It also features an OLED display, a 5-inch LCD touchscreen, a 180° rotating lens, a tiltable screen, continuous digital zoom, and GPS and compass functions.
It also allows you to connect to HIKMICRO Viewer and HIKMICRO Analyzer to easily transfer images, analyze them, and generate reports.

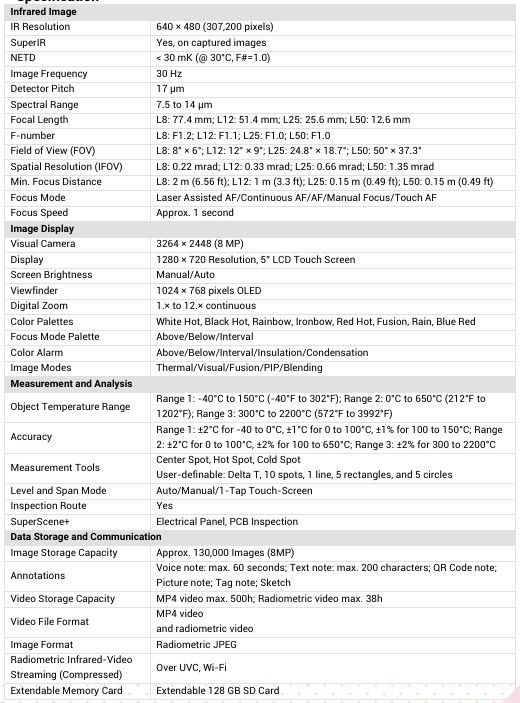

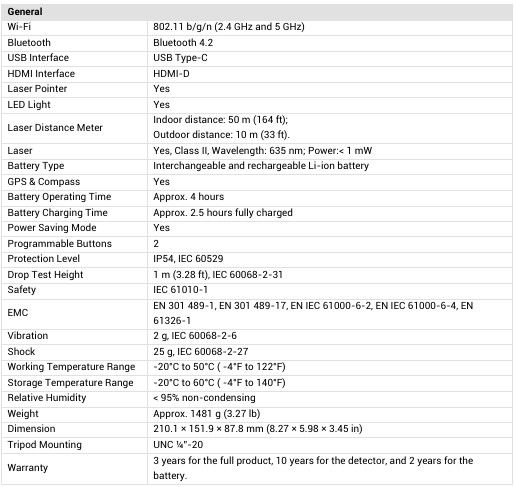

Main features
- 640 × 480 px resolution
- Sensibilidad térmica NETD < 30 mK
- 30 Hz frame rate
- Measuring range from -40 °C to 2200 °C
- 8 MP front-facing camera
- 5-inch LCD touchscreen
- 1024 × 768-pixel OLED display
- 180° rotating lens and tilting screen
- Continuous digital zoom from 1× to 12×
- Manual, automatic, continuous, touch, and laser-assisted focus
- GPS, compass, and laser rangefinder
- Wi-Fi, Bluetooth, USB-C, and micro-HDMI connectivity
- IP54 protection
- Approximate battery life of 4 hours
Common applications
- Industrial Predictive Maintenance
- Inspection of high-temperature processes
- Oil & Gas
- Utilities and substations
- Advanced Electrical Inspection
- Diagnosis of mechanical equipment
- Review of Critical Assets
- Thermal imaging inspection routes
Ref: HM-TP96H-Q/W-SP60H-L25, HM-TP96H-Q/W-SP60H-L50, HM-TP96H-Q/W-SP60H-L12, HM-TP96H-Q/W-SP60H-L8, HM-TP96H-Q/W-SP60H-L12/25, HM-TP96H-Q/W-SP60H-L25/50, HM-TP96H-Q/W-SP60H-L8/25, HM-TP96H-Q/W-SP60H-L12/25/50
