Description

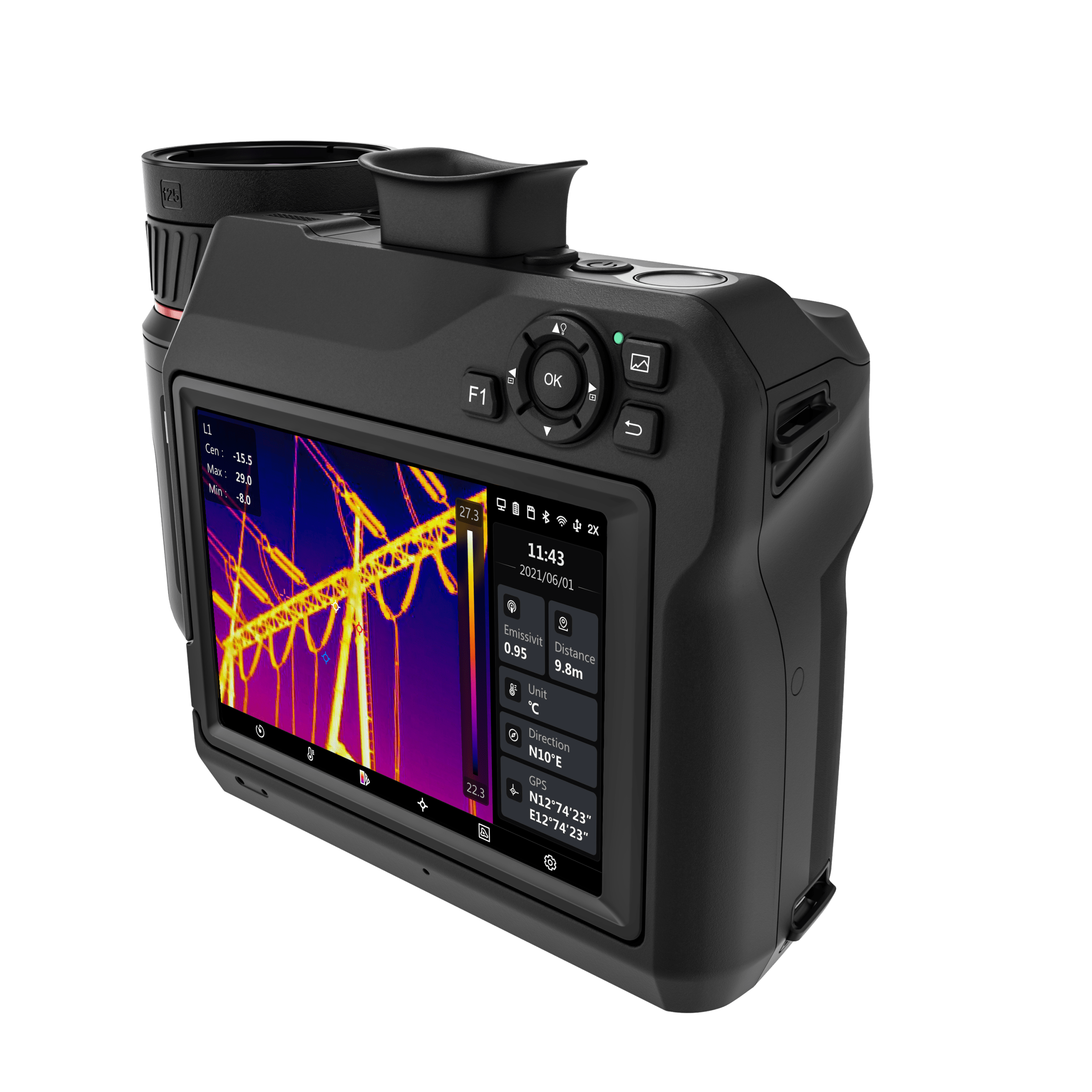

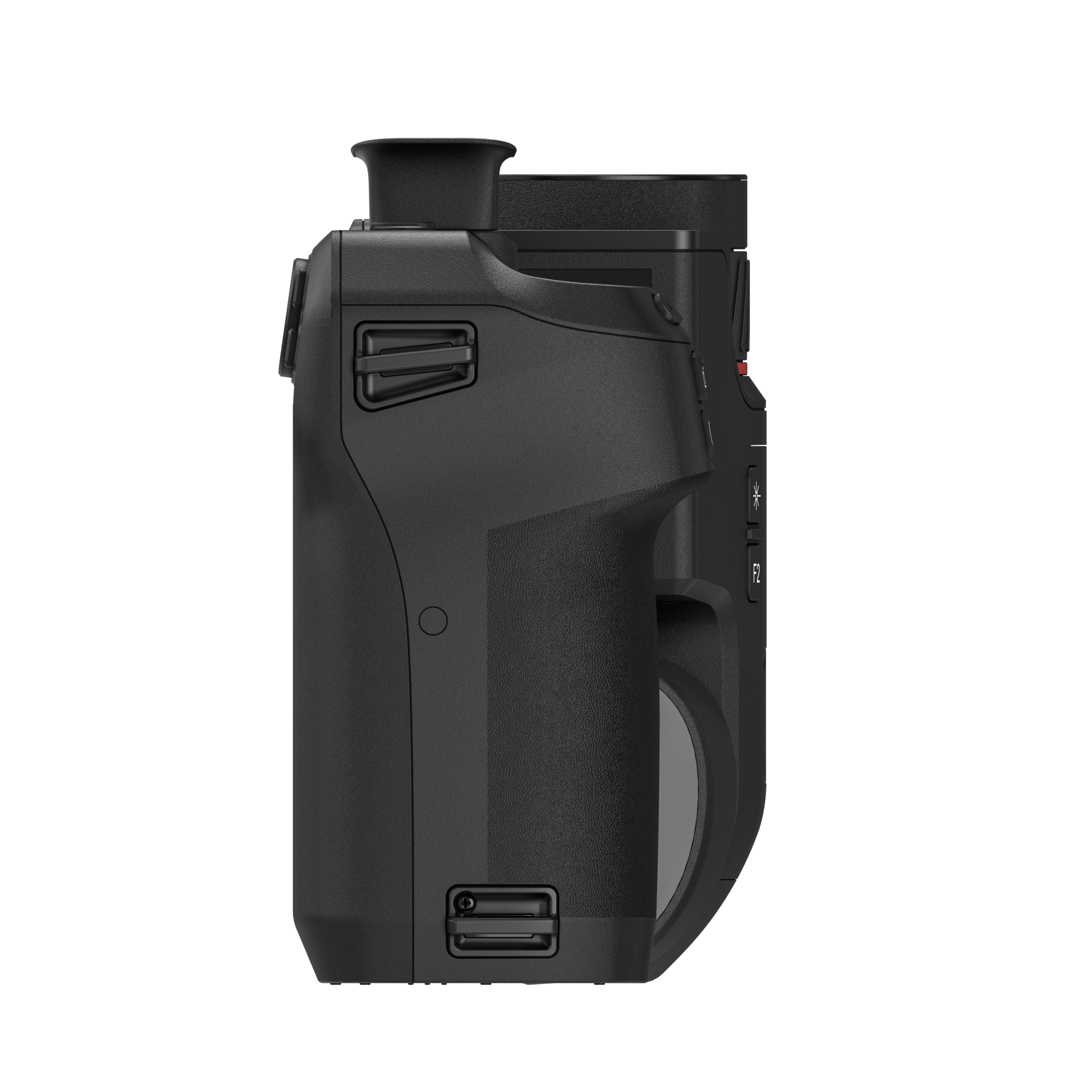

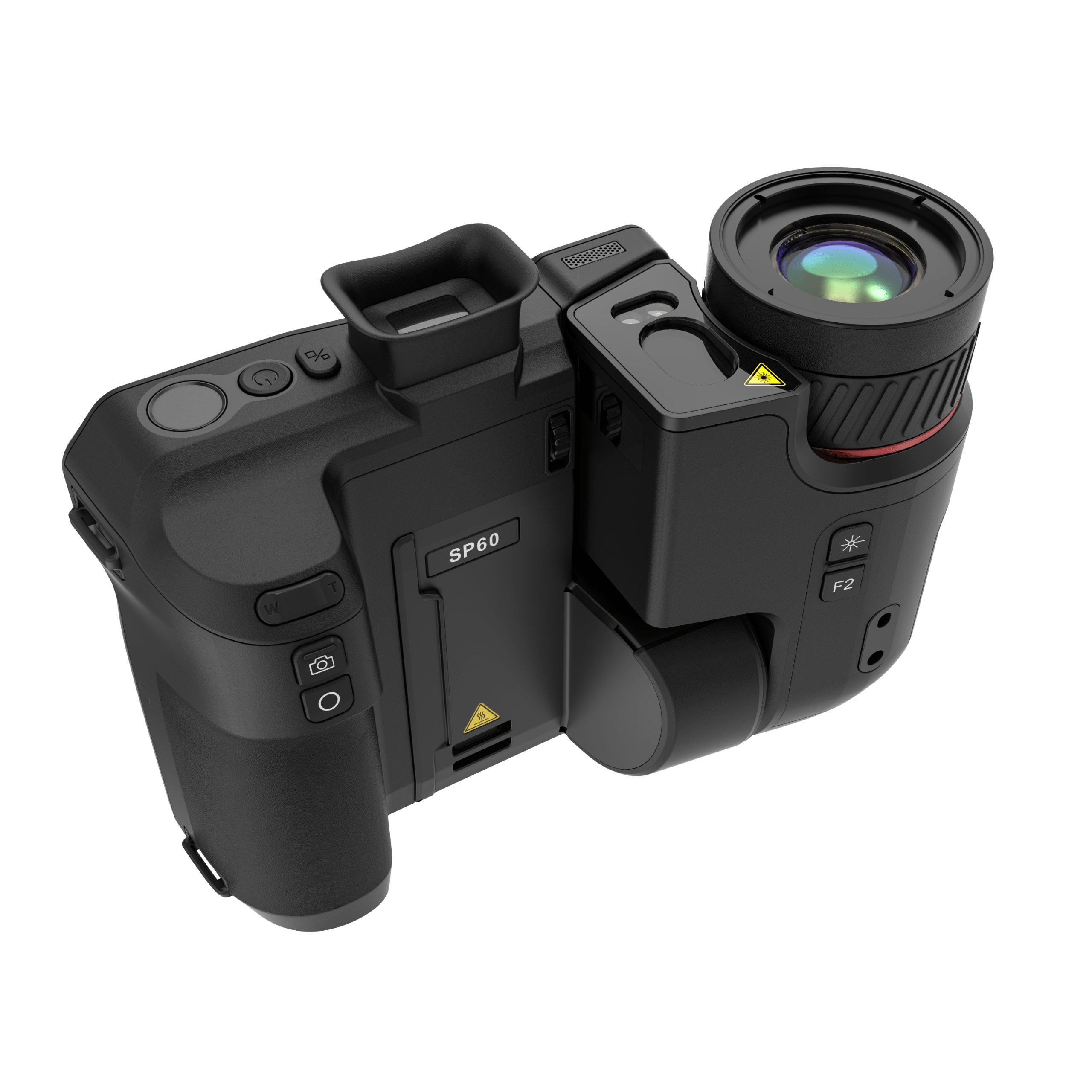

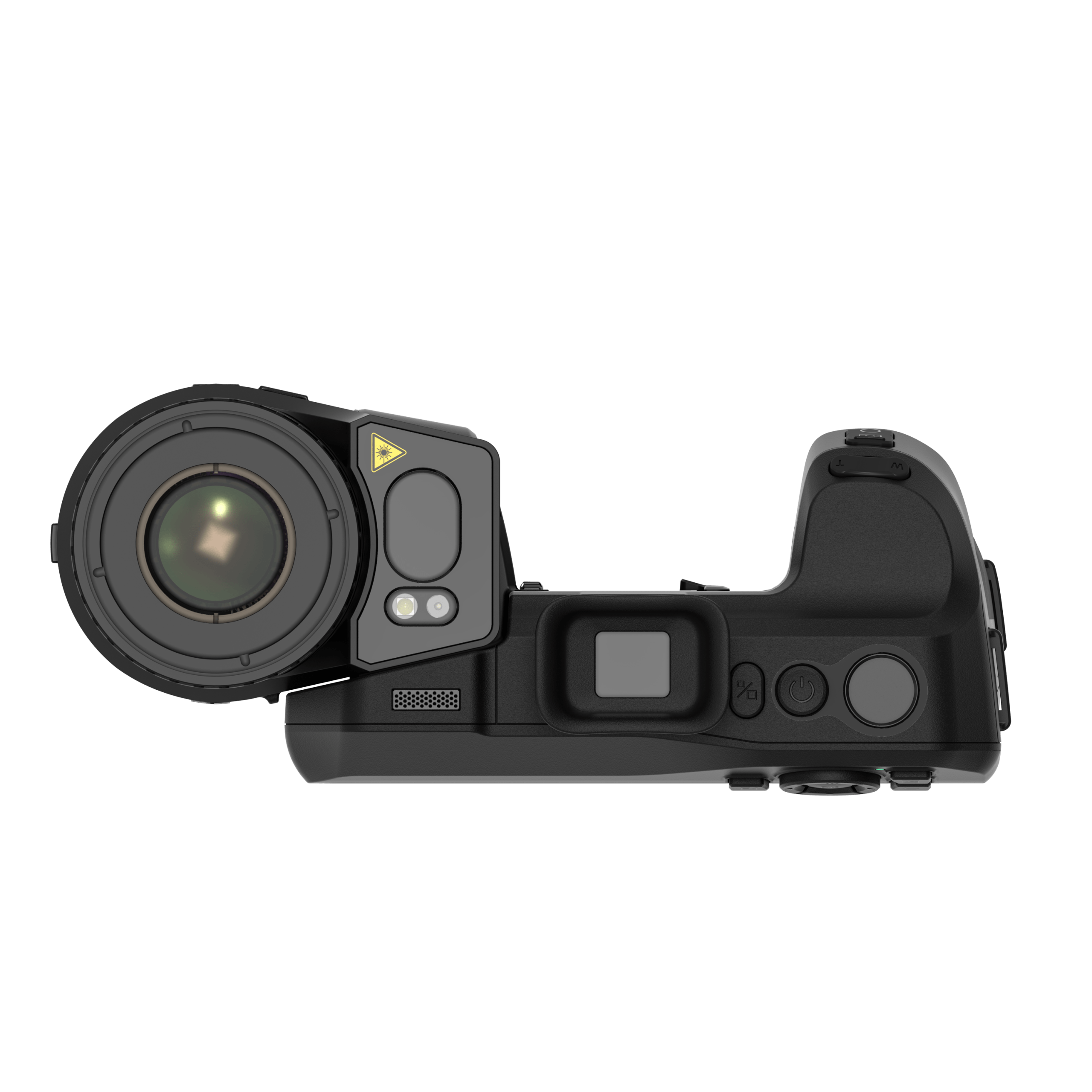

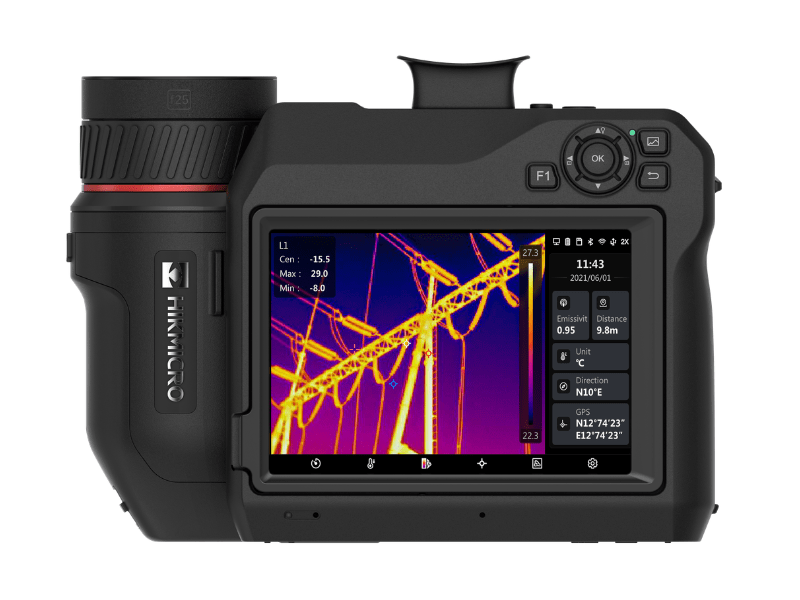

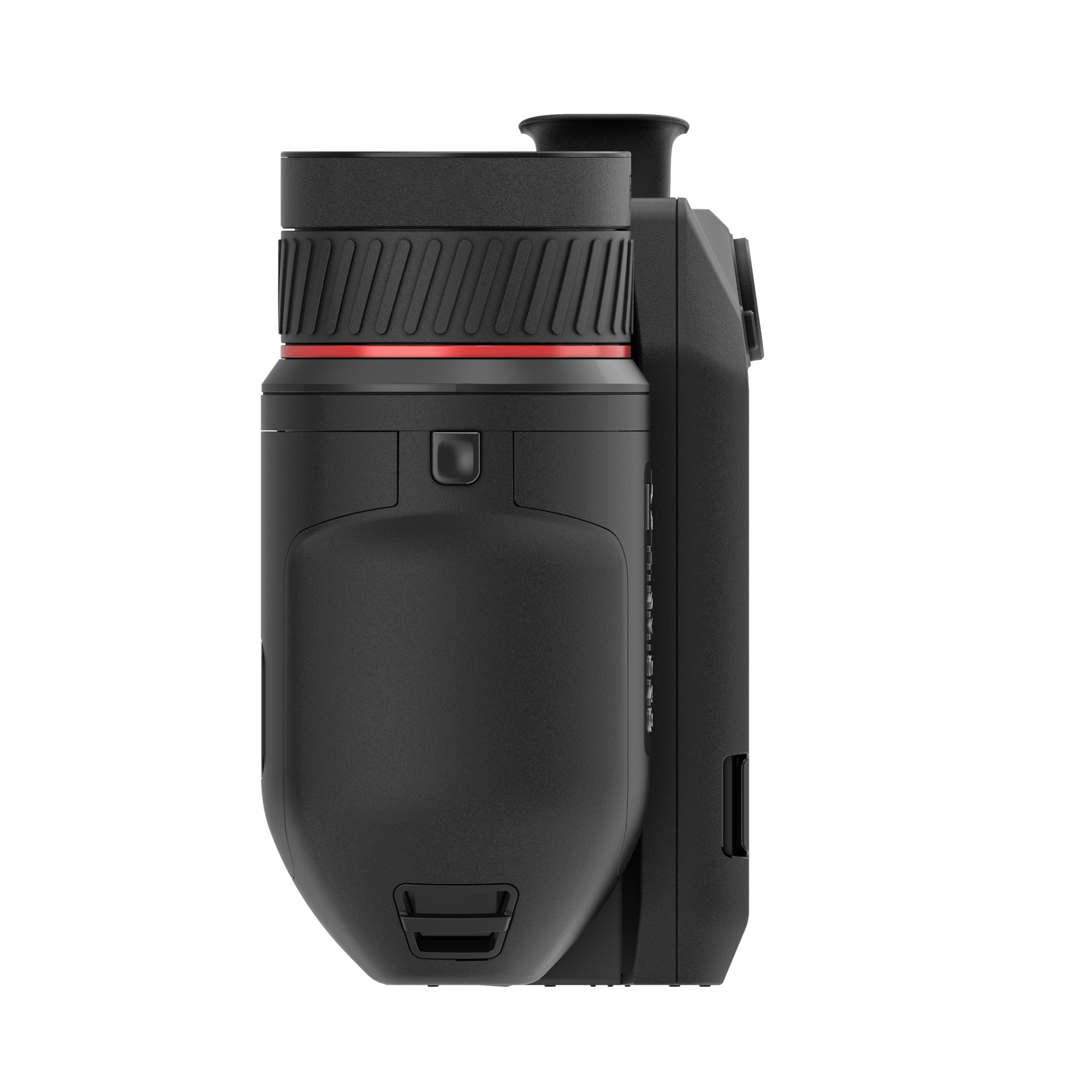

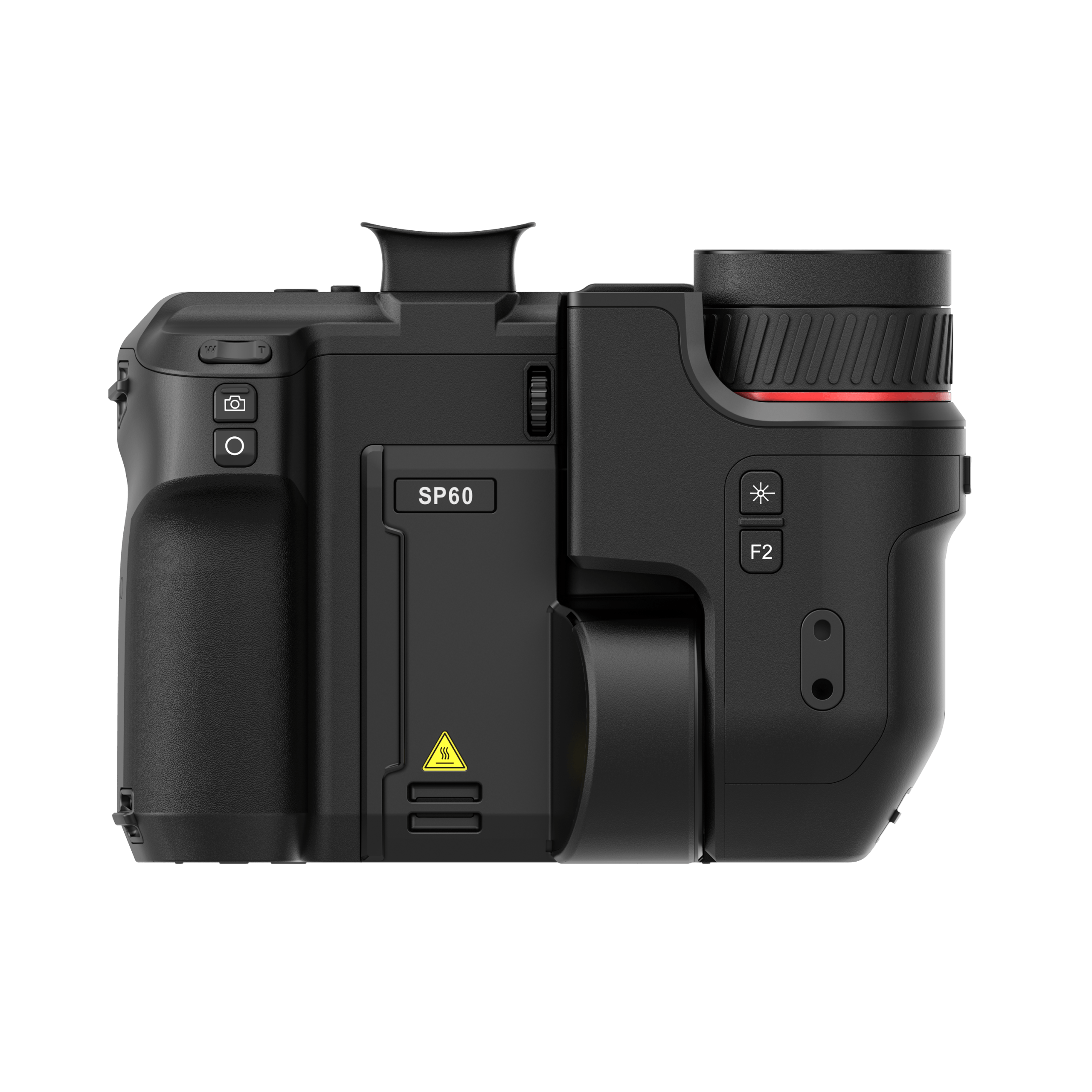

HIKMICRO SP60 (640×480) – Professional thermal imaging camera
The HIKMICRO SP60 is a high-performance portable thermal imaging camera designed for professional inspections in industrial maintenance, predictive maintenance, utilities, oil & gas, and electrical inspections.
Equipada con un detector térmico de 640 × 480 px, sensibilidad NETD < 30 mK y frecuencia de imagen de 30 Hz, permite obtener imágenes térmicas de alta calidad para localizar anomalías con gran nivel de detalle.
Its measurement range of up to 650 °C, combined with its 5-inch LCD touchscreen, OLED display, 180° rotating lens, and tiltable screen, make it an especially convenient tool for lengthy inspections, outdoor work, or inspections in hard-to-reach areas.
It also features advanced functions such as laser-assisted focusing, autofocus, GPS, a compass, continuous digital zoom from 1× to 12×, annotation tools, route inspection, and connectivity with HIKMICRO Viewer and HIKMICRO Analyzer for image analysis and report generation.
Main features
- 640 × 480 px resolution
- Sensibilidad térmica NETD < 30 mK
- 30 Hz frame rate
- Measuring range from -20 °C to 650 °C
- 8 MP front-facing camera
- 5-inch LCD touchscreen
- 1024 × 768-pixel OLED display
- 180° rotating lens and tilting screen
- Continuous digital zoom from 1× to 12×
- Manual, automatic, continuous, and laser-assisted focus
- GPS, compass, and laser rangefinder

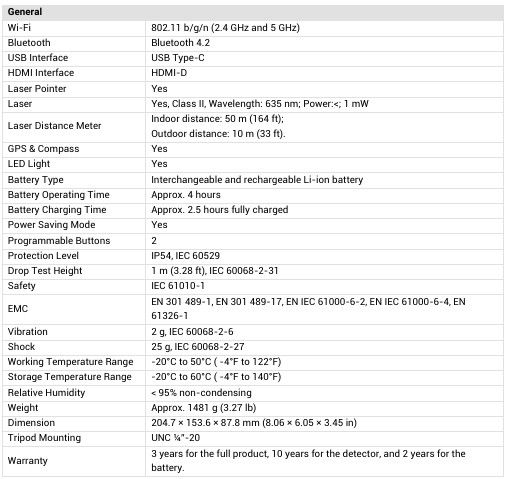

- Wi-Fi, Bluetooth, USB-C, and micro-HDMI connectivity
- IP54 protection
- Approximate battery life of 4 hours
Common applications
- Electrical maintenance
- Industrial Predictive Maintenance
- Inspection of substations and utilities
- Oil & Gas
- Inspection of electrical panels
- Diagnosis of mechanical equipment
- Building Inspection
- Thermal imaging inspection routes
Ref: HM-TP96-Q/W-SP60-L25, HM-TP96-Q/W-SP60-L50, HM-TP96-Q/W-SP60-L12, HM-TP96-Q/W-SP60-L8, HM-TP96-Q/W-SP60-L12/50, HM-TP96-Q/W-SP60-L8/25, HM-TP96-Q/W-SP60-L12/25, HM-TP96-Q/W-SP60-L25/50, HM-TP96-Q/W-SP60-L12/25/50, HM-TP96-Q/W-SP60-L8/12/25.
