Description

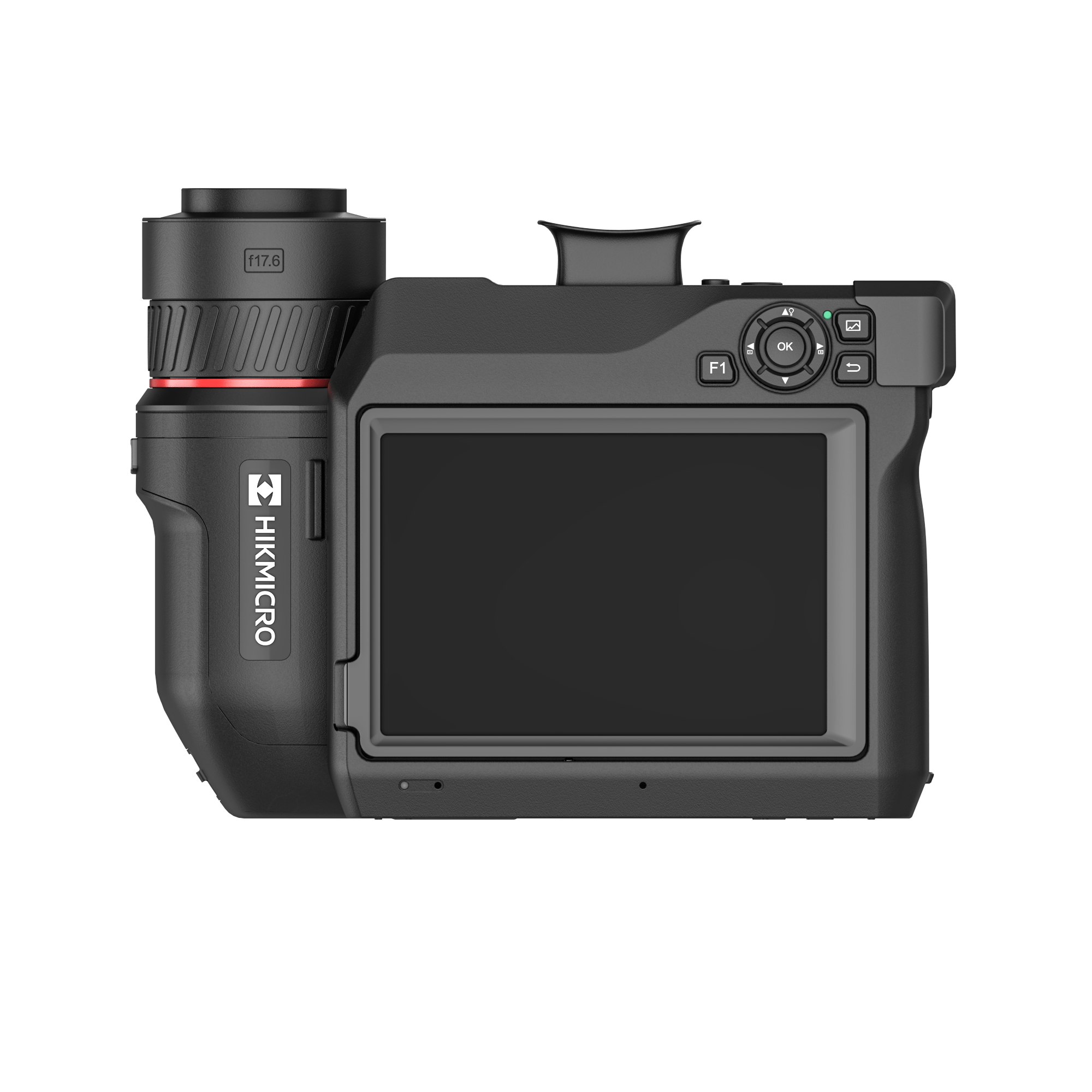

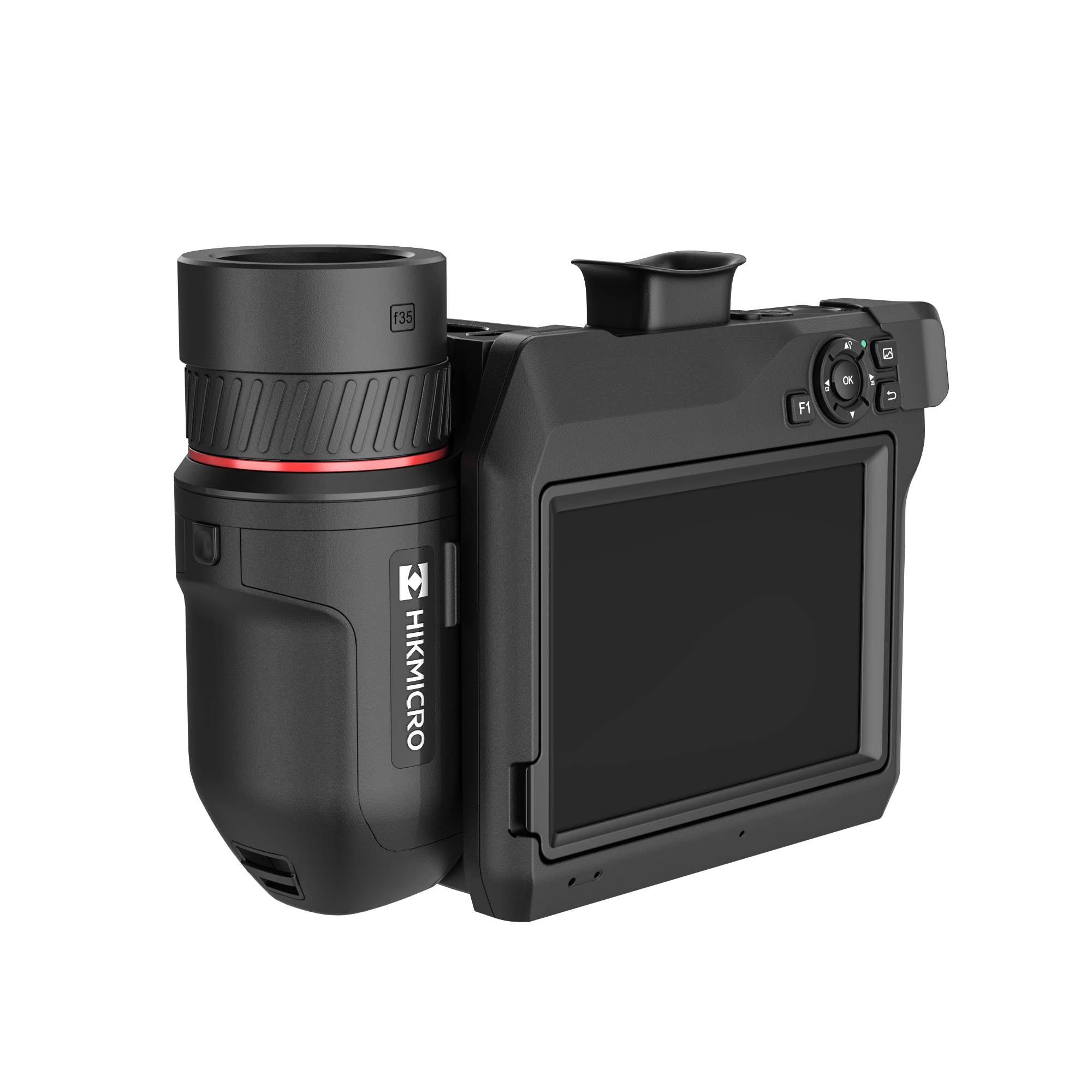

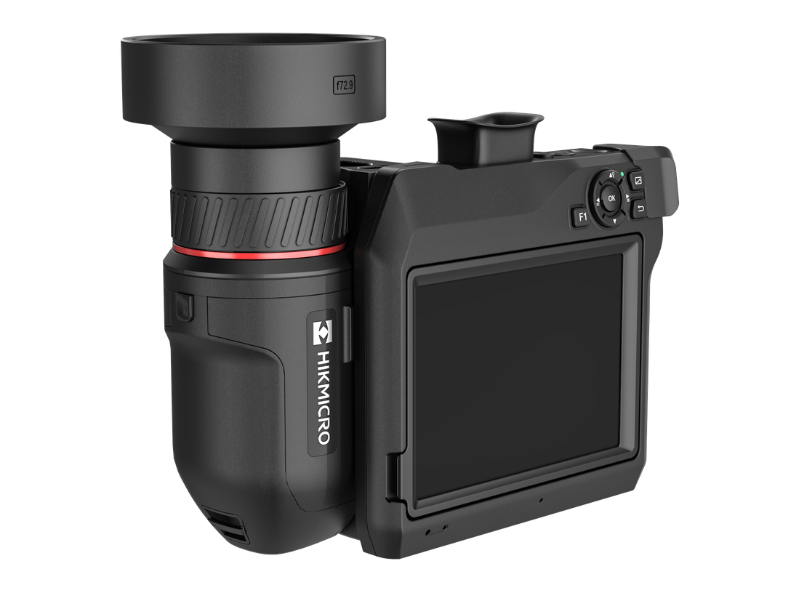

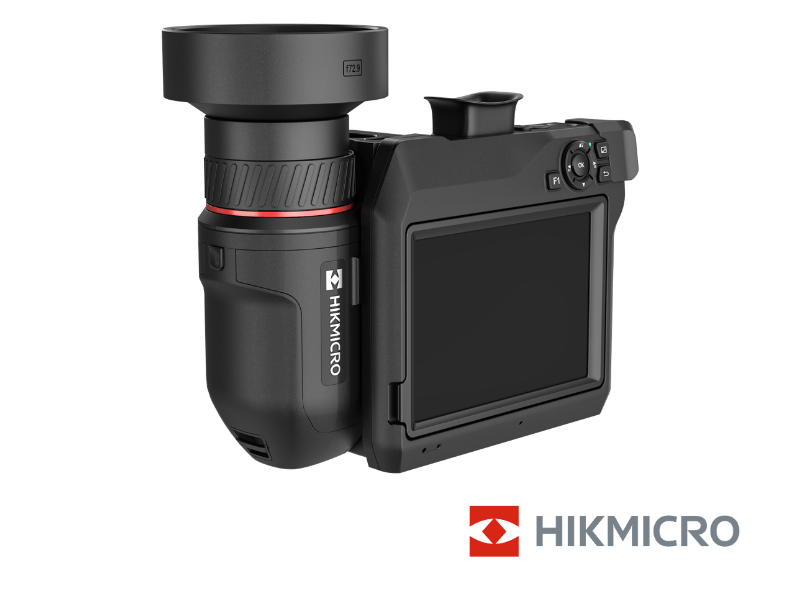

HIKMICRO SP120H (1280×1024) – Professional thermal imaging camera
The HIKMICRO SP120H is a high-end portable thermal imaging camera designed for demanding professional inspections in industrial maintenance, predictive maintenance, oil & gas, utilities, and advanced electrical inspections.
Con una resolución térmica de 1280 × 1024 px, sensibilidad NETD < 20 mK y frecuencia de imagen de 30 Hz, ofrece una calidad de imagen excepcional para analizar activos críticos con el máximo nivel de detalle.
Its measurement range of up to 2200 °C, combined with a 5.1-inch OLED touchscreen, an OLED electronic viewfinder, a 180° rotating lens, and a continuous digital zoom from 1× to 12×, makes it an ideal solution for complex industrial applications, high-temperature processes, and field inspections.
It also features advanced functions such as laser-assisted focusing, autofocus, GPS, a compass, a laser distance meter, route inspection, SuperScene+, and connectivity with HIKMICRO Viewer and HIKMICRO Analyzer for analyzing images, documenting inspections, and generating reports.
Main features
- Screen resolution of 1280 × 1024 px
- Sensibilidad térmica NETD < 20 mK
- 30 Hz frame rate
- Measuring range from -40 °C to 2200 °C
- 13 MP camera
- 5.1-inch OLED touchscreen
- 1024 × 768-pixel OLED display
- 180° rotating lens and tilting screen
- Continuous digital zoom from 1× to 12×
- Manual, automatic, continuous, touch, and laser-assisted focus
- GPS, compass, and laser rangefinder
- Wi-Fi, Bluetooth, USB-C, and micro-HDMI connectivity
- IP54 protection
- Approximate battery life of 4 hours
Common applications
- Industrial Predictive Maintenance
- Advanced Electrical Inspection
- Inspection of substations and utilities
- Oil & Gas
- High-temperature processes
- Diagnosis of mechanical equipment
- Inspection of Critical Assets
- Thermal imaging inspection routes
Ref: HM-TP9CH-W/W-SP120H-L25, HM-TP9CH-W/W-SP120H-L50, HM-TP9CH-W/W-SP120H-L12, HM-TP9CH-W/W-SP120H-L8, HM-TP9CH-W/W-SP120H-L12/25, HM-TP9CH-W/W-SP120H-L8/25, HM-TP9CH-W/W-SP120H-L25/50, HM-TP9CH-W/W-SP120H-L12/50, HM-TP9CH-W/W-SP120H-L8/12/25.
