Description

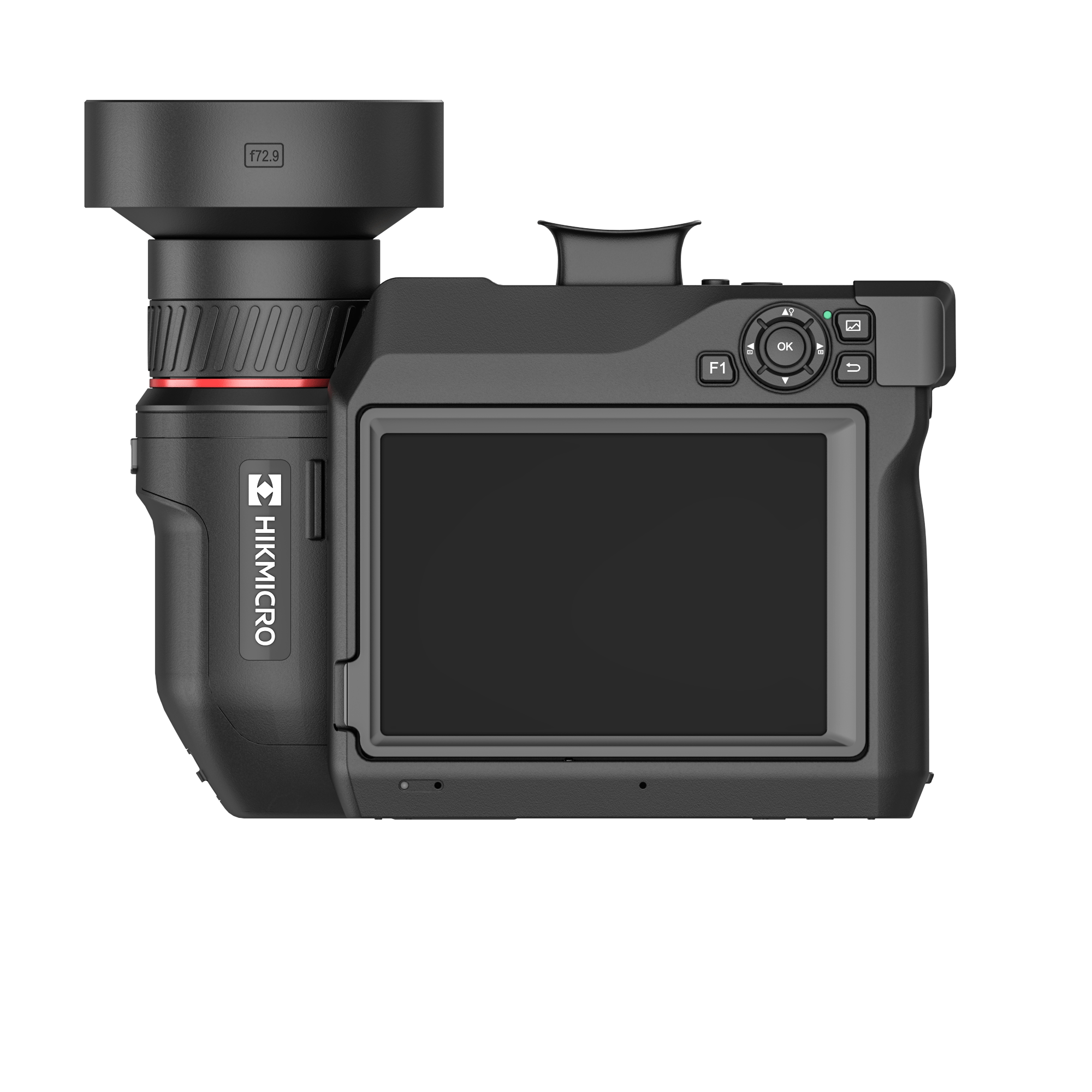

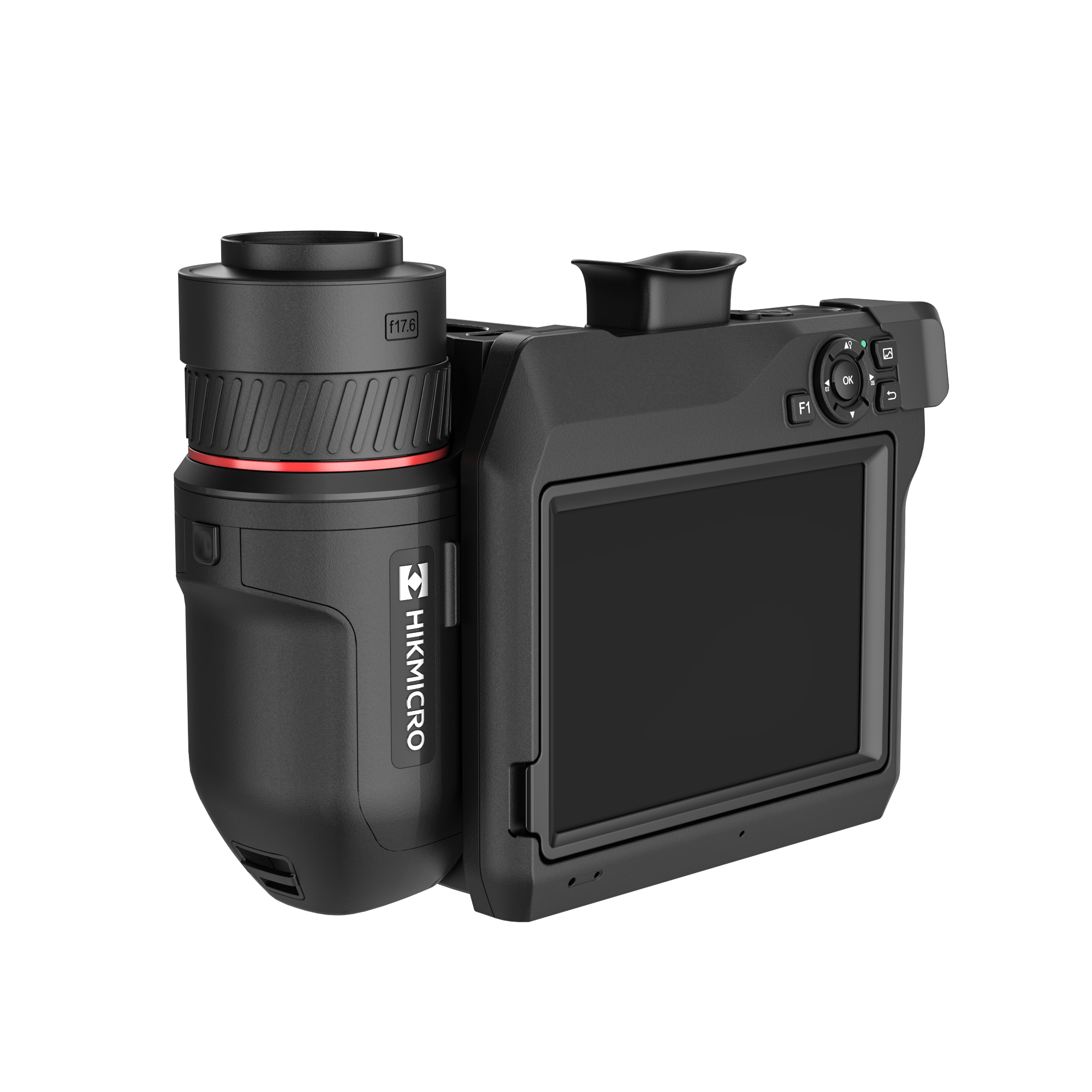

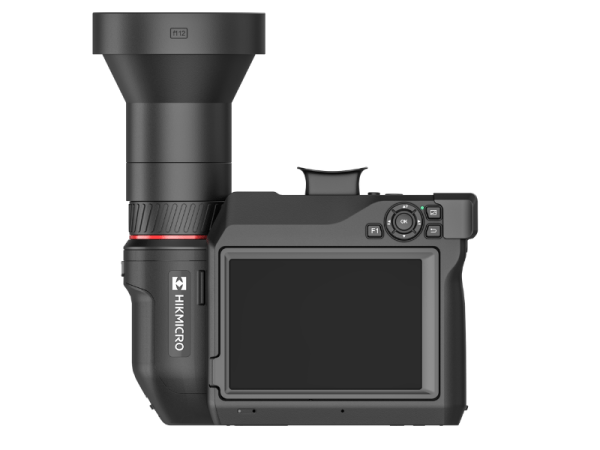

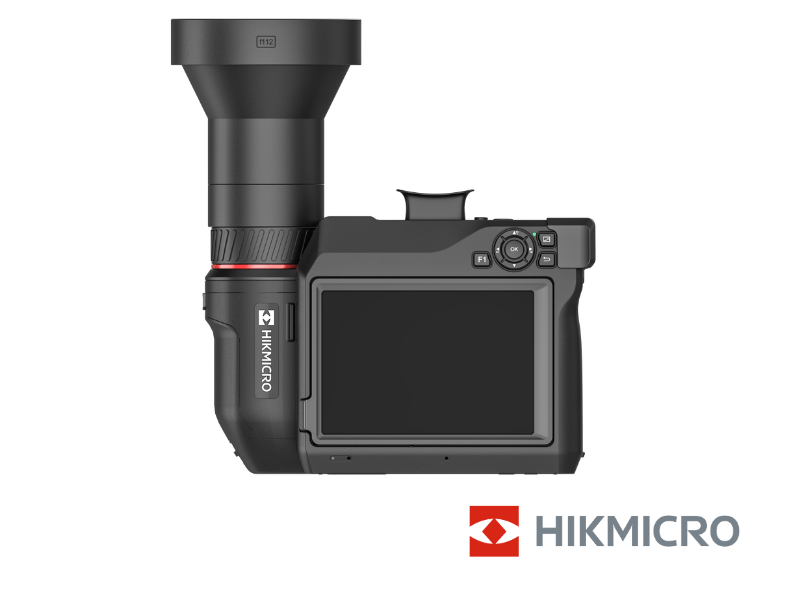

HIKMICRO SP100H (1040×832) – Professional thermal imaging camera
The HIKMICRO SP100H is a high-performance portable thermal imaging camera designed for demanding professional inspections in industrial maintenance, predictive maintenance, oil & gas, utilities, and advanced electrical inspections.
Con una resolución térmica de 1040 × 832 px, sensibilidad NETD < 20 mK y frecuencia de imagen de 30 Hz, ofrece una calidad de imagen excepcional para detectar anomalías térmicas con el máximo nivel de detalle.
Its measurement range of up to 2200 °C, combined with a 5.1-inch OLED touchscreen, an OLED electronic viewfinder, a 180° rotating lens, and a continuous digital zoom from 1× to 12×, makes it a particularly powerful solution for critical industrial applications and field inspection work.
It also features advanced functions such as laser-assisted focusing, autofocus, GPS, a compass, a laser rangefinder, route inspection, SuperScene+, and connectivity with HIKMICRO Viewer and HIKMICRO Analyzer for image analysis and report generation.
Main features
- Resolution: 1040 × 832 px
- Sensibilidad térmica NETD < 20 mK
- 30 Hz frame rate
- Measuring range from -40 °C to 2200 °C
- 13 MP camera
- 5.1-inch OLED touchscreen
- 1024 × 768-pixel OLED display
- 180° rotating lens and tilting screen
- Continuous digital zoom from 1× to 12×
- Manual, automatic, continuous, touch, and laser-assisted focus
- GPS, compass, and laser rangefinder
- Wi-Fi, Bluetooth, USB-C, and micro-HDMI connectivity
- IP54 protection
- Approximate battery life of 4 hours
Common applications
- Industrial Predictive Maintenance
- Advanced Electrical Inspection
- Inspection of substations and utilities
- Oil & Gas
- High-temperature processes
- Diagnosis of mechanical equipment
- Inspection of Critical Assets
- Thermal imaging inspection routes
Ref: HM-TP9AH-W/W-SP100H-L25, HM-TP9AH-W/W-SP100H-L50, HM-TP9AH-W/W-SP100H-L25/50, HM-TP9AH-W/W-SP100H-L12/25, HM-TP9AH-W/W-SP100H-L12/50, HM-TP9AH-W/W-SP100H-L8/25, HM-TP9AH-W/W-SP100H-L8/12/25
