FLIR T540-EST Thermal Imaging Camera

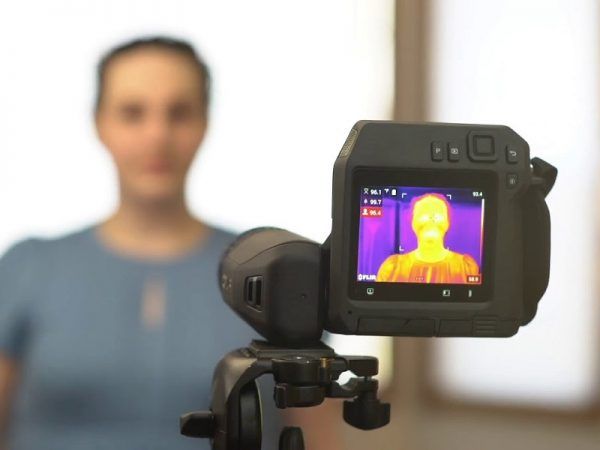

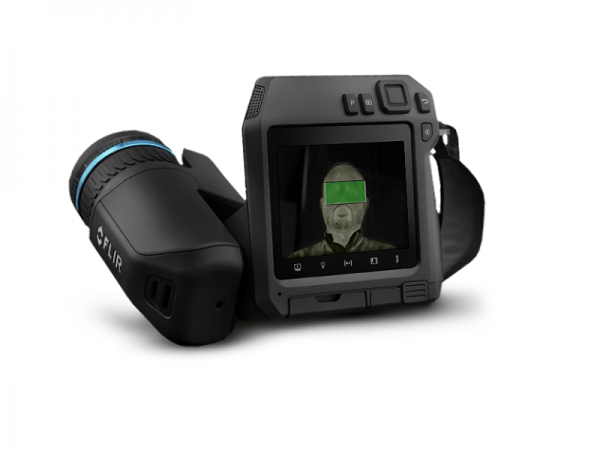

The FLIR T540-EST fixed thermal camera is a non-contact temperature measurement tool that acts as the first line of detection for potential fever cases. With a 464×348 pixel sensor, the FLIR-EST thermal imaging solution quickly identifies individuals with elevated skin temperature. The battery-powered FLIR T540-EST, which features an integrated touchscreen, can be quickly and easily configured for use in fixed or mobile detection setups. The integrated FLIR Screen-EST camera mode provides visual positioning guides, automatic sampling to keep temperature averaging up to date, and graphical pass/fail indicators for results, reducing the workload of detection station operators. With its compatibility with FLIR Screen-EST desktop software, integrated tripod mount and external power supply, this camera is a good solution for both mobile and fixed installations.

Plug&Play camera

Start measuring quickly thanks to short start-up time, simple video connections and the options of battery (four-hour battery life) or external power supply.

Accuracy and real-time detection

Optimum measurement accuracy with automatic environmental drift compensation, visual over/under graphic indicators and audible alarms.

Security and privacy

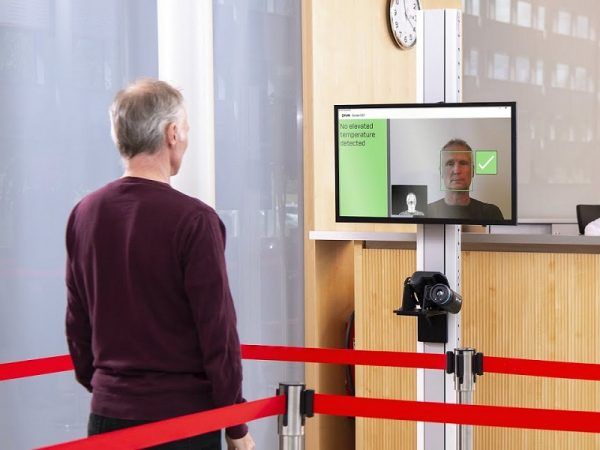

The FLIR-EST in-camera mode does not store images or personal information and allows respecting the social distance in the detection zones.

Ref. 79302-0302, 79303-0302

FLIR Screen-EST™ - Introduction

Technical Data

Imaging and optical data	(For 24º lens)
Infrared resolution	464 × 348 pixels
UltraMax (super-resolution)1	Yes
NETD	<40 mK @ 30°C (86°F)
Field of view	24° × 18°
Minimum focus distance	0.15 m (0.49 ft)
Minimum focus distance with MSX	0.5 m (1.64 ft)
Focal length	17 mm (0.67 in)
Spatial resolution (IFOV)	0.90 mrad/pixel
Lens identification	Automatic
f number	1.3
Image frequency	30 Hz
Focus	Continuous LDM One-shot LDM One-shot contrast Manual
Field of view match	Yes
Digital zoom	1-6× continuous

Detector data
Focal plane array/spectral range	Uncooled microbolometer/7.5-14 µm
Pitch detector	17 µm

Image presentation
Resolution	640 × 480 pixels (VGA)
Surface brightness (cd/m2)	400
Screen size	4 in
Viewing angle	80°
Color depth (bits)	24
Aspect ratio	4:3
Auto-rotation	Yes
Touchscreen	Optically bonded PCAP
Display technology	IPS
Cover glass material	Dragontrail®.
Programmable buttons	2
Viewfinder	No
Image adjustment	Automatic Automatic maximum Automatic minimum Manual

Image presentation modes
Infrared image	Yes
Visual image	Yes
MSX	Yes
Picture in picture	Resizable and movable
Gallery	Yes

Measurement
Camera temperature range	15 to 45°C (59 to 113°F) Accuracy ±0.3°C (±0.5°F) when used in Screening mode The camera will provide contrast from -20 to 120 °C (-4 to 248°F), but no temperature information will be provided

Alarm
Color alarm (isotherm)	Above
Measurement function alarm	Audible/visual alarms (above/below) on any selected measurement function

Set-up
Color palettes	Iron Gray Rainbow Arctic Lava Rainbow HC
Setup commands	Local adaptation of units, language, date, and time formats
Languages	21

Service functions
Camera software update	Using USB cable or SD card

Storage of images
Storage media	Removable memory: SD card
Time lapse (Periodic image storage)	10 seconds to 24 hours (infrared)
Remote control operation	Using USB cable or Wi-Fi
Image file format	Standard JPEG, measurement data included. Infrared-only mode

Image annotations
Voice	60 seconds with built-in microphone and speaker (and via Bluetooth) on still images and video
Visual image annotation	Yes
Image sketch	Yes: on infrared only
Sketch	From touchscreen
METERLiNK	Wireless connection (Bluetooth) to: FLIR meters with METERLiNK
GPS	Location data automatically added to every still image and first frame in video from built-in GPS

Video recording in camera
Radiometric infrared-video recording	RTRR (.csq)
Non-radiometric infrared-video recording	H.264 to memory card
Visual video recording	H.264 to memory card

Video streaming
Radiometric infrared-video streaming (compressed)	Over UVC
Non-radiometric video streaming (compressed: IR, MSX, visual, Picture in Picture)	H.264 (AVC) over RTSP (Wi-Fi) MPEG4 over RTSP (Wi-Fi) MJPEG over UVC and RTSP (Wi-Fi)
Visual video streaming	Yes

Digital camera
Resolution	5 MP with LED light
Focus	Fixed
Field of view	53° × 41°
Video lamp	Built-in LED light

Laser pointer
Laser pointer	Yes2
Laser alignment	Position is automatically displayed on the infrared image
Laser distance meter	Activated by dedicated button
Laser	Class 2, 0.05-40 m (0.16-131 ft) ±1% of measured distance

Data communication interfaces
Interfaces	USB 2.0, Bluetooth, Wi-Fi, DisplayPort
METERLiNK/Bluetooth	Communication with headset and external sensors
Wi-Fi	Peer to peer (ad hoc) or infrastructure (network)
Audio	Microphone and speaker for voice annotation of images
USB	USB Type-C: data transfer/video/power
USB standard	USB 2.0 High Speed
Video out	DisplayPort
Video connector type	DisplayPort over USB Type-C

Radio
Operating frequency	Bluetooth + EDR/LE: 2402-2480 MHz WLAN 2.4 GHz: 2412-2462 MHz WLAN 5 GHz: 5150-5350 MHz (DFS: only slave mode) Note that frequency band 5150-5350 MHz is for indoor use only, see national regulations.
RF output (EIRP)	Bluetooth + EDR/LE: < 10 dBm WLAN: < 17 dBm
Antenna	Integrated PIFA antenna (gain: maximum 1.4 dBi)

Power system
Battery type	Rechargeable Li-ion battery
Battery voltage	3.6 V
Battery operating time	> 4 hours at 25°C (77°F) with typical use
Charging system	In camera (AC adapter or 12 V from a vehicle) or two-bay charger
Charging time (using two-bay charger)	3.5 h to 90% capacity, on-screen indicator
Charging temperature	0°C to 45°C (32°F to 113°F), except for the Korean market: 10°C to 45°C (50°F to 113°F)
External power operation	AC adapter 90-260 V AC (50/60 Hz) or 12 V from a vehicle (cable with standard plug, optional)
Power management	Automatic shut-down and sleep mode

Environmental data
Operating temperature range	-15 to 50°C (5-122°F)
Storage temperature range	-40 to 70°C (-40 to 158°F)
Humidity (operating and storage)	IEC 60068-2-30/24 hours, 95% relative humidity, 25-40°C (77-104°F)/2 cycles
EMC	ETSI EN 301 489-1 (radio) ETSI EN 301 489-17 EN 61000-6-2 (immunity) EN 61000-6-3 (emission) FCC 47 CFR Part 15 Class B (emission)
Radio spectrum	ETSI AT 300 228 FCC Part 15.249 RSS-247 Issue 2
Encapsulation	IP 54 (IEC 60529)
Shock	25g (IEC 60068-2-27)
Vibration	2g (IEC 60068-2-6)
Safety	EN/UL/CSA/PSE 60950-1

Physical data
Weight (including battery)	1.3 kg (2.9 lb)
Size (L × W × H)	Lens vertical: 140 × 201.3 × 84.1 mm (5.5 × 7.9 × 3.3 in) Horizontal lens: 140 × 201.3 × 167.3 mm (5.5 × 7.9 × 6.6 in)
Battery weight	195 g (6.89 oz)
Battery size (L × W × H)	59 × 66 × 94 mm (2.3 × 2.6 × 3.7 in)
Tripod mounting	UNC ¼″-20
Housing material	PCABS with TPE, magnesium
Color	Black

Warranty and service
Warranty	http://www.flir.com/warranty/

Shipping information
Packaging, type	Cardboard box
Packaging, contents	Accessory box I: Power supply for battery charger Power supply, 15 W/3 A Printed documentation Remote operation button SD card (8 GB) USB 2.0 A to USB Type-C cable USB 2.0 A to USB Type-C cable with Power supply USB Type-C to HDMI and PD adapter USB Type-C to USB Type-C cable (USB 2.0 standard) Accessory box II: Lens cap strap Lens cleaning cloth Neck strap Battery (2 ea) Battery charger Hard transport case Infrared camera with lens Lens cap, front Lens cap, front and rear (only for extra lenses)
Packaging, weight	5.8 kg (12.8 lb)
Packaging, size	500 × 190 × 370 mm (19.7 × 7.5 × 14.6 in)
EAN-13	7332558026984
UPC-12	845188023027
Country of origin	Sweden
