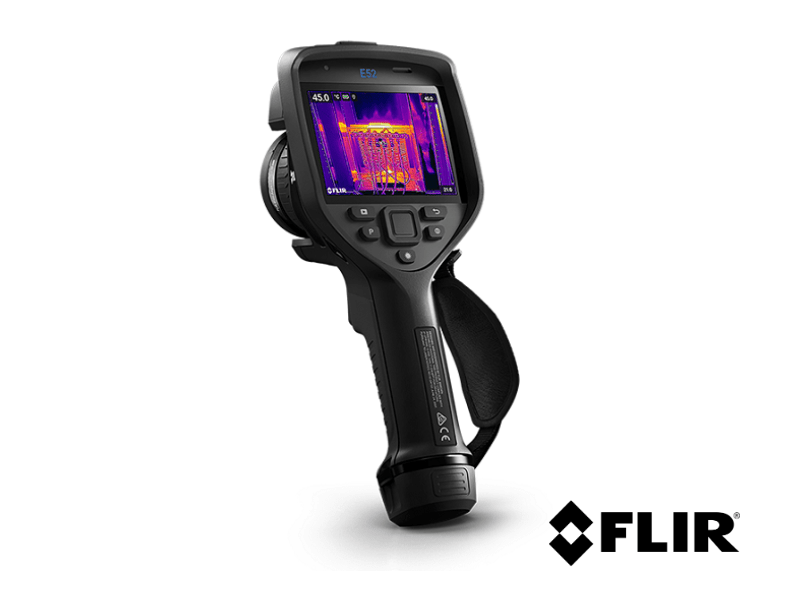

FLIR E52 Thermal Imaging Camera 24º lens

Consult price

Availability: 24/48 hours

Available for reservation

Ref: 84502-0301
Request a quote

Do you have any doubts?

Contact our technical-sales department

Apliter Renting

Finance your purchase from 125 €/month

X
X

Description

FLIR E52 thermal imaging camera
With advanced inspection features

The FLIR E52 thermal camera offers the resolution and sensitivity you need for basic condition monitoring, electrical/mechanical inspection, and building inspection. The 240 × 180 pixel thermal detector accurately measures temperatures up to 550°C and produces crisp, vibrant images that can be enhanced with patented FLIR MSX® technology for added detail and perspective. It integrates the "FLIR Inspection Route" feature, which can be used to plan and execute inspection routes to help inspectors organize themselves for large inspections.

FLIR-E52-Buy now

Better contrast for faster diagnosis

Use FLIR 1-Touch Level/Span to instantly enhance image contrast and highlight potential electrical or mechanical problems.

Features to help with diagnosis

It measures up to 550°C and displays the maximum/minimum temperature within a live area on the screen.

Report generation

The FLIR E52's integrated path-tracking software, automatic image upload to the cloud via FLIR Ignite, built-in microphone for voice annotation, and reporting features help optimize your workday.





Click here to download your free "12 things you need to know to choose a thermal imaging camera" guide.

We are Flir Gold Partner for Spain and Portugal.



Ref.84502-0301

Video Exx series

Technical data

Imaging and optical data

Infrared resolution
240× 180 pixels
NETD
<50 mK  +30°C (+86°F)
Field of view
24° × 18°
Minimum focus distance
0.15 m (0.49 ft.)
Minimum focus distance with MSX
0.5 m (1.64 ft.)
Focal length
17 mm (0.67 in.)
Spatial resolution (IFOV)
1.31 mrad/pixel
Lens identification
Automatic
f number
1.3
Image frequency
30 Hz
Focus
Manual
Field of view match
Yes
Digital zoom
1-4× continuous

Detector data

Focal plane array/spectral range
Uncooled microbolometer/7.5-14 µm
Pitch detector
17 µm

Image presentation

Resolution
640 × 480 pixels (VGA)
Surface brightness (cd/m2)
400
Screen size
4 in.
Viewing angle
80°
Color depth (bits)
24
Aspect ratio
4:3
Auto-rotation
Yes
Touchscreen
Optically bonded PCAP
Display technology
IPS
Cover glass material
Dragontrail®.
Programmable buttons
1
Viewfinder
No
Image adjustment
  • Automatic
  • Automatic maximum
  • Automatic minimum
  • Manual

Image presentation modes

Infrared image
Yes
Visual image
Yes
Thermal fusion
No
MSX
Yes
Picture in Picture
Centered infrared area on the visual image
Gallery
Yes

Measurement

Camera temperature range
  • -20 to 120°C (-4 to 248°F)
  • 0 to 550°C (32 to 1202°F)
Object temperature range and accuracy (for ambient temp. 15 to 35°C (59 to 95°F)
  • Range -20 to 120°C (-4 to 248°F):
    • -20 to 100°C (-4 to 212°F): ±2°C (±3.6°F)
    • 100 to 120°C (212 to 248°F): ±2%.
  • Range 0 to 550°C (32 to 1202°F):
    • 0 to 100°C (32 to 212°F): ±2°C (±3.6°F)
    • 100 to 550°C (212 to 1202°F): ±2%.

Screening mode

Sampling average mode
Recommended temperature range: 30 to 45°C (86 to 113°F) in stable room temperature
Accuracy (drift): ±0.3°C (±0.5°F)1

Inspection mode

FLIR Inspection route
Enabled in the camera

Measurement analysis

Spotmeter
3 in live mode
Area
1 in live mode
Automatic hot/cold detection
Auto-maximum/minimum markers within area
Measurement presets
  • No measurements
  • Center spot
  • Hot spot
  • Cold spot
  • 3 spots
  • Hot spot-Spot
Difference temperature
Yes: as preset (Hot spot-Spot)
Reference temperature
Yes: in preview mode
Emissivity correction
Yes: variable from 0.01 to 1.0 or selected from materials list
Measurement corrections
Yes
External optics/windows correction
Yes

Alarm

Color alarm (isotherm)
  • Above
  • Below
  • Interval
  • Condensation (moisture/humidity/dewpoint)
  • Insulation
Measurement function alarm
Audible/visual alarms (above/below)

Set-up

Color palettes
  • Iron
  • Gray
  • Rainbow
  • Arctic
  • Lava
  • Rainbow HC
Setup commands
Local adaptation of units, language, date and time formats
Languages
21

Service functions

Camera software update
Using USB cable or SD card

Storage of images

Storage media
Removable memory; SD card (8 GB)
Remote control operation
Using USB cable or Wi-Fi
Image file format
Standard JPEG, measurement data included. Infrared-only mode

Image annotations

Voice
60 seconds built-in microphone and speaker (and via Bluetooth) on still images and video
Text
Text from predefined list or soft keyboard on touchscreen
Visual image annotation
Yes
Image sketch
Yes: on infrared images only
Sketch
From touchscreen
METERLiNK
Wireless connection (Bluetooth) to:
FLIR meters with METERLiNK
Compass
Yes
Laser distance meter information
No
Area measurement information
No
GPS
Yes: location data automatically added to every still image and the first frame in video from built-in GPS

Video recording in camera

Radiometric infrared-video recording
RTRR (.csq)
Non-radiometric infrared-video recording
H.264 to memory card
Visual video recording
H.264 to memory card

Video streaming

Radiometric infrared-video streaming (compressed)
Over UVC
Non-radiometric video streaming (compressed: IR, MSX, visual, Picture in Picture)
  • H.264 (AVC) over RTSP (Wi-Fi)
  • MPEG4 over RTSP (Wi-Fi)
  • MJPEG over UVC and RTSP (Wi-Fi)
Visual video streaming
Yes

Digital camera

Resolution
5 MP with LED light
Focus
Fixed
Field of view
53° × 41°
Video lamp
Built-in LED light

Laser pointer

Laser pointer
Yes

Data communication interfaces

Interfaces
USB 2.0, Bluetooth, Wi-Fi, DisplayPort
METERLiNK/Bluetooth
Communication with headset and external sensors
Wi-Fi
Peer to peer(ad hoc) or infrastructure (network)
Audio
Microphone and speaker for voice annotation of images
USB
USB Type-C: data transfer/video/power
USB standard
USB 2.0 High Speed
Video out
DisplayPort
Video connector type
DisplayPort over USB Type-C

Radio

Operating frequency
Bluetooth + EDR/LE: 2402-2480 MHz
WLAN 2.4 GHz: 2412-2462 MHz
WLAN 5 GHz: 5150-5350 MHz (DFS: only slave mode)
Note that frequency band 5150-5350 MHz is for indoor use only, see national regulations.
RF output (EIRP)
Bluetooth + EDR/LE: < 10 dBm
WLAN: < 17 dBm
Antenna
Integrated PIFA antenna (gain: maximum 1.4 dBi)

Power system

Battery type
Rechargeable Li-ion battery
Battery voltage
3.6 V
Battery operating time
> 2.5 hours at 25°C (68°F) and typical use
Charging system
In camera (AC adapter or 12 V from a vehicle) or two-bay charger
Charging time (using two-bay charger)
2.5 hours to 90% capacity with charging status indicated by LEDs
Charging temperature
0°C to +45°C (+32°F to +113°F), except for the Korean market: +10°C to +45°C (+50°F to +113°F)
External power operation
AC adapter 90-260 V AC, 50/60 Hz, or 12 V from a vehicle (cable with standard plug-optional)
Power management
Automatic shut-down and sleep mode

Environmental data

Operating temperature range
-15 to +50°C (5-122°F)
Storage temperature range
-40 to +70°C (-40 to +158°F)
Humidity (operating and storage)
IEC 60068-2-30/24 hours/95% relative humidity 25-40°C (77-104°F)/two cycles
EMC
  • ETSI EN 301 489-1 (radio)
  • ETSI EN 301 489-17
  • EN 61000-6-2 (immunity)
  • EN 61000-6-3 (emission)
  • FCC 47 CFR Part 15 Class B (emission)
Radio spectrum
  • ETSI AT 300 328
  • FCC Part 15.249
  • RSS-247 Issue 2
Encapsulation
IP 54 (IEC 60529)
Shock
25g (IEC 60068-2-27)
Vibration
2g (IEC 60068-2-6)
Drop
Designed for 2 m (6.6 ft.)
Safety
EN/UL/CSA/PSE 60950-1

Physical data

Weight (including battery)
1 kg (2.2 lb.)
Size (L × W × H)
278.4 × 116.1 × 113.1 mm (278.4 × 116.1 × 113.1 mm) (11.0 × 4.6 × 4.4 in.)
Battery weight
140 g (4.9 oz.)
Battery size (L × W × H)
150 × 46 × 55 mm (5.9 × 1.8 × 2.2 in.)
Tripod mounting
UNC ¼″-20
Housing material
PCABS with TPE, magnesium
Color
Black

Warranty and service

Warranty

Shipping information

Packaging, type
Cardboard box
Packaging, contents
  • Accessory Box I:
    • Power supply for battery charger
    • Power supply, 15 W/3 A
    • Printed documentation
    • SD card (8 GB)
    • USB 2.0 A to USB Type-C cable, 1.0 m
    • USB Type-C to HDMI adapter, standard specification UH311
    • USB Type-C to USB Type-C cable (USB 2.0 standard), 1.0 m
  • Accessory box II:
    • Accessory box III:
      • Front protection fastener
      • Hand strap bracket, left
      • Hand strap bracket, right
      • Screws
      • Torx T10 wrench
    • Carabiner hook
    • Front protection
    • Hand strap
    • Lanyard strap, camera
    • Lens cap strap
    • Wrist strap
  • Battery (2 ea)
  • Battery charger
  • FLIR Thermal Studio Starter
  • Hard transport case
  • Infrared camera with lens
  • Lens cap, front
Packaging, weight
5.4 kg (11.9 lb.)
Packaging, size
500 × 190 × 370 mm (19.7 × 7.5 × 14.6 in.)
EAN-13
4743254004733
UPC-12
845188022730
Country of origin
Estonia

FLIR Exx Series - Comparison

FLIR E52 Thermal Imaging Camera - Datasheet

FLIR E52 Thermal Imager - User's Manual

FLIR E52 Thermal Imaging Camera - Quick Start Guide

Box contents

  • FLIR E52 infrared camera with 24° lens
  • Battery (2 units)
  • Battery charger with power supply
  • Rigid carrying case
  • Front lens and light protection
  • Straps (hand and wrist)
  • Belts
  • Lens covers (front and rear)
  • Lens cleaning cloth
  • 15 W/3 A power supply
  • Printed documentation
  • 8 GB SD card
  • Torx screwdriver
  • Cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C)
