Description

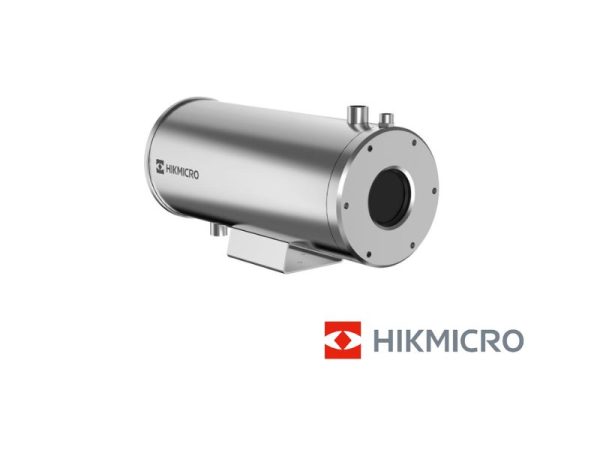

HIKMICRO HF310 – High-temperature, cooled, fixed thermal camera for extreme environments
The HIKMICRO HF310 is a heavy-duty industrial fixed thermal camera designed to operate in high ambient temperature environments (up to 200 °C) using air or liquid cooling systems. Constructed of SUS304 stainless steel and featuring IP67 protection, it incorporates a 384 × 288-pixel VOx thermal sensor with a thermal sensitivity (NETD) of ≤ 30 mK and a smooth frame rate of 50 fps. It offers multiple focal length options (3 mm, 4 mm, 8 mm, 10 mm, and 18 mm), a wide temperature measurement range (-20 °C to 650 °C), and advanced integration via industrial protocols such as Modbus TCP/RTU, ONVIF, and real-time radiometric transmissions.
Main features
IR resolution: 384 × 288 pixels (pixel size 12 μm)
Thermal sensitivity (NETD): ≤ 30 mK (@ 25 °C, F# = 1.0)
Frame rate: 50 fps
Focal length options: 3 mm, 4 mm, 8 mm, 10 mm, and 18 mm
Temperature measurement range: -20 °C to 150 °C and 0 °C to 650 °C (accuracy ±2 °C / ±2%)
High-temperature resistance: Operates at ambient temperatures up to 200 °C using liquid or air cooling (SUS304 stainless steel enclosure)
Smart Thermal Rules: Up to 21 simultaneous rules (21 points, 21 regions, and 1 line)
Display and palettes: 18 color palettes available and 2x, 4x, 8x digital zoom
IP67 protection rating and 12 VDC power supply (max. 3.2 W)
Connectivity and Interfaces: Gigabit Ethernet RJ45, RS-485 (Modbus RTU/ASCII support), integrated relay alarm input/output, and CVBS output
Common applications
Temperature monitoring inside or near industrial furnaces, boilers, and foundries
Continuous monitoring of steelmaking, glass manufacturing, and cement production processes
Inspection of Critical Machinery in Environments with Extreme Ambient Temperatures
Automated Fire Prevention Systems and Industrial Radiometric Monitoring
Ref: HF310
