Description
FLIR GIS-320 OGI thermal imager
for gas detection
Workswell GIS-320 thermal camera for mobile platforms, including unmanned aerial systems and ground vehicles (UAS/UGV).
This thermal imaging camera for gas detection is the perfect solution to safely detect methane as well as more than 200 hydrocarbons and VOC emissions resulting from oil and gas production, transportation and use.
The Workswell GIS-320 IR camera is built around a cooled infrared detector that provides industry-leading gas detection capability and the sensitivity needed to meet the U.S. EPA OOOOa methane standard.
The Workswell GIS-320 thermal imaging camera can detect leaks in hard-to-reach areas or inspect wellheads spread over large areas in a single pass, making this OGI system a valuable tool for any leak detection and repair (LDAR) program.
Gas detection from a safe distance
- Reduce health and safety risks by adding the Workswell GIS-320 thermal camera to LDAR programs.
- Discover hidden gas leaks with 320 × 240 pixel resolution
- Resolución IR y sensibilidad a la temperatura de <15 mK
- Record both visible and thermal video with up to 10x optical zoom (visual camera)
- Visualize more than 200 gases, including methane, benzene and ethylene
- High sensitivity cooled FLIR detector with a spectral range between 3.2-3.4 µm

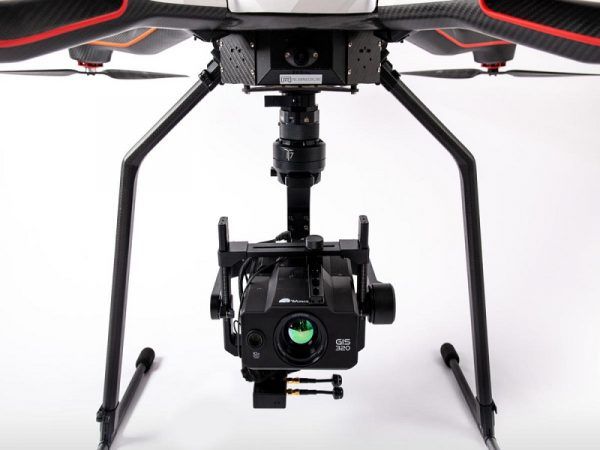

Seamless integration with UAS/UGV platforms
- Remote inspection of wellheads, pipelines, tank batteries, etc.
- Linking to popular RC control systems with industry-standard connections

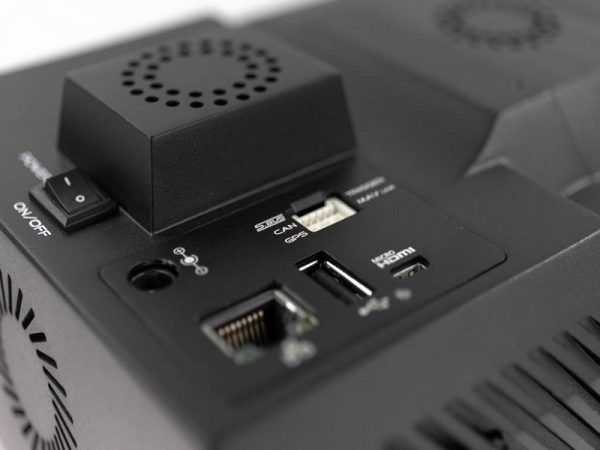

- Easy integration through the use of inputs/outputs, including HDMI, SBUS, CAN and GPS-MavLINK
- Compatible with Gremsy T7 threaded brackets or ¼-20 threaded brackets
Complies with standards
- See small leaks with FLIR's patented noise reduction filter and high sensitivity mode (HSM)
- Verify leak location by viewing visible and thermal spectrum images simultaneously
- Set up and start inspecting faster with FLIR's standard OGI system interface
Ref. GIS-320-14, GIS-320-24
