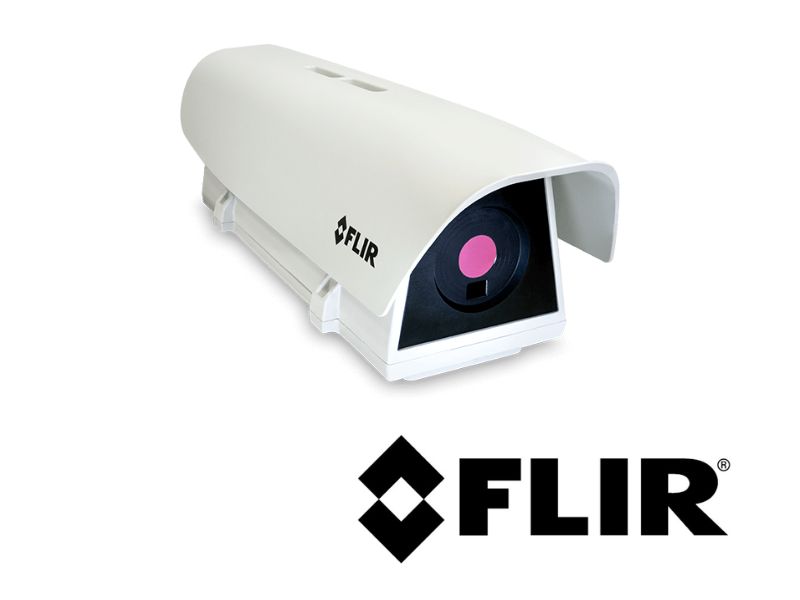

FLIR A700f Image Streaming Thermal Camera - 24°+14° DFOV Lens

FLIR A700f Image Streaming Thermal Camera - 24°+14° DFOV Lens

Consult price

Availability: 11-15 days

Ref: 85908-0601
Request a quote
X
X

Description

FLIR A700f

The FLIR A700f network thermal camera is designed for monitoring outdoor conditions and early fire detection in demanding industrial environments. Housed in a rugged, environmentally-sealed enclosure, it combines high-precision radiometric image analysis with edge computing and Industrial IoT (IIoT) technologies for on-device alarm processing.

Thanks to its open architecture and compatibility with industrial protocols (Modbus TCP, MQTT, RESTful API), the FLIR A700f integrates easily into VMS platforms, HMI/SCADA systems, and automation networks, allowing for independent or simultaneous viewing of thermal and visible imagery.

Main features

  • Edge Computing and IIoT: On-device processing capabilities for temperature analysis and alarm triggering without the need for a dedicated server.

  • Precision thermography: Accuracy of ±2 °C (or ±2%) with a frame rate of 30 Hz for real-time capture of thermal events.

  • Reinforced outer casing: Industrial-grade protective structure designed to withstand harsh weather conditions and exposure to the elements.

  • Extensive industrial connectivity: Supports MQTT (push), Modbus TCP (server), RESTful API, and Ethernet/IP protocols, as well as alarm notification via email or FTP.

  • VMS and HMI/SCADA Integration: Multi-format video transmission (H.264, MPEG-4, MJPEG) and JPEG-LS compressed radiometric stream.

  • Isolated digital I/O: 2 opto-isolated digital inputs and 3 solid-state optocoupler outputs (includes a dedicated output for fault signaling).

Common applications

  • Early Fire Detection in Recycling Plants, Waste Storage Facilities, and Combustible Material Warehouses

  • Continuous monitoring of conditions at electrical substations, transformers, and solar power plants

  • Monitoring of Critical Outdoor Assets and Infrastructure

Compatibility: Compatible with video management systems (VMS), industrial HMI/SCADA software, and IoT platforms through open standards and built-in Ethernet protocols.

Ref. FLIR A700f

Technical data

System Overview

SpecificationsA500fA700f
IR resolution464 × 348 (161,472 pixels)640 × 480 (307,200 pixels)
Visual Resolution1280 × 960 (Does not apply to the 80° version)
Pitch Detector17 µm12 µm
MSX® and FSX®Yes (MSX is not available for the 80° version)
Available Fields of ViewAthermal lens: 14°, 24°, 42°, 80°, FlexView® dual FOV (24°/14°), FlexView® dual FOV (42°/24°)
Focal Plane Array [FPA]Uncooled microbolometer
ApproachMotorized, manual, and on-demand automatic focusing system (scene contrast method)
Image Frequency30 Hz
Image StorageRecords up to 100 radiometric JPEGs from FLIR; storage triggered by: an alarm, a schedule, or user interaction (via the camera's website)

Measurement

SpecificationsA500fA700f
Object Temperature Range-20 to 120 °C (-4 to 248 °F); 0 to 650 °C (32 to 1202 °F); 300 to 1500 °C (572 to 2732 °F)-20 to 120 °C (-4 to 248 °F); 0 to 650 °C (32 to 1202 °F); 300 to 2000 °C (572 to 3632 °F)
Accuracy±2 °C (±3.6 °F) or ±2% of the reading, for ambient temperatures between 15 and 35 °C (59 to 95 °F) and object temperatures above 0 °C (32 °F)
ReadingMeasurement resolution: Ethernet/IP, Modbus TCP server (pull), Modbus TCP client (push), MQTT (push), REST API (GET/POST), measurements and still images (radiometric JPEG, 640 × 480 visual, 1280 × 960 visual), web interface
Automatic Heat and Cold DetectionMaximum and minimum temperature values and positions displayed in the area, polygon, line, or polyline box
Default Measurement SettingsYes
Measuring Tools10 point measurements, 10 mask boxes or polygons, 3 Deltas (difference between any value and a reference or external block), 2 isothermal calculations (upper/lower/interval), 2 ISO coverage areas, 1 reference temperature, 2 lines, 1 polyline; up to 12 measurement functions simultaneously
Web InterfaceYes
Multiple TransmissionYes

Alarm

Alarm FunctionsFor any selected measurement function, digital input and internal chamber temperature
Alarm OutputDigital output, email (SMTP) (push), Ethernet/IP, file transfer (FTP) (push), Modbus TCP server (pull), MQTT (push), RESTful API query (pull), and image or video storage
CodedVideo streaming: H.264, MPEG-4, or MJPEG
Radiometric streaming: Compressed JPEG-LS over RTSP

Digital Input/Output

Connector TypeTerminal block inside the housing
Insulation Voltage500 VRMS
Digital Input, PurposeNUC, NUC disabled, alarm
Digital Tickets2× with optical isolation, Vin (low) = 0 to 1.5 V, Vin (high) = 3 to 25 V
Digital Output, PurposeAs an alarm function, output to an external device, Fault (NC)
Digital Outputs3× optically isolated, 0 to 48 V DC, 350 mA max., solid-state optocoupler;
1× specifically designated as a fault output (NC)
Cable Clamps1x M12, 1x M16, 1x M20

Ethernet

EthernetFor control, performance, appearance, and power
Ethernet communicationFLIR TCP/IP plug-in
Ethernet Connector TypeRJ45 port with an IP67 rating
Ethernet InterfaceWired
Power over EthernetIEEE 802.3af Class 3 PoE
Supported ProtocolsEthernet/IP, IEEE 1588, Modbus TCP, MQTT, SNMP, TCP, UDP, SNTP, RTSP, RTP, HTTP, HTTPS, ICMP, IGMP, SFTP (server), FTP (client), SMTP, DHCP, MDNS (Bonjour), uPnP (PoE injector sold separately)

Environmental, Physical, and System Data

Operating Temperature Range-30 to 50 °C (–22 to 122 °F)
Electromagnetic CompatibilityEN50130-4, EN61000-6-3, EN55022 Class B, FCC Part 15 Class B
IP ProtectionIP67
Package Dimensions [L × W × H]62 × 20.2 × 22 cm (24.41 × 7.92 × 8.66 in)
Dimensions [L × W × H]51.5 × 17.7 × 22.9 cm (20.28 × 6.97 × 9.02 in)
MountingSold separately; wall and pole adapters available
Housing MaterialAluminum housing, ABS sunshade
Heater8 W, electronically controlled, T_ON 20 °C ± 2 °C (68 °F ± 4 °F), T_OFF 23 °C ± 2 °C (73.4 °F ± 4 °F)
ONVIF ComplianceYes. ONVIF Profile S
Window TransmissionAutomatic, based on the window temperature
Energy Consumption30 W PoE, PoE+, Type 2. IEEE 802.3af, IEEE 802.3at/PoE Plus

Technical data

Box contents

  • A700f Advanced Smart thermal camera with housing
  • Extra cable for auxiliary cables
  • Documentation with user name and password to enter the camera's web interface
