Description

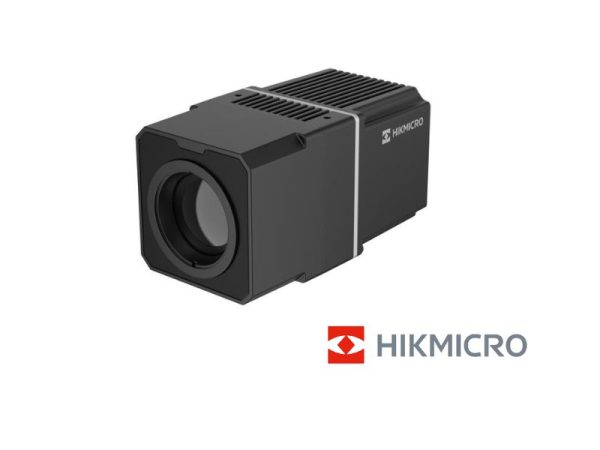

HIKMICRO HM-TD2A37T-15/Q – Fixed thermal camera with semi-automatic focusing
The HIKMICRO HM-TD2A37T-15/Q is a high-performance fixed thermal camera in a box format, designed for continuous industrial monitoring and fire prevention. Equipped with a 384 × 288-pixel (17 μm) VOx sensor and a 15 mm lens with semi-automatic and manual focus, it enables quick and precise alignment during the inspection of critical infrastructure. It offers a wide temperature measurement range from -20 °C to 650 °C, high thermal sensitivity (NETD ≤ 35 mK), and support for intelligent real-time measurement rules and integration into networked systems.
Main features
IR resolution: 384 × 288 pixels (pixel size 17 μm)
Thermal sensitivity (NETD): ≤ 35 mK (@ 25 °C, F# = 1.0)
15 mm lens with semi-automatic (semi-auto) and manual focusing systems
Field of view (FOV): 25.3° × 18.9° (minimum focusing distance 0.5 m)
Temperature measurement range: -20 °C to 150 °C and 0 °C to 650 °C
Measurement accuracy: Max. ±2 °C or ±2%
Measurement rules: Up to 10 simultaneous rules (points, regions, and lines)
Real-time radiometry and compressed infrared video transmission
Compact design for permanent installation in industrial facilities
Common applications
Continuous Temperature Monitoring in Industrial Processes and Electrical Systems
Early Detection of Hot Spots and Fires in Warehouses or Storage Facilities
Fixed Non-Destructive Inspection on Production Lines and Critical Machinery
Integration with VMS/CCTV systems for automated temperature control
Ref: HM-TD2A37T-15/Q
