Description

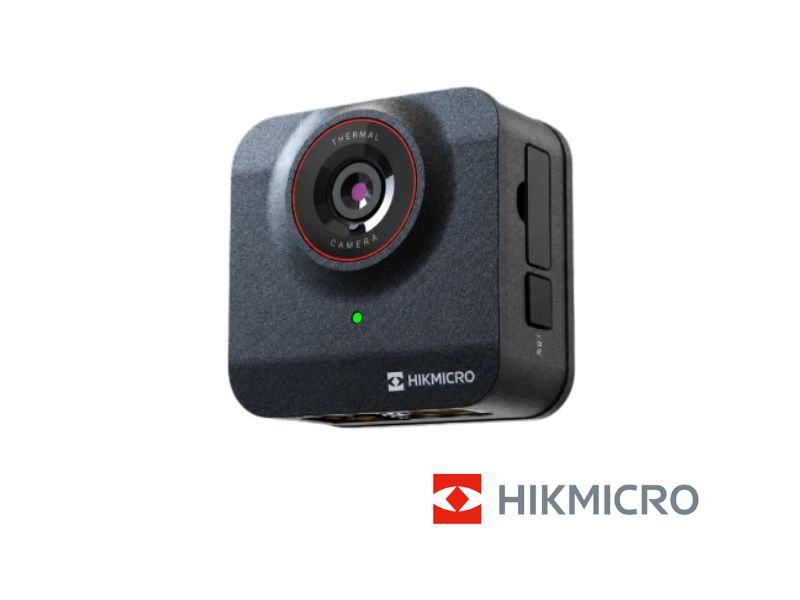

HIKMICRO Cube
The Cube-format thermal camera is specially designed for integration into industrial thermal monitoring systems and critical infrastructure monitoring. Thanks to its ultra-compact size of just 50 × 50 × 26.5 mm and a lightweight design weighing only 82.5 g, this unit is ideal for installation in very confined spaces, electrical panels, or as an OEM component in production machinery.
Equipped with an uncooled VOx detector with a resolution of 256 × 192 pixels (12 µm) and a 2-mm lens with a wide field of view of 90° × 65°, it allows for the monitoring of large areas at short distances, detecting temperature variations early on before a critical failure occurs.
Main features
VOx thermal sensor: 256 × 192 resolution at 12 µm with excellent thermal sensitivity (NETD ≤ 35 mK at F1.0).
Ultra-wide-angle optics: 2-mm lens with a FOV of 90° × 65° and an iFOV of 6 mrad for wide coverage at close range (min. focus distance: 0.2 m).
Precision thermography: Measurement range from -20 °C to 150 °C with an accuracy of ±2 °C (or ±2%) and support for up to 11 thermal rules (points, lines, and areas).
Processing and display: 17 built-in color palettes (White Hot, Rainbow, Ironbow, etc.) and digital zoom at ×2, ×4, and ×8.
Automation and Alarms: Configurable relay output for direct activation of alarms or actuators in the event of overheating.
Ultra-compact design and PoE: Cube size of 50 × 50 × 26.5 mm, IP40 protection, and simplified Power over Ethernet (PoE 802.3af) power supply.
Common applications
Internal Monitoring of Electrical Distribution Panels and Motor Control Centers
Temperature Control in Manufacturing, Assembly, and Automated Inspection Processes
Fire Prevention and Thermal Inspection in Enclosed Areas or Hard-to-Access Spaces
REF: HM-TD3128T/G
