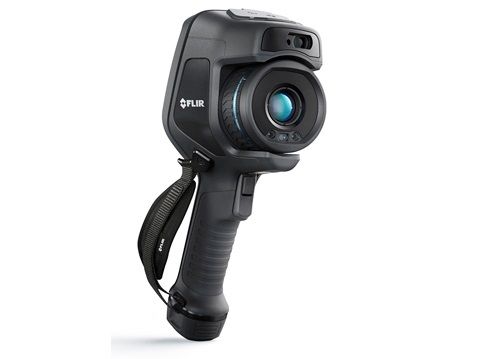

Cámara termográfica FLIR E75

Brand:

Esta cámara está descatalogada.

Este es el modelo que la sustituye:

Descripción

Cámara termográfica FLIR E75
para aplicaciones eléctricas, mecánicas y edificación

FLIR ha rediseñado completamente las cámaras térmicas de la serie Exx para ofrecer un rendimiento, una resolución y una sensibilidad inigualables en una cámara termográfica portátil de este formato. Cuenta con numerosas funcionalidades útiles para encontrar puntos calientes, detectar los primeros signos de deficiencias en los edificios, solucionar problemas en sistemas eléctricos y mecánicos, y evitar otros problemas antes de que provoquen daños graves.

Prestaciones de la FLIR E75

Visión clara con cualquier ángulo

La pantalla LCD nítida de 4” con ángulo de visión de 160° de gran luminosidad.

Calibración de alta temperatura

La cámara de infrarrojos ofrece amplios rangos de medición (de -20 a 120 °C, de 0 a 650 °C y de 300 °C a 1000 °C).

Interfaz y navegación intuitivas

La pantalla táctil capacitiva y los cómodos botones de menú facilitan la navegación y el control de la cámara térmica con una sola mano.

Mejora superior de escenas MSX®

Incorpora la última versión de la tecnología patentada MSX®, que importa en tiempo real las aristas del espectro visible capturados con la cámara fotográfica a la imagen termográfica, logrando una mejor comprensión de la imagen térmica.

Garantía 2-10 líder en el sector

FLIR respalda la serie Exx con la mejor garantía del mercado, para la batería, el cuerpo y el detector.

Ref. 78501-0101, 78502-0101, 78503-0101, 78504-0101, 78507-0101; 78505-0101, 78506-0101

FLIR E75 - Prestaciones

FLIR E75 para edificación

FLIR E75 para aplicaciones eléctricas y mecánicas

Ficha Técnica

Imaging and optical data

(para lente 24º)
Infrared resolution
320 × 240 pixels
UltraMax (super-resolution)
Yes
NETD
<40 mK @ +30°C (+86°F)
Field of view
24° × 18°
Minimum focus distance
0.15 m (0.49 ft.)
Minimum focus distance with MSX
0.5 m (1.64 ft.)
Focal length
17 mm (0.67 in.)
Spatial resolution (IFOV)
1.31 mrad/pixel
Available extra lenses
  • 42° (AutoCal)
  • 14° (AutoCal)
Lens identification
Automatic
f number
1.3
Image frequency
30 Hz
Focus
  • Continuous LDM
  • One-shot LDM
  • One-shot contrast
  • Manual
Field of view match
Yes
Digital zoom
1–4× continuous

Detector data

Focal plane array/spectral range
Uncooled microbolometer/7.5–14 µm
Detector pitch
17 µm

Image presentation

Resolution
640 × 480 pixels (VGA)
Surface brightness (cd/m2)
400
Screen size
4 in.
Viewing angle
80°
Color depth (bits)
24
Aspect ratio
4:3
Auto-rotation
Yes
Touchscreen
Optically bonded PCAP
Display technology
IPS
Cover glass material
Dragontrail®
Programmable buttons
1
Viewfinder
No
Image adjustment
  • Automatic
  • Automatic maximum
  • Automatic minimum
  • Manual

Image presentation modes

Infrared image
Yes
Visual image
Yes
Thermal fusion
No
MSX
Yes
Picture in Picture
Resizable and movable
Gallery
Yes

Measurement

Camera temperature range
  • –20 to 120°C (–4 to 248°F)
  • 0 to 650°C (32 to 1202°F)
  • Optional 300 to 1000°C (572 to 1832°F)
Object temperature range and accuracy (for ambient temp. 15 to 35°C (59 to 95°F)
  • Range –20 to 120°C (–4 to 248°F):
    • –20 to 100°C (–4 to 212°F): ±2°C (±3.6°F)
    • 100 to 120°C (212 to 248°F): ±2%
  • Range 0 to 650°C (32 to 1202°F):
    • 0 to 100°C (32 to 212°F): ±2°C (±3.6°F)
    • 100 to 650°C (212 to 1202°F): ±2%
  • Optional Range 300 to 1000°C (572 to 1832°F): ±2%

Screening mode

Sampling average mode
Recommended temperature range: 30 to 45°C (86 to 113°F) in stable room temperature
Accuracy (drift): ±0.3°C (±0.5°F)1

Measurement analysis

Spotmeter
3 in live mode
Area
1 in live mode
Automatic hot/cold detection
Auto-maximum/minimum markers within area
Measurement presets
  • No measurements
  • Center spot
  • Hot spot
  • Cold spot
  • User preset 1
  • User preset 2
Difference temperature
Yes
Reference temperature
Yes
Emissivity correction
Yes: variable from 0.01 to 1.0 or selected from materials list
Measurement corrections
Yes
External optics/windows correction
Yes

Alarm

Color alarm (isotherm)
  • Above
  • Below
  • Interval
  • Condensation (moisture/humidity/dewpoint)
  • Insulation
Measurement function alarm
Audible/visual alarms (above/below) on any selected measurement function

Set-up

Color palettes
  • Iron
  • Gray
  • Rainbow
  • Arctic
  • Lava
  • Rainbow HC
Setup commands
Local adaptation of units, language, date and time formats
Languages
21

Service functions

Camera software update
Using USB cable or SD card

Storage of images

Storage media
Removable memory; SD card (8 GB)
Time lapse (periodic image storage)
No
Remote control operation
Using USB cable or Wi-Fi
Image file format
Standard JPEG, measurement data included. Infrared-only mode

Image annotations

Voice
60 seconds built-in microphone and speaker (and via Bluetooth) on still images and video
Text
Text from predefined list or soft keyboard on touchscreen
Visual image annotation
Yes
Image sketch
Yes: on infrared images only
Sketch
From touchscreen
METERLiNK
Wireless connection (Bluetooth) to:
FLIR meters with METERLiNK
Compass
Yes
Laser distance meter information
Yes
Area measurement information
No
GPS
Yes: location data automatically added to every still image and the first frame in video from built-in GPS

Video recording in camera

Radiometric infrared-video recording
RTRR (.csq)
Non-radiometric infrared-video recording
H.264 to memory card
Visual video recording
H.264 to memory card

Video streaming

Radiometric infrared–video streaming (compressed)
Over UVC
Non-radiometric video streaming (compressed: IR, MSX, visual, Picture in Picture)
  • H.264 (AVC) over RTSP (Wi-Fi)
  • MPEG4 over RTSP (Wi-Fi)
  • MJPEG over UVC and RTSP (Wi-Fi)
Visual video streaming
Yes

Digital camera

Resolution
5 MP with LED light
Focus
Fixed
Field of view
53° × 41°
Video lamp
Built-in LED light

Laser pointer

Laser alignment
Position is automatically displayed on the infrared image
Laser distance meter
Activated by a dedicated button
Laser
Class 2, 0.05–40 m (1.6–131 ft.) ±1% of measured distance

Data communication interfaces

Interfaces
USB 2.0, Bluetooth, Wi-Fi, DisplayPort
METERLiNK/Bluetooth
Communication with headset and external sensors
Wi-Fi
Peer to peer (ad hoc) or infrastructure (network)
Audio
Microphone and speaker for voice annotation of images
USB
USB Type-C: data transfer/video/power
USB standard
USB 2.0 High Speed
Video out
DisplayPort
Video connector type
DisplayPort over USB Type-C

Radio

Operating frequency
Bluetooth + EDR/LE: 2402–2480 MHz
WLAN 2.4 GHz: 2412–2462 MHz
WLAN 5 GHz: 5150–5350 MHz (DFS: only slave mode)
Note that frequency band 5150–5350 MHz is for indoor use only, see national regulations.
RF output (EIRP)
Bluetooth + EDR/LE: < 10 dBm
WLAN: < 17 dBm
Antenna
Integrated PIFA antenna (gain: maximum 1.4 dBi)

Power system

Battery type
Rechargeable Li-ion battery
Battery voltage
3.6 V
Battery operating time
> 2.5 hours at 25°C (68°F) and typical use
Charging system
In camera (AC adapter or 12 V from a vehicle) or two-bay charger
Charging time (using two-bay charger)
2.5 hours to 90% capacity with charging status indicated by LEDs
Charging temperature
0°C to +‎45°C (+‎32°F to +‎113°F)‎, except for the Korean market: +10°C to +‎45°C (+‎50°F to +‎113°F)‎
External power operation
AC adapter 90–260 V AC, 50/60 Hz, or 12 V from a vehicle (cable with standard plug—optional)
Power management
Automatic shut-down and sleep mode

Environmental data

Operating temperature range
–15 to +50°C (5–122°F)
Storage temperature range
–40 to +70°C (–40 to +158°F)
Humidity (operating and storage)
IEC 60068-2-30/24 hours/95% relative humidity 25–40°C (77–104°F)/two cycles
EMC
  • ETSI EN 301 489-1 (radio)
  • ETSI EN 301 489-17
  • EN 61000-6-2 (immunity)
  • EN 61000-6-3 (emission)
  • FCC 47 CFR Part 15 Class B (emission)
Radio spectrum
  • ETSI EN 300 328
  • FCC Part 15.249
  • RSS-247 Issue 2
Encapsulation
IP 54 (IEC 60529)
Shock
25g (IEC 60068-2-27)
Vibration
2g (IEC 60068-2-6)
Drop
Designed for 2 m (6.6 ft.)
Safety
EN/UL/CSA/PSE 60950-1

Physical data

Weight (including battery)
1 kg (2.2 lb.)
Size (L × W × H)
278.4 × 116.1 × 113.1 mm (11.0 × 4.6 × 4.4 in.)
Battery weight
140 g (4.9 oz.)
Battery size (L × W × H)
150 × 46 × 55 mm (5.9 × 1.8 × 2.2 in.)
Tripod mounting
UNC ¼″-20
Housing material
PCABS with TPE, magnesium
Color
Black

Warranty and service

Warranty

Shipping information

Packaging, type
Cardboard box
Packaging, contents
  • Accessory Box I:
    • Power supply for battery charger
    • Power supply,‎ 15 W/3 A
    • Printed documentation
    • SD card (8 GB)‎
    • USB 2.0 A to USB Type-C cable,‎ 1.0 m
    • USB Type-C to HDMI adapter,‎ standard specification UH311
    • USB Type-C to USB Type-C cable (USB 2.0 standard)‎,‎ 1.0 m
  • Accessory box II:
    • Accessory box III:
      • Front protection fastener
      • Hand strap bracket, left
      • Hand strap bracket, right
      • Screws
      • Torx T10 wrench
    • Carabiner hook
    • Front protection
    • Hand strap
    • Lanyard strap,‎ camera
    • Lens cap strap
    • Wrist strap
  • Battery (2 ea)‎
  • Battery charger
  • Hard transport case
  • Infrared camera with lens
  • Lens cap,‎ front
  • Lens cap,‎ front and rear (only for extra lenses)
Packaging, weight
5.8 kg (12.8 lb.)
Packaging, size
500 × 190 × 370 mm (19.7 × 7.5 × 14.6 in.)
EAN-13
4743254002654
UPC-12
845188013882
Country of origin
Estonia

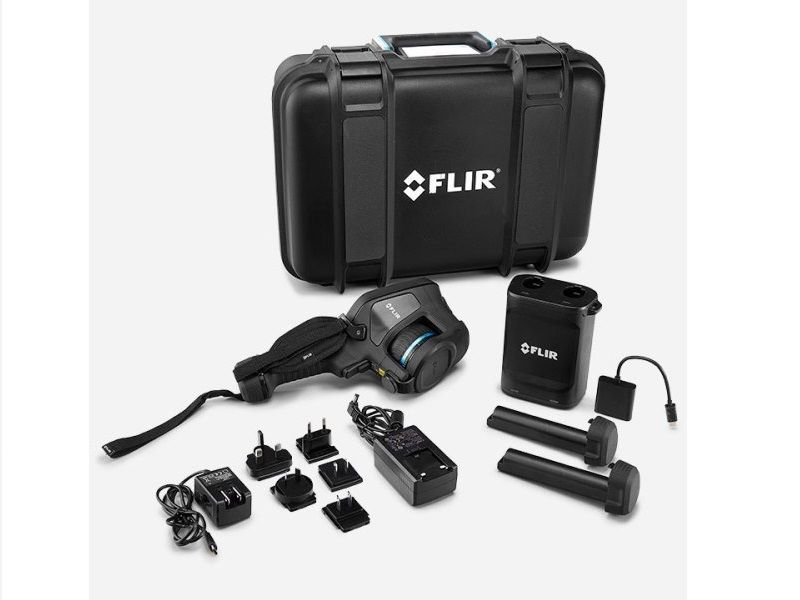

Contenido de la caja

  • Cámara infrarroja FLIR E75 con lente de 14º, 24º y/o 42º
  • Batería (2 unidades)
  • Cargador de batería con fuente de alimentación
  • Maletín rígido de transporte
  • Lente frontal y protección de la luz
  • Correas (mano y muñeca)
  • Correas
  • Tapas de lentes (frontal y trasera)
  • Paño de limpieza de lente
  • Fuente de alimentación de 15 W/3 A
  • Documentación impresa
  • Tarjeta SD de 8 GB
  • Destornillador Torx
  • Cables (de USB 2.0 A a USB tipo C, de USB tipo C a HDMI, de USB tipo C a USB tipo C)
