Cámara termográfica FLIR C3 WiFi

Brand:

Esta cámara está descatalogada.

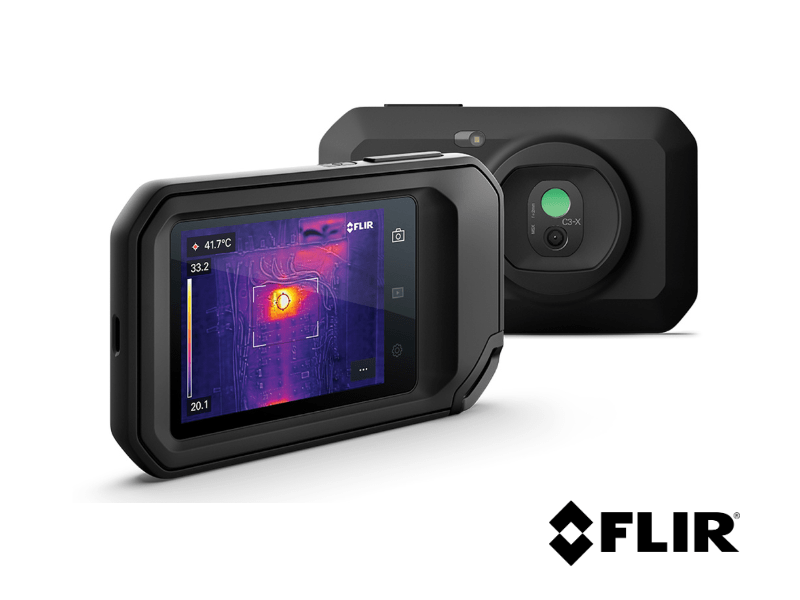

Este es el modelo que la sustituye:

Descripción

FLIR C3 WIFI cámara térmica compacta y potente

La cámara de infrarrojos FLIR C3 es una completa cámara térmica de bolsillo diseñada para convertirse en su herramienta para llevar a inspecciones de edificios, mantenimiento de instalaciones, climatización o reparaciones eléctricas.
Llévela encima para estar siempre listo para encontrar fusibles calientes, fugas de aire frío, problemas de fontanería, etc.

Prestaciones cámara termográfica FLIR C3

  • Su diseño ligero y delgado perfil se ajusta cómodamente en los bolsillos de la ropa de trabajo.
  • Pantalla táctil brillante e intuitiva de 3” con función de orientación automática para una sencilla visualización.
  • Con wifi para compartir al instante imágenes par a par.
  • El cuadro de medición de área mide el punto más caliente y el más frío (máx./mín.).
  • Las termografías mejoradas con la tecnología MSX® proporcionan detalles asombrosos que le ayudan a identificar más fácilmente las zonas problemáticas.
  • Las imágenes radiométricas almacenan 4800 píxeles capaces de captar medidas de temperaturas de entre -10 y 150 °C.
  • La alta sensibilidad térmica detecta diferencias sutiles de temperatura comunes en aplicaciones para edificios.
  • Software profesional de creación de informes FLIR Tools incluido: estándar industrial en postanálisis de termografía.
  • Transmisión de vídeo mediante FLIR Tools, una función que normalmente no está disponible en los sistemas termográficos de bajo coste.
  • Garantía exclusiva 2-10 de FLIR, que cubre las piezas y la mano de obra durante dos años y el detector durante diez años.

Ref. 72003-0303

Introducción a la cámara termográfica FLIR C3

FLIR C2 y C3 - Cámaras térmicas de bolsillo de altas prestaciones

Cámara termográfica FLIR C2 y FLIR C3 - Funciones completas en tu bolsillo

Ficha Técnica

Detector data

Focal Plane Array
Uncooled microbolometer
Spectral range
7.5–14 µm
Detector pitch
17 µm
IR sensor size
80 × 60

Image presentation

Display (color)
  • 3.0 in.
  • 320 × 240 pixels
Display, aspect ratio
4:3
Auto orientation
Yes
Touch screen
Yes, capacitive
Image adjustment (alignment calibration)
Yes

Image presentation modes

Infrared image
Yes
Visual image
Yes
MSX
Yes
Gallery
Yes
Picture in Picture
IR area on visual image

Measurement

Camera temperature range
Object temperature range
Accuracy — for ambient temperature +25°C (+77°F) nominal.
–10 to +150°C (+14 to +302°F)
–10 to +100°C (+14 to +212°F)
±2°C (±3.6°F)
+100 to +150°C (+212 to +302°F)
±2%

Measurement analysis

Spotmeter
On/off
Area
Box with max./min.
Emissivity correction
Yes; matt/semi-matt/semi-glossy + custom value
Measurements correction
  • Emissivity
  • Reflected apparent temperature

Set-up

Color palettes
  • Iron
  • Rainbow
  • Rainbow HC
  • Gray
Set-up commands
Local adaptation of units, language, date and time formats
Languages
Arabic, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Simpl. Chinese, Spanish, Swedish, Trad. Chinese, Turkish.

Lamp

Output power
0.85 W
Field of view
60°

Service functions

Camera software update
Using FLIR Tools

Storage of images

Storage media
Internal memory store at least 500 sets of images
Image file format
  • Standard JPEG
  • 14-bit measurement data included

Video streaming

Non-radiometric IR video streaming
Yes
Visual video streaming
Yes

Digital camera

Digital camera
640 × 480 pixels
Digital camera, focus
Fixed focus

Data communication interfaces

Wi-Fi
Peer-to-peer (ad hoc)‎ or infrastructure (network)‎
USB, connector type
USB Micro-B: Data transfer to and from PC
USB, standard
USB 2.0

Radio

Wi-Fi
  • Standard: 802.11 b/g/n
  • Frequency range:
    • 2400–2480 MHz
    • 5150–5260 MHz
  • Max. output power: 15 dBm

Power system

Battery type
Rechargeable Li-ion polymer battery
Battery voltage
3.7 V
Battery operating time
2 h
Charging system
Charged inside the camera
Charging time
1.5 h
External power operation
  • AC adapter, 90–260 VAC input
  • 5 V output to camera
Power management
Automatic shut-down

Environmental data

Operating temperature range
–10°C to +50°C (14 to 122°F)
Storage temperature range
–40°C to +70°C (–40 to 158°F)
Humidity (operating and storage)
IEC 60068-2-30/24 h 95% relative humidity +25°C to +40°C (+77°F to +104°F) / 2 cycles
Relative humidity
95% relative humidity +25°C to +40°C (+77°F to +104°F) non condensing
EMC
  • WEEE 2012/19/EC
  • RoHs 2011/65/EC
  • C-Tick
  • EN 61000-6-3
  • EN 61000-6-2
  • FCC 47 CFR Part 15 Class B
Radio spectrum
  • ETSI EN 300 328
  • FCC 47 CSR Part 15
  • RSS-247 Issue 2
Magnetic fields
EN 61000-4-8
Battery regulations
UL 1642
Encapsulation
Camera housing and lens: IP 40 (IEC 60529)
Shock
25 g (IEC 60068-2-27)
Vibration
2 g (IEC 60068-2-6)
Drop
2 m (6.6 ft.)‎

Physical data

Weight (incl. Battery)
0.13 kg (0.29 lb.)
Size (L × W × H)
125 × 80 × 24 mm (4.9 × 3.1 × 0.94 in.)
Tripod mounting
No
Housing material
  • PC and ABS, partially covered with TPE
  • Aluminum
Color
Black and gray

Shipping information

Packaging, type
Cardboard box
List of contents
  • Infrared camera
  • Lanyard
  • Pouch
  • Power supply/charger with EU, UK, US, CN and Australian plugs
  • Printed documentation
  • Tripod mount
  • USB cable
Packaging, weight
TBD
Packaging, size
175 × 110 × 105 mm (6.9 × 4.3 × 4.1 in.)
EAN-13
4743254002845
UPC-12
845188014094
Country of origin
Estonia

Contenido de la caja

  • Cámara termográfica FLIR C3
  • Correa
  • Funda
  • Fuente de alimentación
  • Cable USB
  • Adaptador de trípode
  • Guía inicio rápido impresa
