Descripción

Cámara térmica FLIR A615

Aplicaciones automatizadas de monitorización 24/7

Cámara de infrarrojos FLIR A615 para monitorización 24/7 de instalaciones críticas

La cámara termográfica FLIR A615 es  fácilmente controlable, asequible y compacta para la supervisión de instalaciones críticas, el control de procesos industriales y la detección temprana de incendios. La cámara térmica FLIR A615 se puede controlar completamente con un PC o se puede integrar de manera sencilla con software de visión artificial de terceras partes, como National Instruments, Cognex, Matrox, MVtec y Stemmer Imaging.

Prestaciones cámara termográfica FLIR A615

Calidad de imagen extraordinaria

La FLIR A615 dispone de un detector de 640×480 (307.200) píxeles que permite detectar diferencias de temperatura de tan solo 0,05ºC.

Salida lineal de temperatura de 16 bits

Capte mediciones de temperatura sin contacto con software de terceras partes gracias a la salida lineal de temperatura de 16 bits.

Streaming de alta velocidad

Transmita imágenes radiométricas a full-frame a 50fps o alcance hasta los 200fps mediante windowing.

Ref. 55001-0101, 55001-0102, 55001-0103, 55001-0104, 55001-0105

FLIR A615 - Introducción a la cámara termográfica

FLIR A615 - Cámara térmica para automatización y seguridad industrial

FLIR A615 - Training con Cognex VisionPro

FLIR A615 - Con sistema Pan & Tilt

Ficha Técnica

Imaging and optical data ( Para lente 25º)

IR resolution
640 × 480 pixels
Thermal sensitivity/NETD
< 0.05°C @ +30°C (+86°F) / 50 mK
Field of view (FOV)
25° × 19° (31° diagonal)
Minimum focus distance
0.25 m (0.82 ft.)
Focal length
24.6 mm (0.97 in.)
Spatial resolution (IFOV)
0.68 mrad
Lens identification
Automatic
F-number
1.0
Image frequency
50 Hz (100/200 Hz with windowing)
Focus
Automatic or manual (built in motor)

Detector data

Detector type
Focal plane array (FPA), uncooled microbolometer
Spectral range
7.5–14 µm
Detector pitch
17 µm
Detector time constant
Typical 8 ms

Measurement

Object temperature range
  • –40°C to +150°C (–40°F to +302°F)
  • 100 to +650°C (+212 to +1202°F)
  • 300 to +2000°C (+572 to +3632°F)
Accuracy
±2°C (±3.6°F) or ±2% of reading

Measurement analysis

Atmospheric transmission correction
Automatic, based on inputs for distance, atmospheric temperature and relative humidity
Optics transmission correction
Automatic, based on signals from internal sensors
Emissivity correction
Variable from 0.01 to 1.0
Reflected apparent temperature correction
Automatic, based on input of reflected temperature
External optics/windows correction
Automatic, based on input of optics/window transmission and temperature
Measurement corrections
Global object parameters

USB

USB
  • Control and image
USB, standard
USB 2 HS
USB, connector type
  • USB Mini-B
USB, communication
TCP/IP socket-based FLIR proprietary
USB, image streaming
16-bit 640 × 480 pixels @ 25 Hz
  • Signal linear
  • Temperature linear
  • Radiometric
USB, protocols
TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, ftp, SMTP, SMB (CIFS), DHCP, MDNS (Bonjour), uPnP

Ethernet

Ethernet
Control and image
Ethernet, type
Gigabit Ethernet
Ethernet, standard
IEEE 802.3
Ethernet, connector type
RJ-45
Ethernet, communication
TCP/IP socket-based FLIR proprietary and GenICam protocol
Ethernet, image streaming
16-bit 640 × 480 pixels @ 50 Hz
16-bit 640 × 240 pixels @ 100 Hz
16-bit 640 × 120 pixels @ 200 Hz
  • Signal linear
  • Temperature linear
  • Radiometric
GigE Vision and GenICam compatible
Ethernet, protocols
TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, ftp, SMTP, SMB (CIFS), DHCP, MDNS (Bonjour), uPnP

Digital input/output

Digital input, purpose
Image tag (start, stop, general), Image flow control, (stream on/off), Input ext. device (programmatically read)
Digital input
2 opto-isolated, 0–1.5 V = low, 3–25 V = high
Digital output, purpose
Output to ext. device (programmatically set)
Digital output
2 opto-isolated, ON = supply (max. 100 mA), OFF = open
Digital I/O, isolation voltage
500 VRMS
Digital I/O, supply voltage
6–24 VDC, max. 200 mA
Digital I/O, connector type
6-pole jackable screw terminal

Power system

External power operation
12/24 VDC, 24 W absolute max.
External power, connector type
2-pole jackable screw terminal
Voltage
Allowed range 10–30 VDC

Environmental data

Operating temperature range
–15°C to +50°C (+5°F to +122°F)
Storage temperature range
–40°C to +70°C (–40°F to +158°F)
Humidity (operating and storage)
IEC 60068-2-30/24 h 95% relative humidity +25°C to +40°C (+77°F to +104°F)
EMC
  • EN 61000-6-2:2001 (Immunity)
  • EN 61000-6-3:2001 (Emission)
  • FCC 47 CFR Part 15 Class B (Emission)
Encapsulation
IP 30 (IEC 60529)
Shock
25 g (IEC 60068-2-27)
Vibration
2 g (IEC 60068-2-6)

Physical data

Weight
0.90 kg (1.98 lb.)
Camera size (L × W × H)
216× 73 × 75 mm (8.5 × 2.9 × 3.0 in.)
Camera size, excl. lens (L × W × H)
203× 73 × 75 mm (8.0 × 2.9 × 3.0 in.)
Tripod mounting
UNC ¼”-20 (on three sides)
Base mounting
2 × M4 thread mounting holes (on three sides)
Housing material
Aluminum
Comments to physical data
Outline dimensional drawings and STEP files can be found at http://support.flir.com

Shipping information

Packaging, type
Cardboard box
List of contents
  • Infrared camera with lens
  • Ethernet cable
  • Mains cable
  • Power cable, pig-tailed
  • Power supply
  • Printed
  • Printed documentation
  • USB cable
  • Utility CD-ROM
Packaging, weight
Packaging, size
360 × 180 × 550 mm (14.2 × 7.1 × 21.7 in.)
EAN-13
7332558003251
UPC-12
845188002732
Country of origin
Sweden

Contenido de la caja

  • Cámara termográfica FLIR A615 con lente de 7º, 15º, 25º, 45º o 80º
  • Cable Ethernet

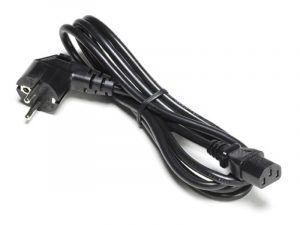

  • Cable de la red eléctrica
  • Cable de alimentación, Pigtail
  • Fuente de alimentación
  • Cable USB
  • Documentación impresa
